EN ISO 20344 Footwear Testing Equipment 5 To 150 R/Min Adjustable
| MOQ: | 1 unit |
| Price: | Negoitable |
| Standard Packaging: | plywood case |
| Delivery Period: | 7-10 working days |
| Payment Method: | T/T, Western Union, MoneyGram |
| Supply Capacity: | 5-10 pcs / month |
Detail Information
Place of Origin
China
Brand Name
SKYLINE
Certification
CE
Model Number
SL-L105
SKYLINE:
EN ISO 20344 Sole Flexing Tester
Test Number:
Three Outsole
Speed:
(5 To 150)r/min Adjustable
Flexing Degree:
（90±2)º
Weight:
118kg
Standards:
GB/T2099 ,EN ISO 20344,EN ISO17707,EN-344 And SATRA TM161
Highlight:
EN ISO 20344 Footwear Testing Equipment
,EN ISO 20344 Sole Flexing Tester
,Footwear Testing Equipment 150 R/Min
Product Description

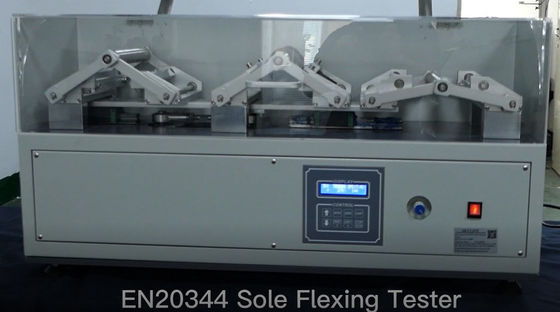

EN ISO 20344 Footwear Testing Equipment Sole Flexing Tester
Use:
Install the sole test piece on the EN sole flexing testing machine, so that the incision falls just above the center of the rotating shaft of the EN sole flexing testing machine, and drive the test piece on the shaft through the machine to stretch flexing (90±2)º .After a certain number of tests, measure the length of the incision of the test piece, and evaluate the torsion resistance of the test sole by the growth rate of the incision.
Technical parameters
| Test number | Three outsole can be tested at the same time |
| Flexing degree | (90±2)º |
| Speed | (5 to 150)r/min adjustable |
| Volume | 1000*300*530mm |
| Diameter of flexing shaft | 30mm |
| Weight | 118kg |
| Power | 190w |
| Power supply | AC220V,10A |
Standards
GB/T2099 ,EN ISO 20344,EN ISO17707,EN-344 and SATRA TM161
Parts list
1 cutter, 1 power cord, 1 wrench and 1 manual(In English).
Video: https://youtu.be/FR_nB_fKfoc
Catalogue-SL-L105 EN Sole Flexing Tester.pdf
