EN ISO 20344 Footwear Testing Equipment 5 To 150 R/Min Adjustable

Name: EN ISO 20344 Footwear Testing Equipment 5 To 150 R/Min Adjustable
Brand: SKYLINE INSTRUMENTS CO.,LTD
SKU: SL-L105
Price: Negotiable USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: SKYLINE

Certification: CE

Model Number: SL-L105

Payment & Shipping Terms

Minimum Order Quantity: 1 unit

Price: Negoitable

Packaging Details: plywood case

Delivery Time: 7-10 working days

Payment Terms: T/T, Western Union, MoneyGram

Supply Ability: 5-10 pcs / month

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                EN ISO 20344 Footwear Testing Equipment, EN ISO 20344 Sole Flexing Tester, Footwear Testing Equipment 150 R/Min


SKYLINE:	EN ISO 20344 Sole Flexing Tester	Test Number:	Three Outsole
Speed:	(5 To 150)r/min Adjustable	Flexing Degree:	（90±2)º
Weight:	118kg	Standards:	GB/T2099 ,EN ISO 20344,EN ISO17707,EN-344 And SATRA TM161

SKYLINE:	EN ISO 20344 Sole Flexing Tester
Test Number:	Three Outsole
Speed:	(5 To 150)r/min Adjustable
Flexing Degree:	（90±2)º
Weight:	118kg
Standards:	GB/T2099 ,EN ISO 20344,EN ISO17707,EN-344 And SATRA TM161

Product Description

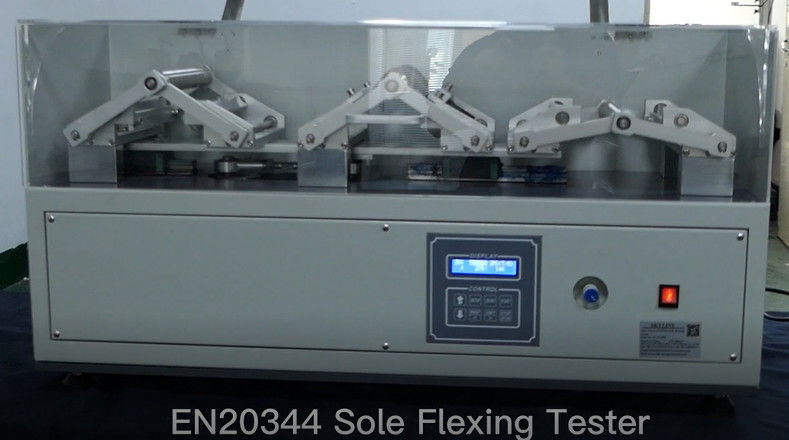

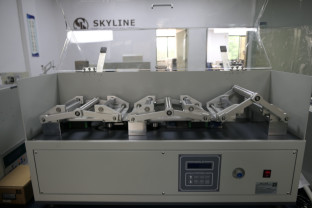

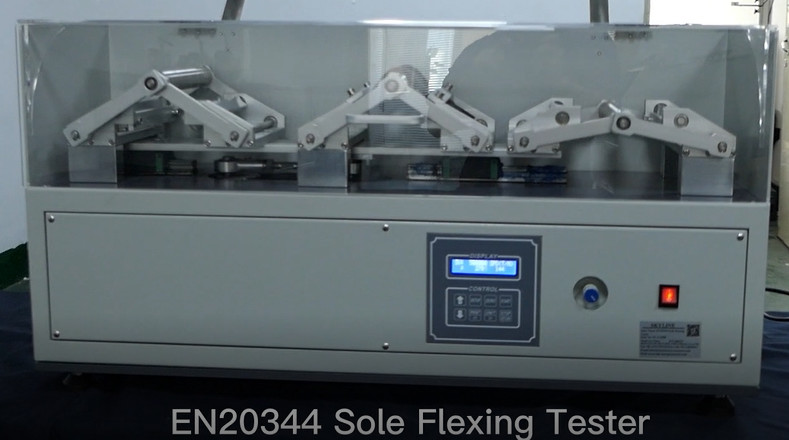

EN ISO 20344 Footwear Testing Equipment Sole Flexing Tester

Use:

Install the sole test piece on the EN sole flexing testing machine, so that the incision falls just above the center of the rotating shaft of the EN sole flexing testing machine, and drive the test piece on the shaft through the machine to stretch flexing (90±2)º .After a certain number of tests, measure the length of the incision of the test piece, and evaluate the torsion resistance of the test sole by the growth rate of the incision.

Technical parameters

Test number	Three outsole can be tested at the same time
Flexing degree	(90±2)º
Speed	(5 to 150)r/min adjustable
Volume	1000300530mm
Diameter of flexing shaft	30mm
Weight	118kg
Power	190w
Power supply	AC220V,10A

Standards

GB/T2099 ,EN ISO 20344,EN ISO17707,EN-344 and SATRA TM161

Parts list

1 cutter, 1 power cord, 1 wrench and 1 manual(In English).

Video: https://youtu.be/FR_nB_fKfoc

Catalogue-SL-L105 EN Sole Flexing Tester.pdf

This method is intended to determine the strength of the bond between the sole and upper at the toe and heel area of the lasted margin of completed footwear. The method is mainly applicable to stuck-on or moulded-on constructions with an extended sole edge.
