Footwear Testing Equipment Insole Back Part Stiffness Testing Machine
| MOQ: | 1 unit |
| Standard Packaging: | plywood case |
| Delivery Period: | 15 working days |
| Payment Method: | Western Union, MoneyGram, T/T |
| Supply Capacity: | 1 pcs/ month |
abrasion resistance tester
,shoe wear tester

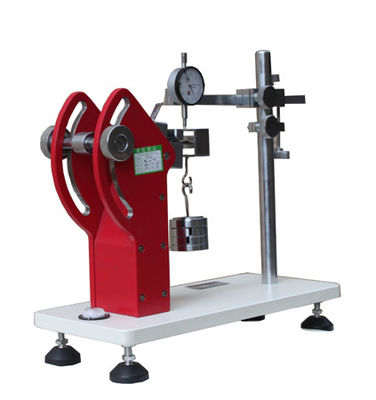

Footwear Testing Equipment Shoes Insole Backpart Stiffness Tester
Product introduction
The insole backpart stiffness tester is used to testing the stiffness in the longitudinal direction of steel shanks used for the reinforcement of the waist region of shoes.The shank is clamped at its heel end and bent as a cantilever beam by masses added to its forward end.
The amount of bending is measured and used to calculate the flexural rigidity of the shank.
Leather stiffness tester machine is used to measure the stiffness in the longitudinal direction of steel shanks used for the reinforcement of the waist region of shoes,the shank is clamped at its heel end and bent as a cantilever beam by masses added to its forward,then calculate the flexural rigidity of the shank.
Specification
| Rotation Angle of Lower Jaw Seat | 30degree |
| Length of Measuring Clip | 60±0.02mm |
| Depth of Clamp for Front End | 12mm |
| Dial Gauge | 0~10mm(min graduation0.01mm ) |
| Dead Weight | 200+/-1g×4 |
| Dimension(W×D×H) | 37x17x35cm |
| Weight | 12kg |
| Standards |
SATRA TM 58 |
SL-L13 Insole Backpart Stiffness Tester.pdf
