Footwear Testing Equipment Insole Back Part Stiffness Testing Machine

Name: Footwear Testing Equipment Insole Back Part Stiffness Testing Machine
Brand: SKYLINE
SKU: SL-L13
Rating: 4.6 (191 reviews)

Product Details

Place of Origin: China

Brand Name: SKYLINE

Certification: CE

Model Number: SL-L13

Payment & Shipping Terms

Minimum Order Quantity: 1 unit

Packaging Details: plywood case

Delivery Time: 15 working days

Payment Terms: Western Union, MoneyGram, T/T

Supply Ability: 1 pcs/ month

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                                                abrasion resistance tester, shoe wear tester


SKYLINE:	Leather Stiffness Tester	Specimen Load:	10N 0.2N
Scale:	0.1 ~ 10mm	Diameter Abrasive Wheel:	150 450L (mm)
Emery Cloth:	60 #, 425 473 1.5 (mm)	Set Rotation:	84 Rotate (about 40M)
Standard:	SATRA TM 58

SKYLINE:	Leather Stiffness Tester
Specimen Load:	10N 0.2N
Scale:	0.1 ~ 10mm
Diameter Abrasive Wheel:	150 450L (mm)
Emery Cloth:	60 #, 425 473 1.5 (mm)
Set Rotation:	84 Rotate (about 40M)
Standard:	SATRA TM 58

Product Description

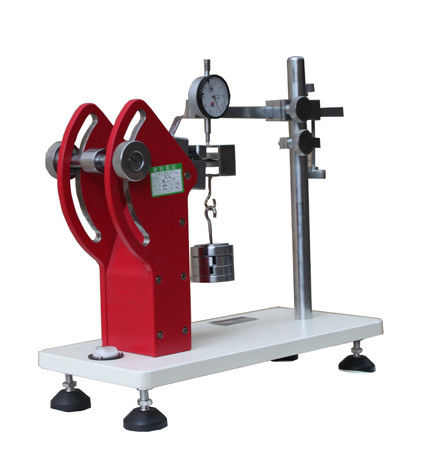

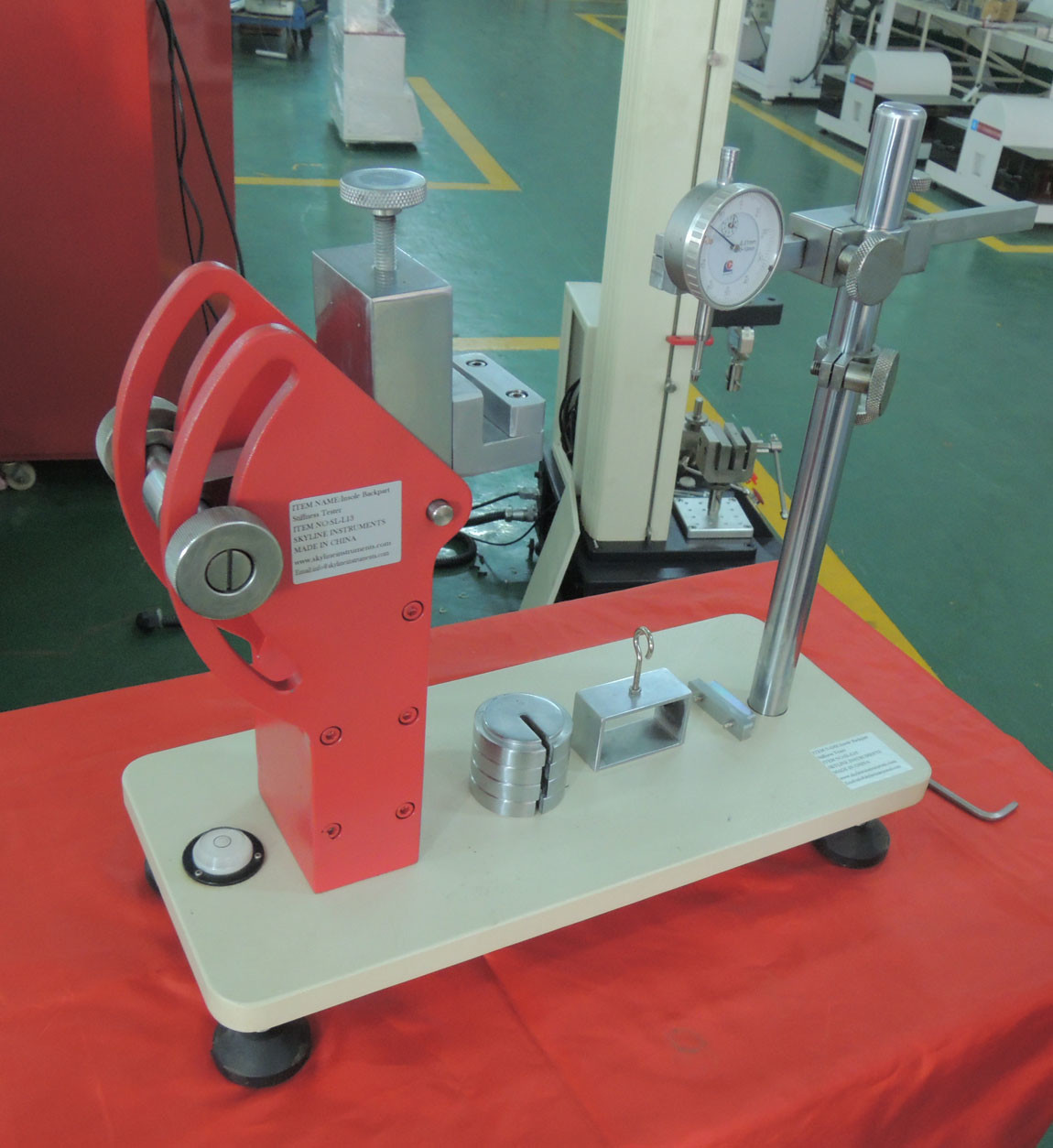

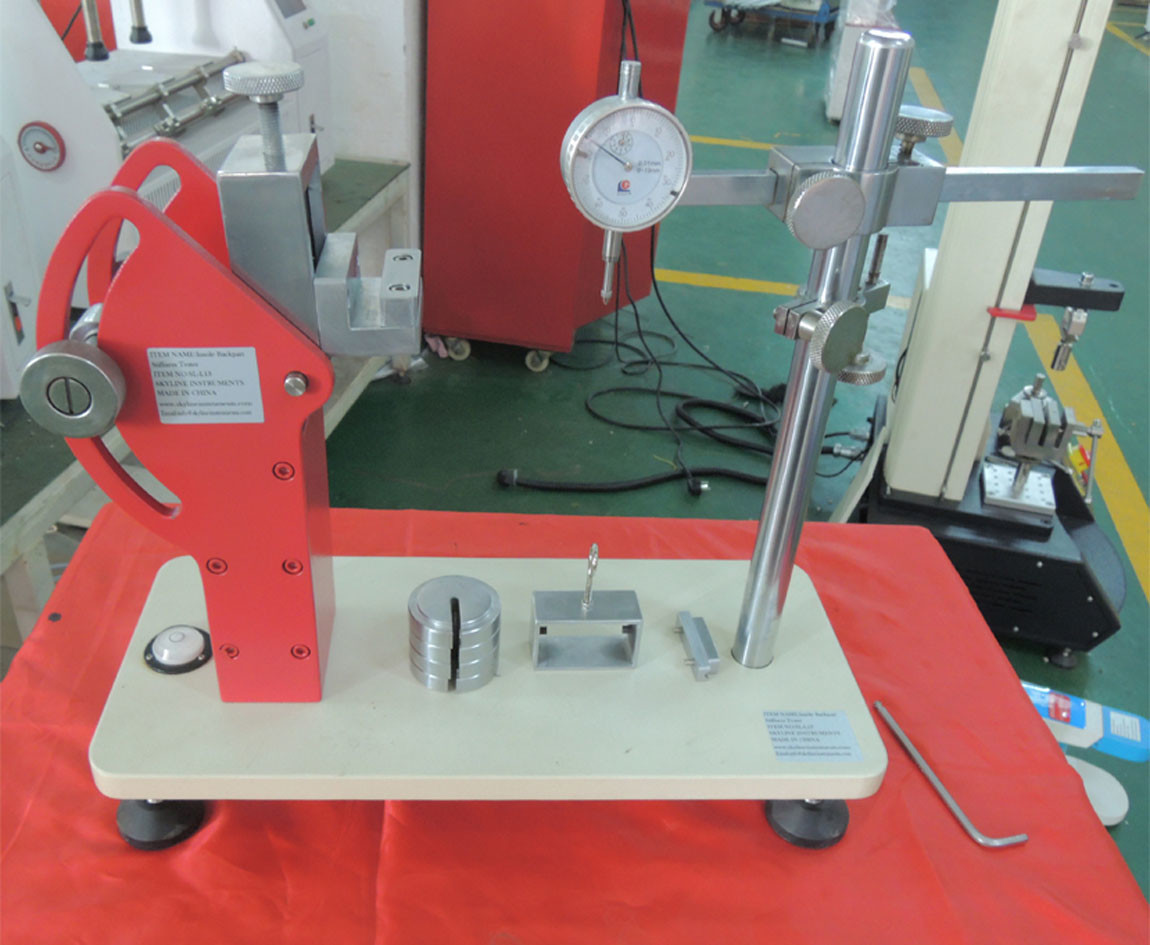

Footwear Testing Equipment Shoes Insole Backpart Stiffness Tester

Product introduction

The insole backpart stiffness tester is used to testing the stiffness in the longitudinal direction of steel shanks used for the reinforcement of the waist region of shoes.The shank is clamped at its heel end and bent as a cantilever beam by masses added to its forward end.

The amount of bending is measured and used to calculate the flexural rigidity of the shank.

Leather stiffness tester machine is used to measure the stiffness in the longitudinal direction of steel shanks used for the reinforcement of the waist region of shoes,the shank is clamped at its heel end and bent as a cantilever beam by masses added to its forward,then calculate the flexural rigidity of the shank.

Specification

Rotation Angle of Lower Jaw Seat	30degree
Length of Measuring Clip	60±0.02mm
Depth of Clamp for Front End	12mm
Dial Gauge	0~10mm(min graduation0.01mm )
Dead Weight	200+/-1g×4
Dimension(W×D×H)	37x17x35cm
Weight	12kg
Standards	SATRA TM 58

SL-L13 Insole Backpart Stiffness Tester.pdf
