Footwear Testing Equipment SATRA TM 20 Heel Continuous Impact Testing Machine

Footwear Testing Equipment SATRA TM 20 Heel Continuous Impact Testing Machine

MOQ: 1 unit
Price: negoitable
Standard Packaging: Plywood case
Delivery Period: 35 work days
Payment Method: Western Union, MoneyGram, T/T
Detail Information
Place of Origin
CN
Brand Name
SKYLINE
Certification
CE
Model Number
SL-L16
Impact Energy:
17.3N~m(12.7ft-lb )
Capacity:
17.3N~m(12.7ft-lb )
Weight:
100kg
Angle:
0~180°
Volume:
65 ×41×115cm
Standards:
BS-5131 SATRA TM20 ISO 19953 QB/T 2863
Highlight:

abrasion resistance tester

,

rub resistance tester

Product Description

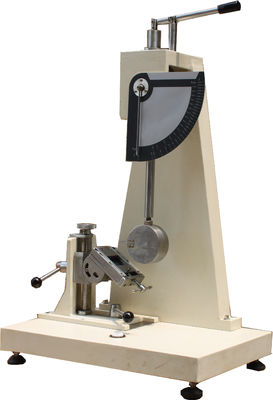

Footwear Testing Equipment SATRA TM20 Heel ContinuousImpact Tester



Product information

Heel continuous impact test machine is used to determine the endurance of heels of ladies’ shoe to receive the occasional

heavy blows during wear. A heel clamped with the tip uppermost and the stem approximately vertical is subjected to

repeated blows by a pendulum striker. The energy of the blows increases successively until the heel fails



Technical parameters

 Capacity  0~18.3J(13.5ft-lb ),minimum reading 0.68J(0.5ft-lb )
 Horizontally Holding Moment of Pendutum  17.3N~m(12.7ft-lb )
 Adjustable Range of Base Clamp  (H )~25mm,angle 0~45degree
 Dimension  65 ×41×115cm
 Weight  100kg
 Standards  BS-5131 ISO 19953 QB/T 2863 SATRA TM20
