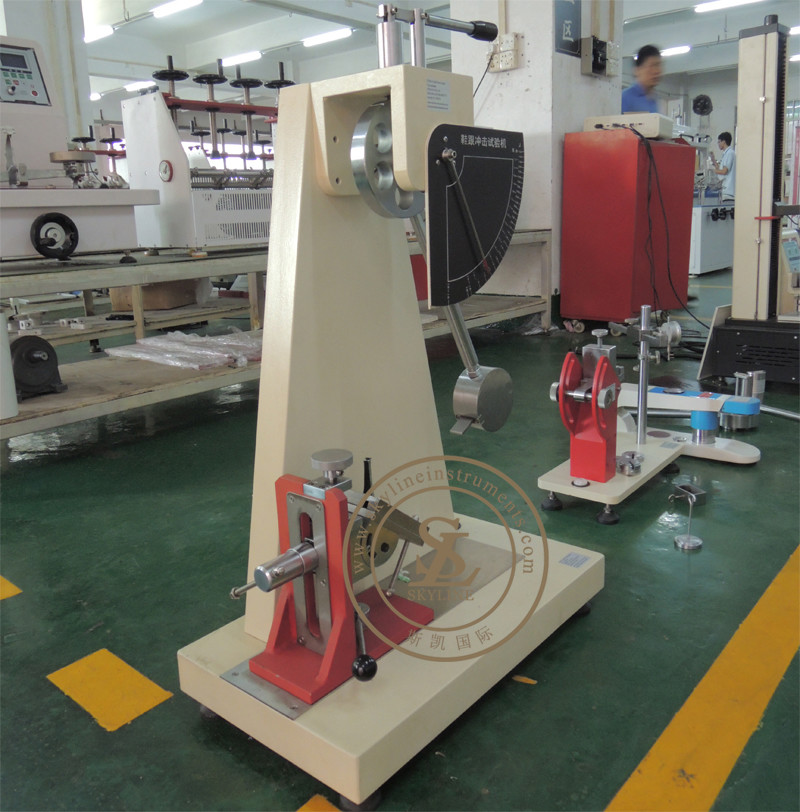

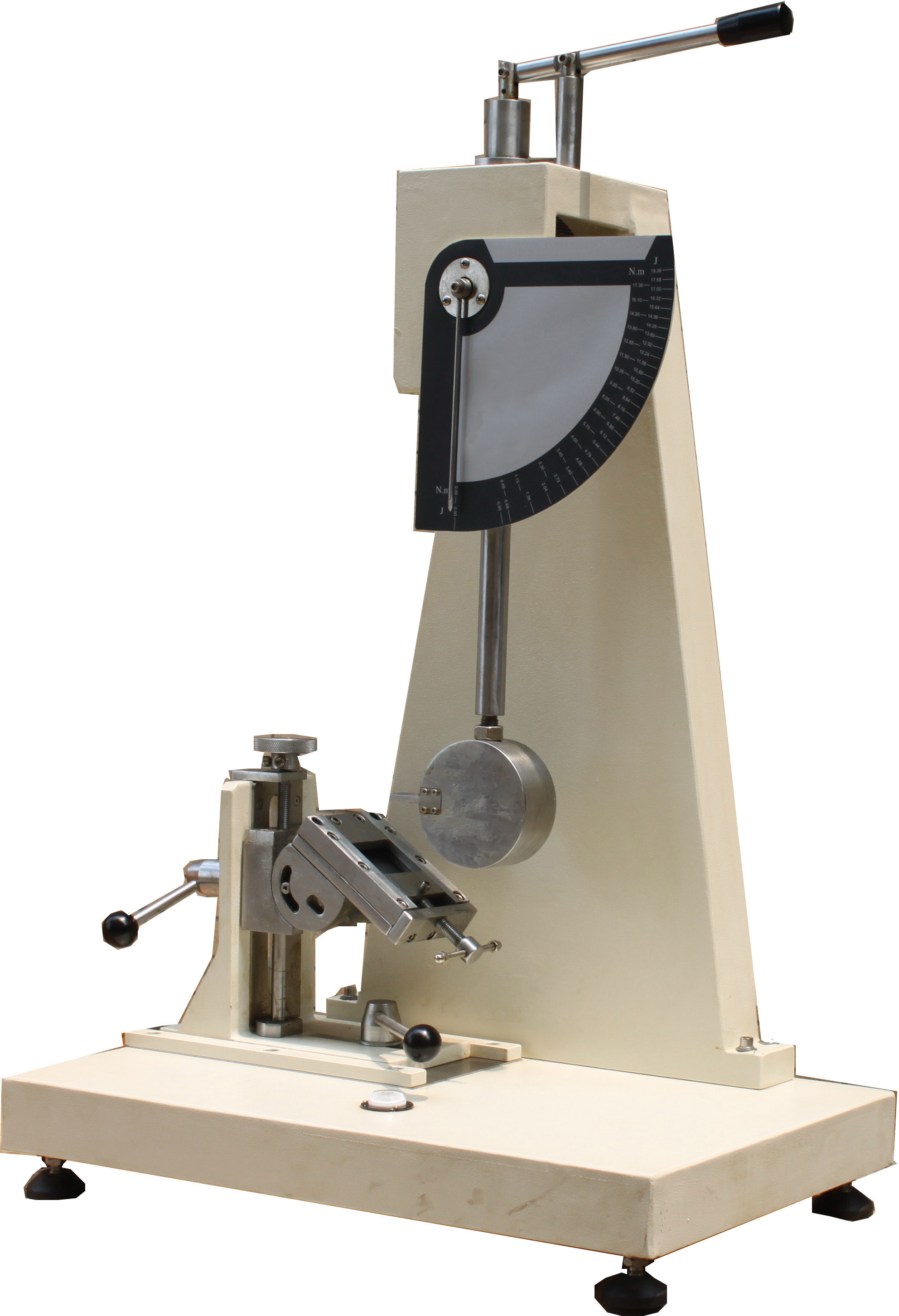

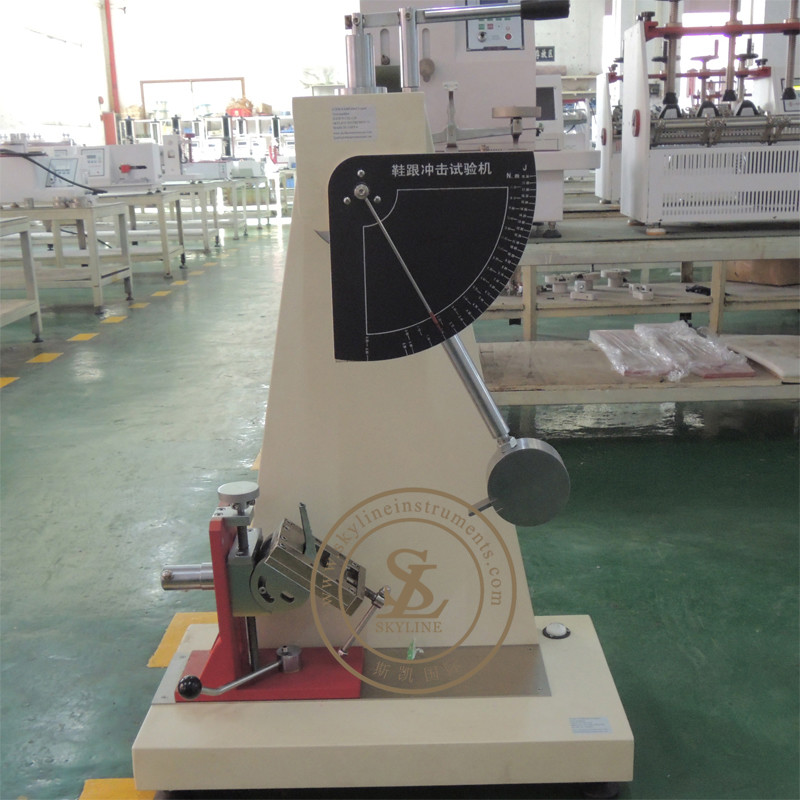

Footwear Testing Equipment SATRA TM 20 Heel Continuous Impact Testing Machine

Name: Footwear Testing Equipment SATRA TM 20 Heel Continuous Impact Testing Machine
Brand: SKYLINE
SKU: SL-L16
Rating: 5 (162 reviews)

Product Details

Place of Origin: CN

Brand Name: SKYLINE

Certification: CE

Model Number: SL-L16

Payment & Shipping Terms

Minimum Order Quantity: 1 unit

Price: negoitable

Packaging Details: Plywood case

Delivery Time: 35 work days

Payment Terms: Western Union, MoneyGram, T/T

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                abrasion resistance tester, rub resistance tester


Impact Energy:	17.3N~m(12.7ft-lb )	Capacity:	17.3N~m(12.7ft-lb )
Weight:	100kg	Angle:	0~180°
Volume:	65 ×41×115cm	Standards:	BS-5131 SATRA TM20 ISO 19953 QB/T 2863

Impact Energy:	17.3N~m(12.7ft-lb )
Capacity:	17.3N~m(12.7ft-lb )
Weight:	100kg
Angle:	0~180°
Volume:	65 ×41×115cm
Standards:	BS-5131 SATRA TM20 ISO 19953 QB/T 2863

Product Description

Footwear Testing Equipment SATRA TM20 Heel ContinuousImpact Tester

Product information

Heel continuous impact test machine is used to determine the endurance of heels of ladies’ shoe to receive the occasional

heavy blows during wear. A heel clamped with the tip uppermost and the stem approximately vertical is subjected to

repeated blows by a pendulum striker. The energy of the blows increases successively until the heel fails

Technical parameters

Capacity	0~18.3J(13.5ft-lb ),minimum reading 0.68J(0.5ft-lb )
Horizontally Holding Moment of Pendutum	17.3N~m(12.7ft-lb )
Adjustable Range of Base Clamp	(H )~25mm,angle 0~45degree
Dimension	65 ×41×115cm
Weight	100kg
Standards	BS-5131 ISO 19953 QB/T 2863 SATRA TM20
