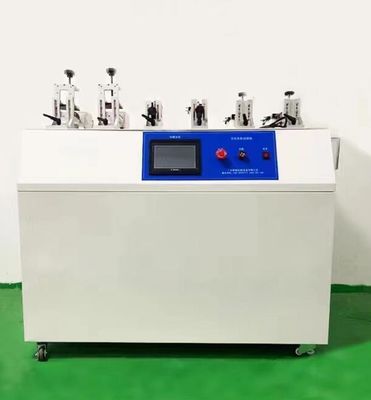

IEC61058-1 Switch Endurance Test Device For Testing Button Switch / Rocker Switch
| MOQ: | 1 unit |
| Price: | Negoitable |
| Standard Packaging: | plywood case |
| Delivery Period: | 15 working days |
| Payment Method: | Western Union, MoneyGram, T/T |
| Supply Capacity: | 1 pcs/ month |
IEC61058-1 Switch Endurance Test Device
,Button Switch Endurance Test Device
,Rocker Switch Endurance Test Device
IEC61058-1 Switch Endurance Test Device For Testing Button Switch/Rocker Switch
IEC61058-1 Switch Endurance Test Device for Testing Button Switch
Introductions
Suitable forpotentiometers, multi-turn potentiometer , adjustable rotating band switch lifetest capacitors and the like of the sample.
Application
Suitable forpotentiometers, multi-turn potentiometer , adjustable rotating band switch lifetest capacitors and the like of the sample.
Technical parameter
Conforms To
IEC61058-1 clause 17.2.3 and 17.2.4
17.2.3 Manual and mechanical conditions
17.2.3.1 The switches are operated by means of its actuating member either manually or by an appropriate apparatus which is arranged to simulate nonThe operating speed for the operating cycles shall be as follows:
For the tests of switches except electronic switches:
a) for slow speed:
- approximately 9°/s for rotary actuations at an angle of operation 45°;
- approximately 18°/s for rotary actuations at an angle of operation >45°;
- approximately 20 mm/s for linear actuations.
