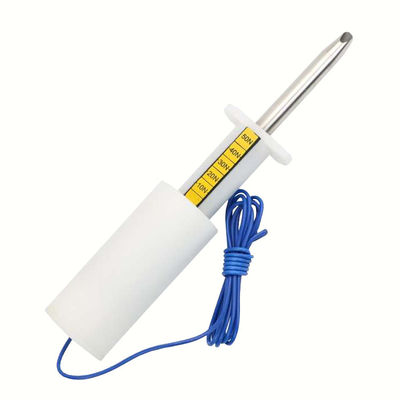

Iec 61032 Test Ul Finger Probe 11 For Unjointed Test Finger
| MOQ: | 1 |
| Price: | Negotiable |
| Standard Packaging: | Export Packaging |
| Delivery Period: | 7 Working Days |
| Payment Method: | T/T, L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Detail Information
Place of Origin
China
Brand Name
SKYLINE
Certification
CE
Model Number
SL-P11
Materials:
Nylon Stainless Steel
Nodular Finger Length:
80mm
Nodular Finger Diameter:
12mm
Dam-board Diameter:
50mm
Dam-board Thickness:
5mm
Standard:
IEC61032-Probe 11-Figure 7
Highlight:
iec 61032 ul finger probe
,nylon stainless steel ul finger probe
Product Description
Product Description
Complies with IEC61032 Figure 7 Test Rig 11, GB/T16842 Test Probe 11, GB8898, IEC60065, IEC60598, GB7000, IEC60335, GB4706 and other standard requirements. It can also be used to test the mechanical strength of the holes in the housing or the internal baffle of the housing.
Can be ordered with 10~50N thrust.
Can be ordered with 10~75N thrust.
Test Finger Usage
1. As shown in the figure, the finger portion of the thrust test finger cannot touch the energized parts or cannot approach the dangerous parts, and the 50mm-20mm stopper cannot be entered.
2. In the test requirements for preventing access to dangerous parts, the thrust test finger needs to apply thrust.
Technical Parameters
| Materials | Nylon+Stainless Steel |
| Nodular Finger Length | 80mm |
| Nodular Finger Diameter | 12mm |
| Dam-board Diameter | 50mm |
| Dam-board Thickness | 5mm |
| Standard | IEC61032 Figure 7 |
