Mobile Phone Electronics Battery Drop Tester Battery Pack Drop Tester
| MOQ: | 1 unit |
| Price: | Negoitable |
| Standard Packaging: | plywood case |
| Delivery Period: | 15 working days |
| Payment Method: | Western Union, MoneyGram, T/T |
| Supply Capacity: | 1 pcs/ month |
Detail Information
Place of Origin
China
Brand Name
SKYLINE
Certification
CE
SKYLINE:
Drop-Test-Machine-Product
Maximum Weight Of Test Piece:
2kg±100g
Drop Height:
400 ~ 1500mm (adjustable)
Drop Height Scale:
Accuracy 1mm
The Use Of Air Pressure::
0.4 MPa
Power:
1 ∮, 220V, 3A
Highlight:
sharp edge tester
,electronic testing machine
Product Description

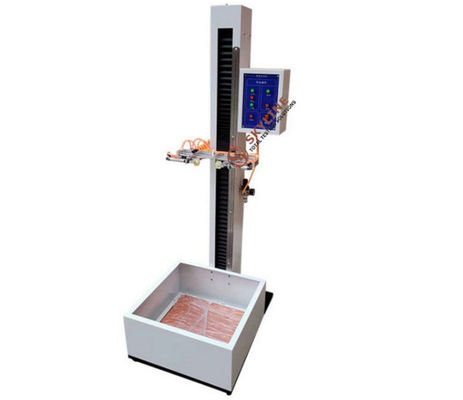

Drop test machine product
Use
This machine is suitable for mobile phone (mobile phone), walkie-talkie, electronic dictionary, building intercom, CD/MD/MP3 and other small consumer electronic products and parts free fall test; the machine uses pneumatic structure, will be tested Put it in a special fixture (adjustable stroke), press the down button, the cylinder will be loose, the test piece will be free fall test, the drop height can be adjusted up and down, the altimeter can know the drop height of the test piece, the key components of the machine Reliable performance, a variety of drop floor available.
Standards
UN38.3, IEC62133, QC/T743-201X
Technical parameters
| Maximum weight of test piece | 2kg±100g |
| Drop height | 400 ~ 1500mm (adjustable) |
| Drop height scale | accuracy 1mm |
| Clamping method | pneumatic clamp |
| Falling floor media | acrylic plate, stainless steel plate (customer-supplied) |
| The drop method | free fall |
| The bottom plate size | 560x410mm |
| The use of air pressure | 0.4 MPa |
| Machine size | 700x900x1650mm |
| Weight | 80kg |
| Power | 1 ∮, 220V, 3A |
