SL -S103 Electronic Testing Equipment AAA / AA / C / D / 9V Hasbro Dummy Batteries
| MOQ: | 1 unit |
| Price: | Negoitable |
| Standard Packaging: | plywood case |
| Delivery Period: | 5 working days |
| Payment Method: | Western Union, MoneyGram, T/T |
| Supply Capacity: | 1 pcs/ month |
Detail Information
Place of Origin
China
Brand Name
SKYLINE
Certification
Calibration Certificate
Model Number
SL-S103
SKYLINE:
Hasbro Dummy Batteries
Material:
Stainless Steel
Standard:
Hasbro SRS062
Torerance:
0.05/0.001mm
Highlight:
sharp edge tester
,flame test chamber
Product Description

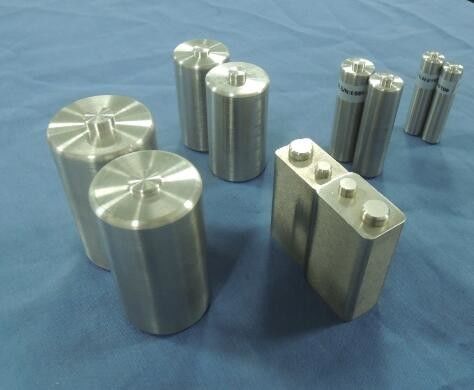

SL -S103 Electronic Testing Equipment AAA / AA / C / D / 9V Hasbro Dummy Batteries
Minimum Dimensions
| Dimension | AAA | AA | C | D | Tolerances |
| A | 42.5 | 49 | 48.5 | 59.5 | 0.05mm/-0.00mm |
| B | 5.16 | 8.25 | 19 | 19 | 0.05mm/-0.00mm |
| C | 1 | 1.02 | 0.64 | 0.64 | 0.05mm/-0.00mm |
| D | 3.81 | 5.5 | 7.5 | 9.5 | 0.00mm/-0.05mm |
| E | 0.8 | 1 | 1.5 | 1.5 | 0.05mm/-0.00mm |
| F | 9.5 | 13.5 | 24.7 | 32.2 | 0.05mm/-0.00mm |
| G | NA | NA | 1.7 | 2.3 | 0.10mm/-0.00mm |
Maximum Dimensions
| Dimension | AAA | AA | C | D | Tolerances |
| A | 44.5 | 50.5 | 50 | 61.5 | 0.00mm/-0.05mm |
| B | 5.25 | 8.25 | 19 | 19 | 0.05mm/-0.00mm |
| C | 0.66 | 1.02 | 0.64 | 0.64 | 0.05mm/-0.00mm |
| D | 3.81 | 5.5 | 7.5 | 9.5 | 0.00mm/-0.05mm |
| E | 1.79 | 2.25 | 3.02 | 3.23 | 0.00mm/-0.05mm |
| F | 10.5 | 14.5 | 26.2 | 34.2 | 0.00mm/-0.05mm |
| G | NA | NA | 1.7 | 2.3 | 0.10mm/-0.00mm |
9V Min/Max Dimensions
| Dimension | Maximum | Tolerances | Minimum | Tolerances |
| A | 17.5 | 0.00mm/-0.05mm | 15.5 | 0.05mm/-0.00mm |
| B | 49.2 | 0.00mm/-0.05mm | 46.5 | 0.05mm/-0.00mm |
| C | 45.77 | 0.00mm/-0.05mm | 43.3 | 0.05mm/-0.00mm |
| D | 26.5 | 0.00mm/-0.05mm | 24.6 | 0.05mm/-0.00mm |
| E | 12.95 | 0.00mm/-0.05mm | 12.45 | 0.05mm/-0.00mm |
