Stainless Steel Electronic Testing Equipment 0.7 J Single Energy Spring Impact Hammer
| MOQ: | 1 unit |
| Price: | Negoitable |
| Standard Packaging: | plywood case |
| Delivery Period: | 5 working days |
| Payment Method: | Western Union, MoneyGram, T/T |
| Supply Capacity: | 1 pcs/ month |
sharp edge tester
,electronic testing machine

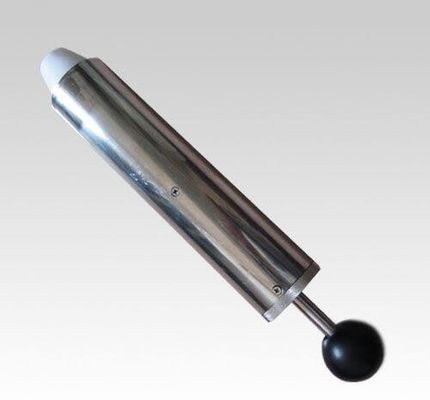

Stainless Steel Electronic Testing Equipment 0.7 J Single Energy Spring Impact Test Hammer
Introductions
This spring impact hammer is mainly used to test household and similar electrical appliances shell, lever, handle, knobs, lights and other shell to withstand mechanical shocks. The impact tester made of stainless steel or alloy.
Standards
It is strictly designed according to IEC60068-2-75, but not limited to these standards.
Applications
This hammer is mainly used to test household and similar electrical appliances shell, lever, handle, knobs, lights and other shell to withstand mechanical shocks. The impact tester made of stainless steel or alloy.
After applying the impact with the hammer, the products is examined with accessibility probes to determine access to shock,energy,and injury hazards. Built in exact accordance to IEC/EN/UL/CSA and other standards.
|
Type |
Impact Energy(J)
|
Tolerance Mistake
|
|
Spring Impact Energy
|
0.14
|
0.014
|
|
Spring Impact Energy
|
0.20
|
0.02
|
|
Spring Impact Energy
|
0.35
|
0.03
|
|
Spring Impact Energy
|
0.50
|
0.04
|
|
Spring Impact Energy
|
0.70
|
0.05
|
|
Spring Impact Energy
|
1.00
|
0.05
|
|
Spring Impact Energy
|
2.00
|
0.10
|
|
Universal Energy
|
0.14
|
1.00
|
Technical parameters
| length | 211mm |
| weight | 1250g |
| OD | 50 mm |
| Hammer Weight | 60g |
| Hammer radius | 10mm |
| Impact Components | including the hit ball handle the hammer,weight 250g, hammer head is made from white polyethylene imine first |
| The release force of impact | <10N |
