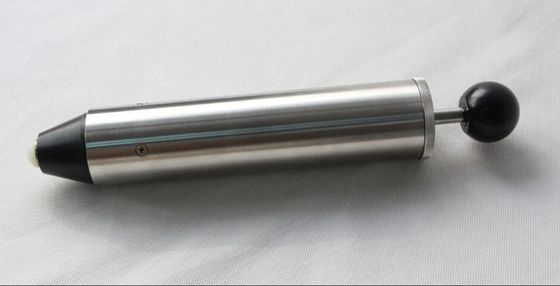

SL-SE03 Multi-segment Spring Hammer Impactor
Product overview
The spring impactor is designed and manufactured according to the GB/T2423 (IEC60068-2-75) standard, and is used for testing the impact resistance of electrical and electronic products, and is the test apparatus necessary for testing the safety performance of electric product casing under mechanical force. It is applicable to household and similar electrical appliances, electronic products, lamps, electrical accessories shell, joystick, handle, knob, LED, signal lights and lampshades, such as mechanical strength test,
To ensure that the tested product can withstand reckless operation and other accidents that may occur,Electrical products can be safe and reliable operation, will not cause harm to people.
Technical parameter
| Length | 211mm |
| Weight | Single-file 1250g, six-gear 2500g |
| OD | 50mm |
| Hammer Weight | 60g |
| Hammerhead Radius | 10mm |
| Impact Assembly | Operation handle and Hammerhead, Hammerhead made of white polyimide |
| Impact release force | less than 10N |
