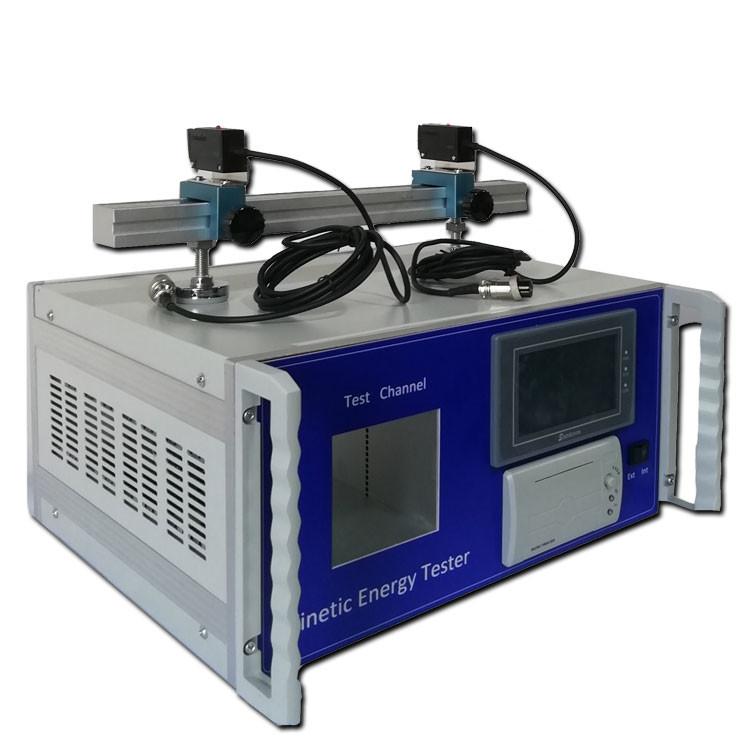

EN71-1 Toys Testing Equipment Touch Screen Kinetic Energy Tester With Printer

Place of Origin China
Brand Name SKYLINE
Certification CE
Model Number SL-S16
Minimum Order Quantity 1 unit
Price negoitable
Packaging Details Plywood case
Delivery Time 5 working days
Payment Terms T/T, Western Union,
Supply Ability 5 pcs / month
Product Details
SKYLINE: Kinetice Energy Tester Sample Test Range: 0.001g~1000,000.000g
Speedometer Time: 1uS-15.000000S Internal Testing Channel Size: 76mmx76mm
Sensors Distance: 100mm Standards: ISO 8124-1 EN-71-1 16 CFR 1500 ASTM F963 4.8
Highlight:

swing durability tester

,

swings testing equipment
Product Description

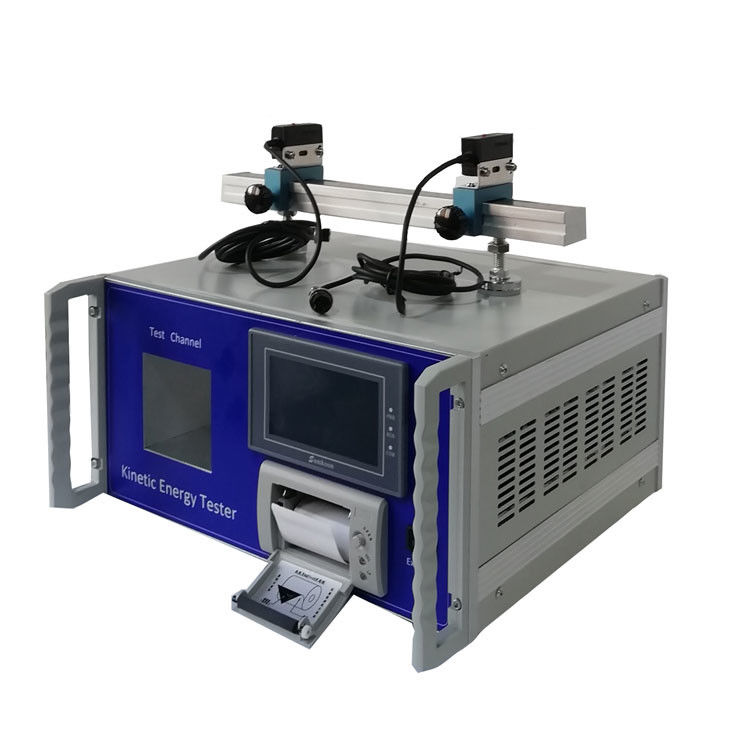

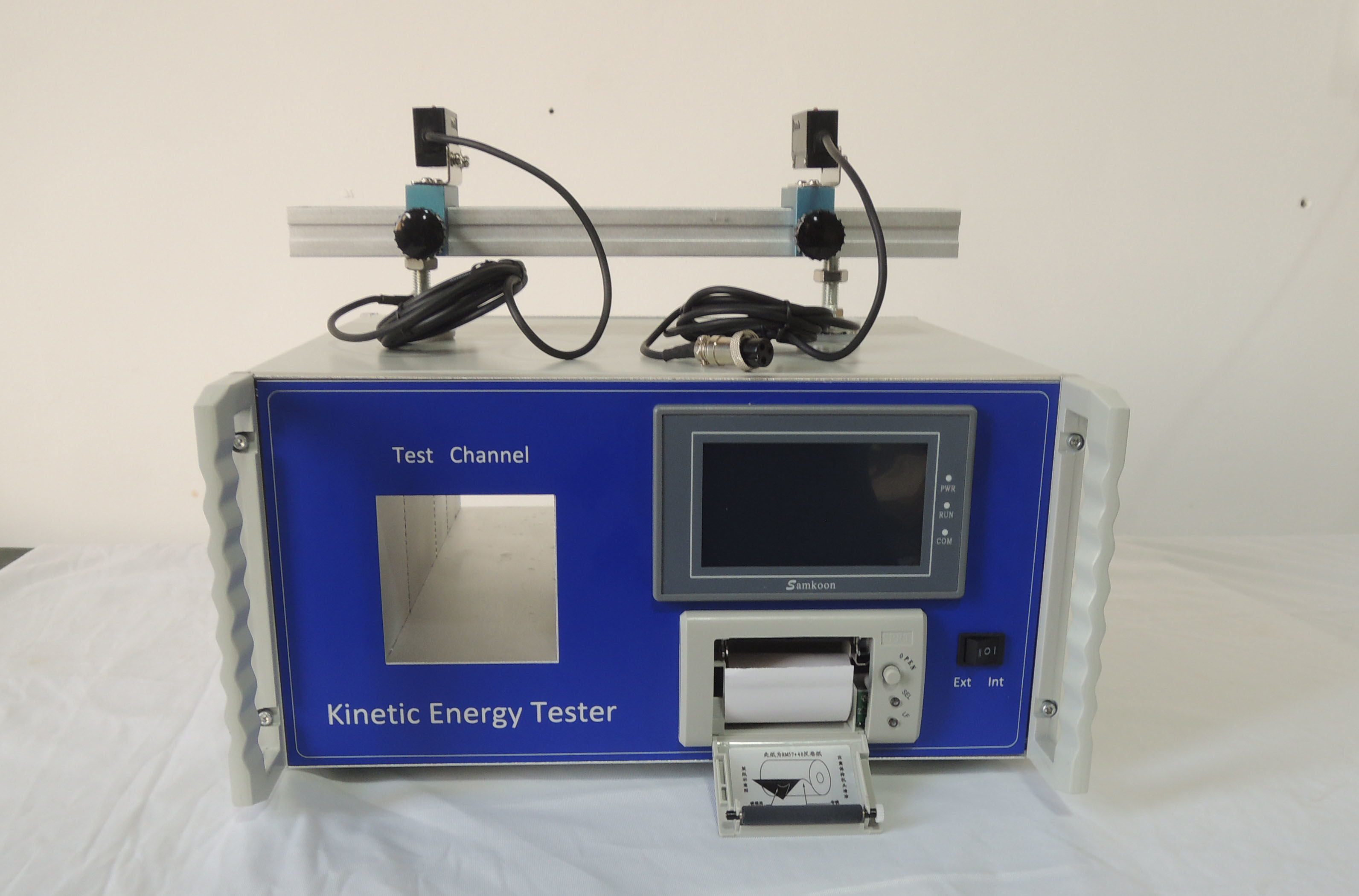

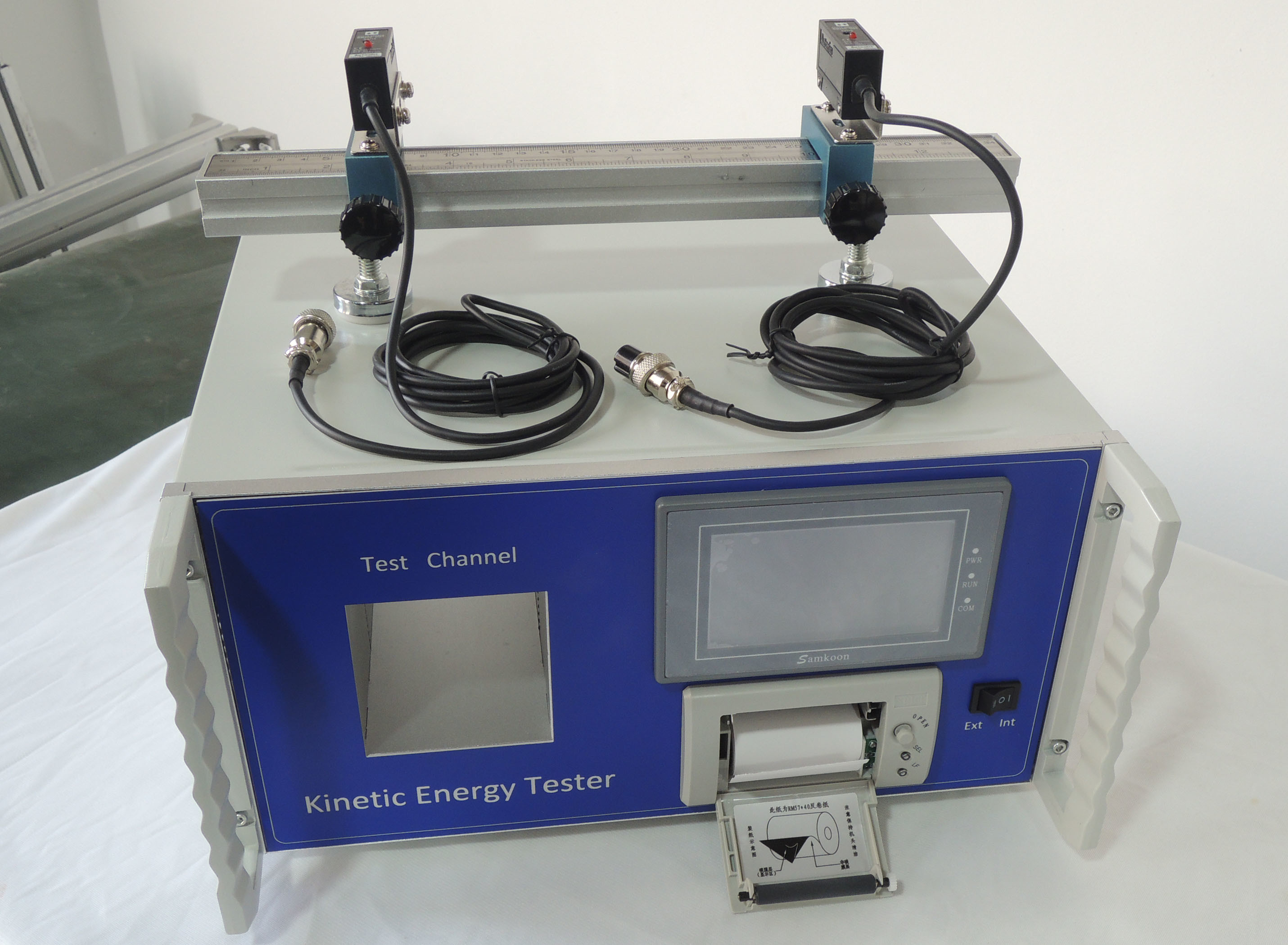

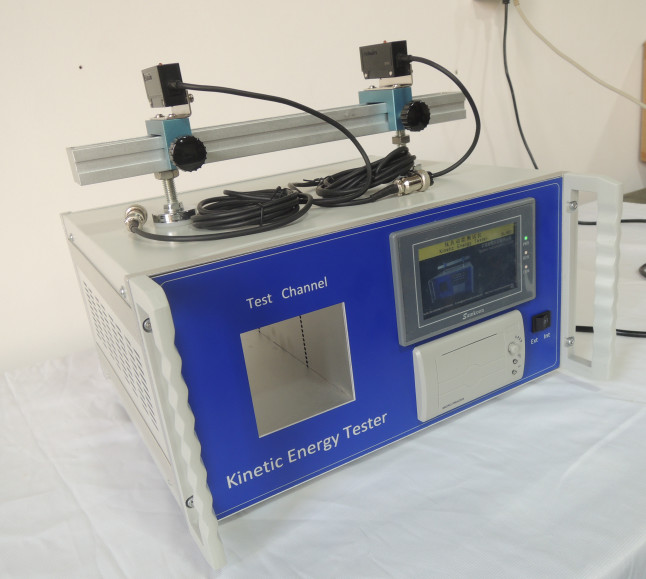

ISO 8124-1 Toys Test Equipment Toy Kinetic Energy Tester



Product introduction

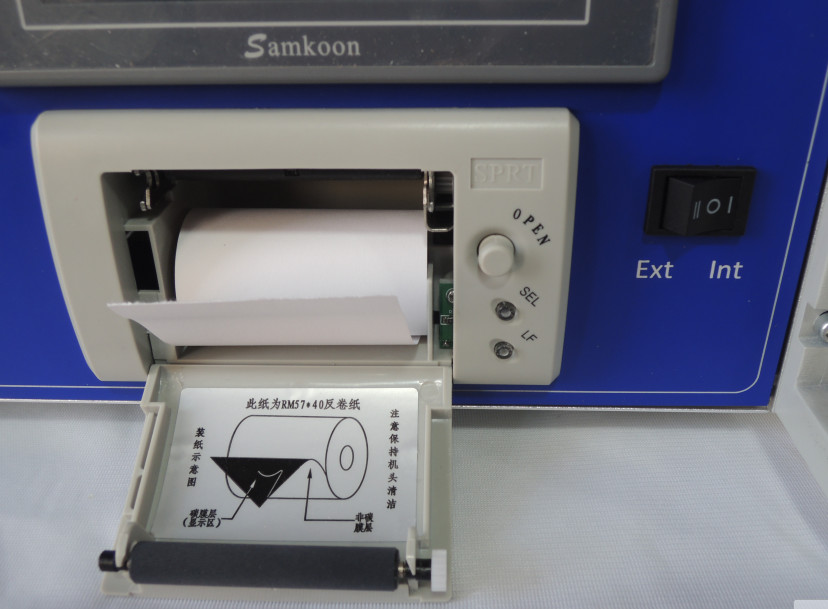

This device comes with a printer.

The Kinetic Energy Tester is used to test related materials from the launch of the toys and toys from the launch of a non-exclusive material that may be caused by the ejection of some, but not all of the potential risk of accidents.

To determine the size catapults kinetic energy of toys, the ejection of parts of the test apparatus through the tube or external testing of the components of the two sensors detect the ejection toy parts used away after a certain period of time, it has calculated the move Energy. The main instruments used for this test launch of baby toys or children's safety.



Main Parameters

 Sample test range  0.001g~1000,000.000g
 Response time  10uS.
 Speedometer time  1uS-15.000000S
 Projectile size

 maximum 50mm diameter

Minimum 2mm diameter
 Internal testing channel size  76mmx76mm

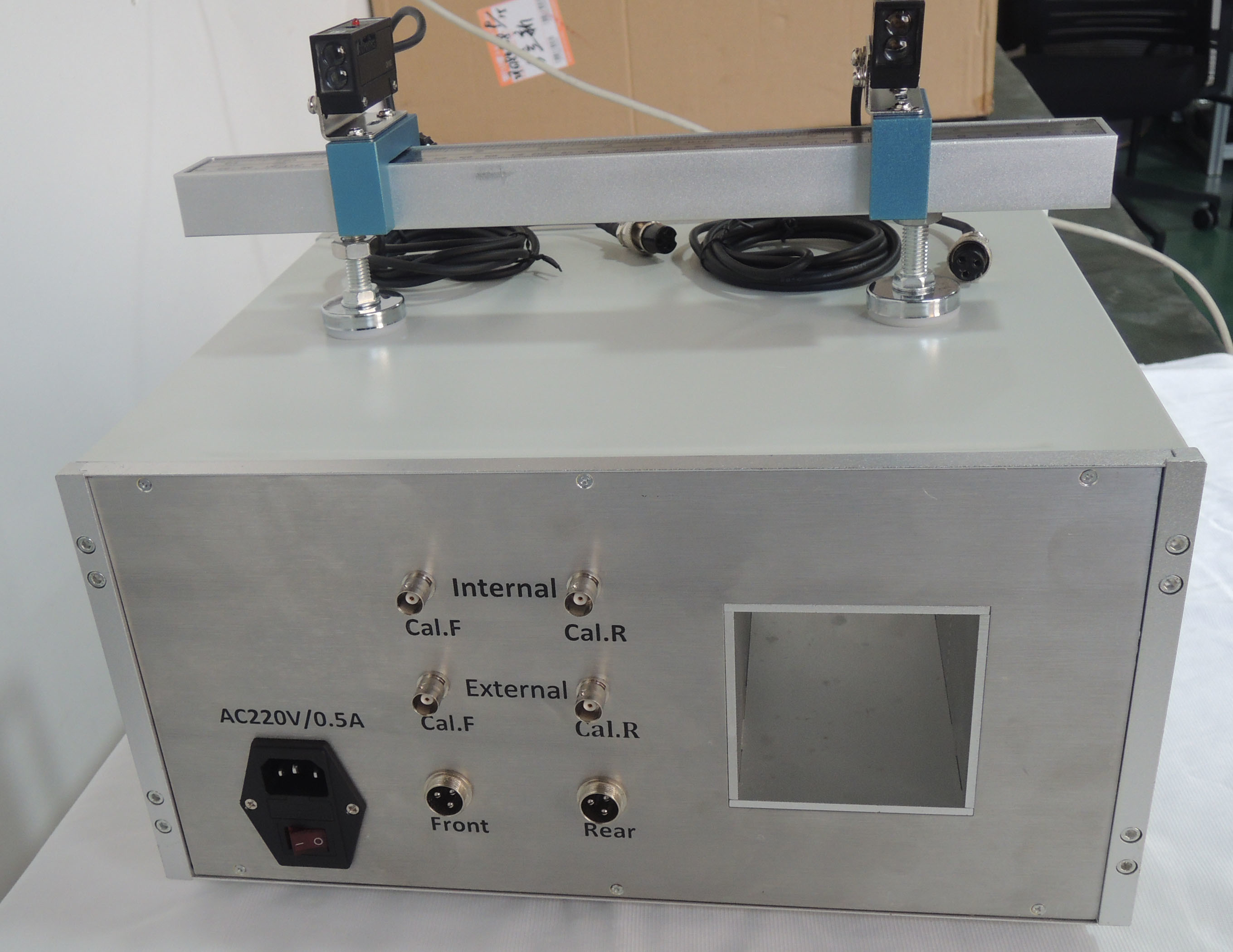

 Sensors distance  100mm/152.4mm( internal sensor )

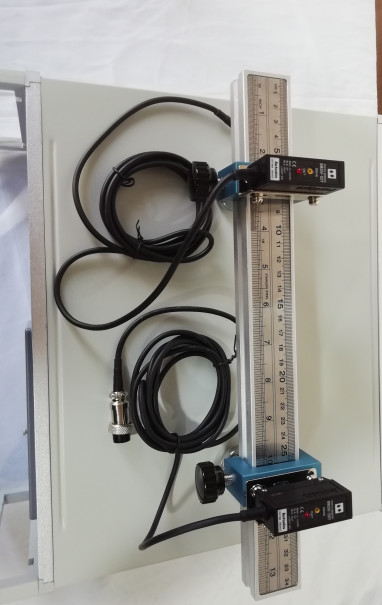

 Adjustable  40mm - 400mm ( external sensor)
 Direct-reading  Induction time, Test speed, Test power

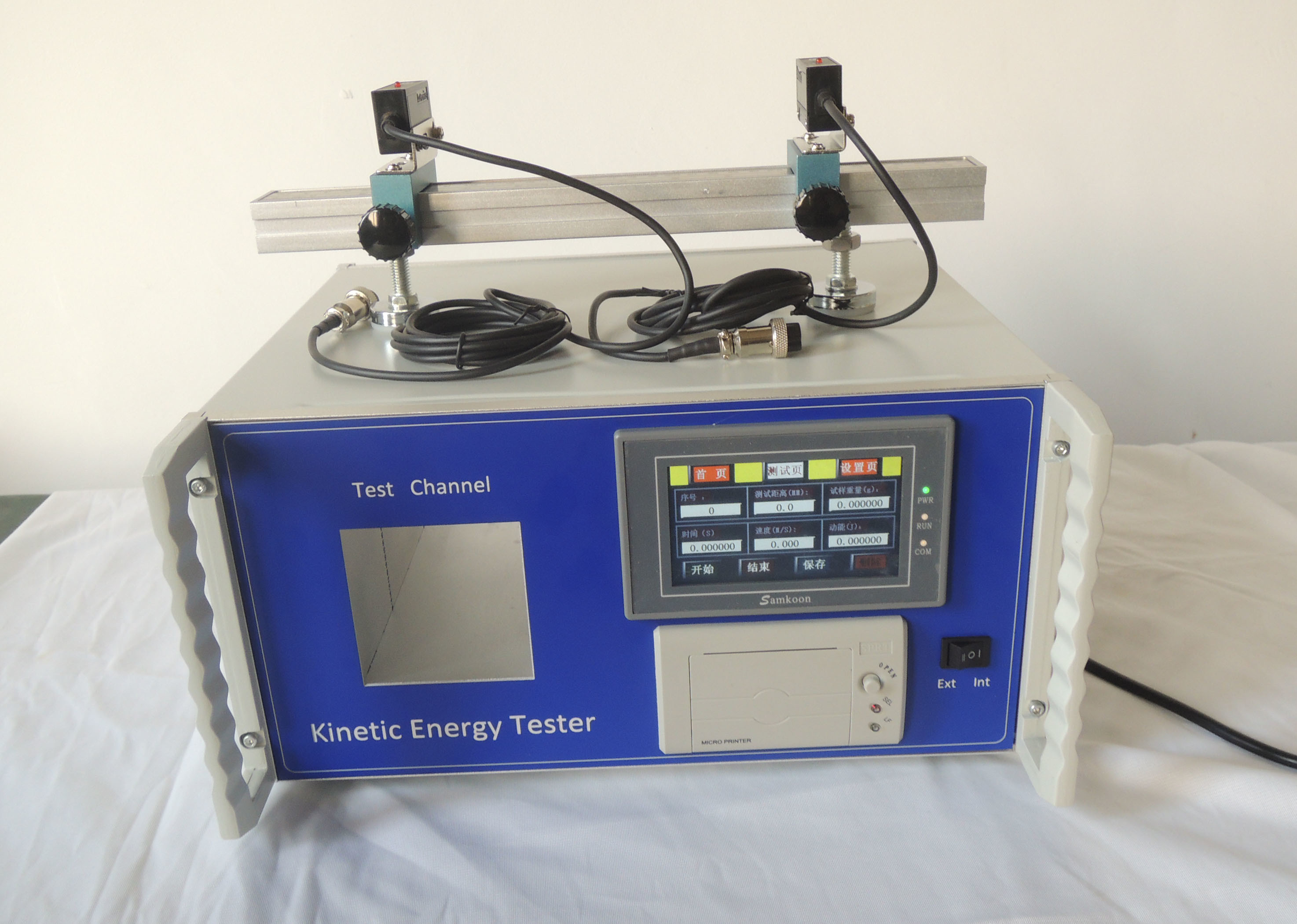

 Screen control  Touch Screen
 Dimensions  350 x 420 x 210mm (L x W x H)
 Weight  19kg
 Standards

 ISO 8124-1 EN-71-1 16 CFR 1500 ASTM F963 4.8
