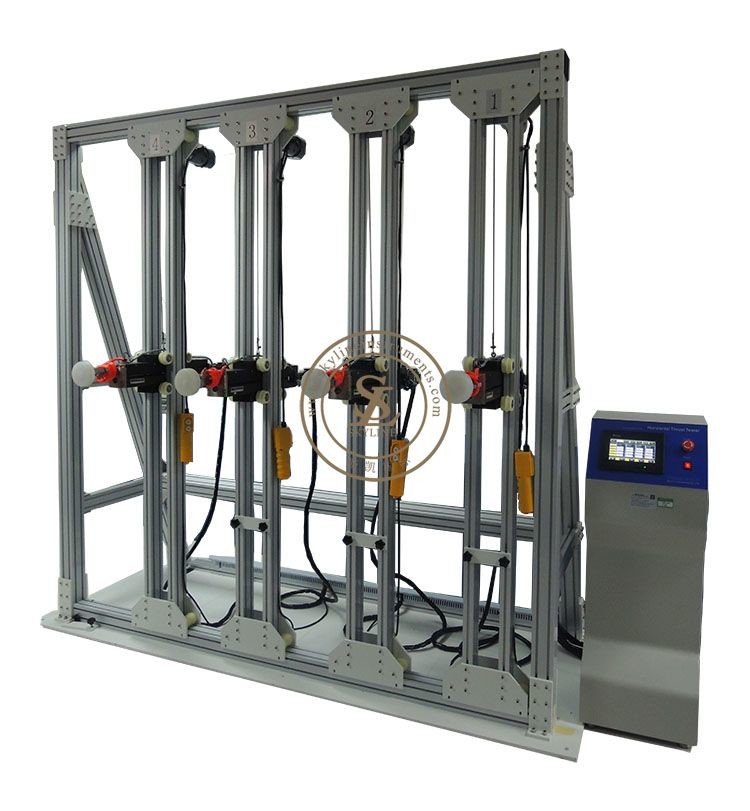

Outdoor Activity Toys Testing Equipment Horizontal Thrust Tester ISO8124-4

Toys Testing Equipment ISO8124-4 Horizontal Thrust Tester

Use

A horizontal force is simultaneously applied at each suspension point to simulate the horizontal forces created by pendulum effect.

Main parameters

Standards
ISO8124-4 6.1.2/ 6.1.4

Procedure

Assemble the toy in accordance with the manufacturer's instructions and place or fix it on a rigid horizontal surface
For a free-standing toy, stops may be used to prevent it from slipping on the surface. They shall, however, not prevent the toy from overturning.
Swings and other activity toys with crossbeams supplied with removable ground anchors shall be tested with the anchors fixed to the standing surface in accordance with the manufacturer's instructions.
On the suspension point(s), simultaneously apply horizontal forces of (500 ± 20) N per user in the Swing direction.
Where a swing element has multiple suspension points, distribute the load equally between the Points
Forces on multiple suspension points shall be applied in the same direction simultaneously.
Observe whether the toy tips over

PCL controller+ touch screen display
