2000N Cylinder Loading Kid Toy Testers , Scooter Steering Tubes Strength Testing Machine

Place of Origin China
Brand Name SKYLINE
Certification Calibration certificate
Model Number SL-ST619
Minimum Order Quantity 1 unit
Price negoitable
Packaging Details Plywood case
Delivery Time 20 working days
Payment Terms T/T, Western Union,
Supply Ability 1 unit
Product Details
SKYLINE: Toys-Scooter-Steering-Tubes-Strength-Tester Standards: EN 71-1 ISO 8124-1
Loading Method: Cylinder Loading Force Gauge Capacity: 2000N
Dimension: 90×90×172 Weight: 170kg
Highlight:

Cylinder Loading kid toy testers

,

2000N kid toy testers

,

2000N strength testing machine
Product Description

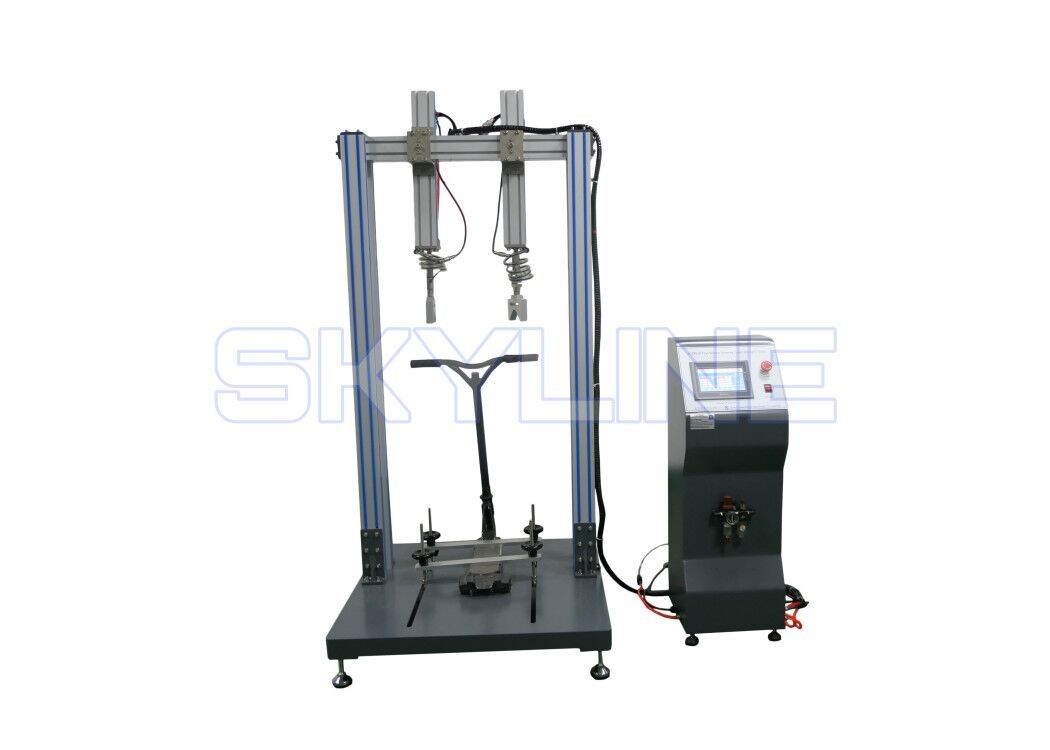

Toys Scooter Steering Tubes Strength Tester



Applications

Toys Scooter Steering Tubes Strength Tester apply to test the strength of toy scooter steering tubes,including resistance to downward forces and resistance to upward forces.

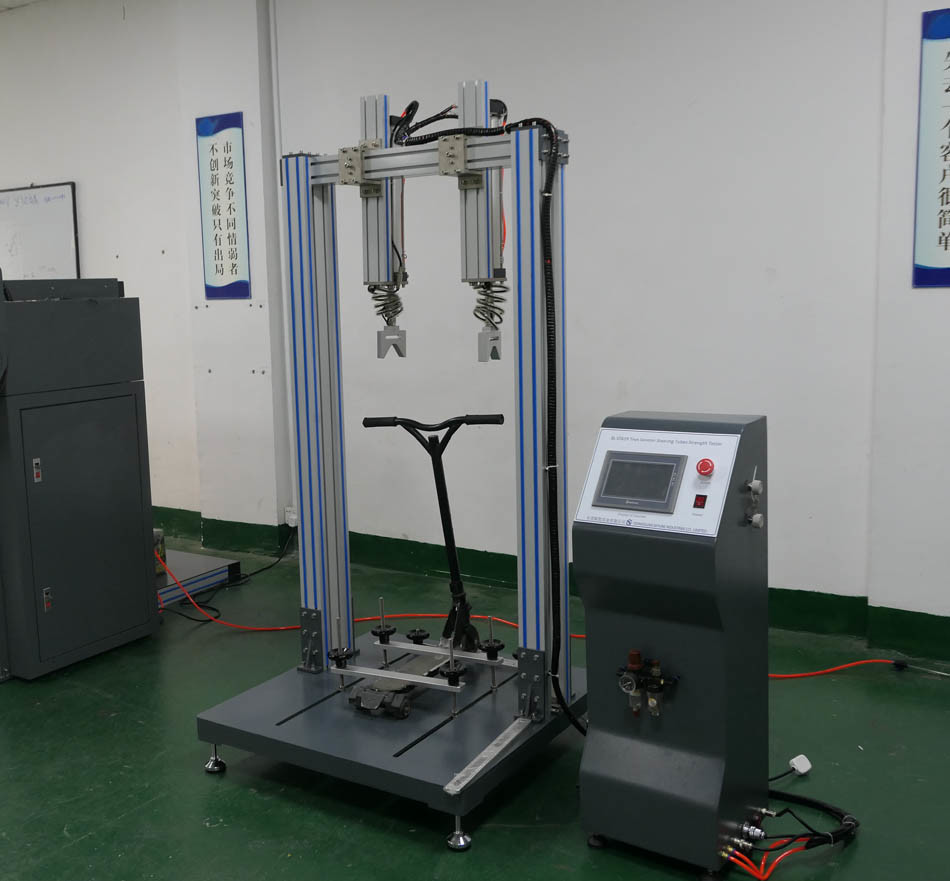

This tester is suitable for the test of the strength of the toy scooter. In the normal use of the toy scooter, the vertical tube is fixed vertically on the machine platform, and the strength performance after 5 minutes of vertical load is applied by the loading handle.



Principle

Impedance test for downward pressure: For the toy scooter handle, the vertical load of the loading jig was applied and held for 5 min and then unloaded to evaluate the strength performance of the standpipe.

Impedance test for upward lift force: The strength performance of the standpipe is evaluated by applying a vertical pull force to the toy scooter handle through a rope clamp and holding it for 5 minutes.



Technical parameters

 Sample  Toy scooter
 Number of samples  1 set / time

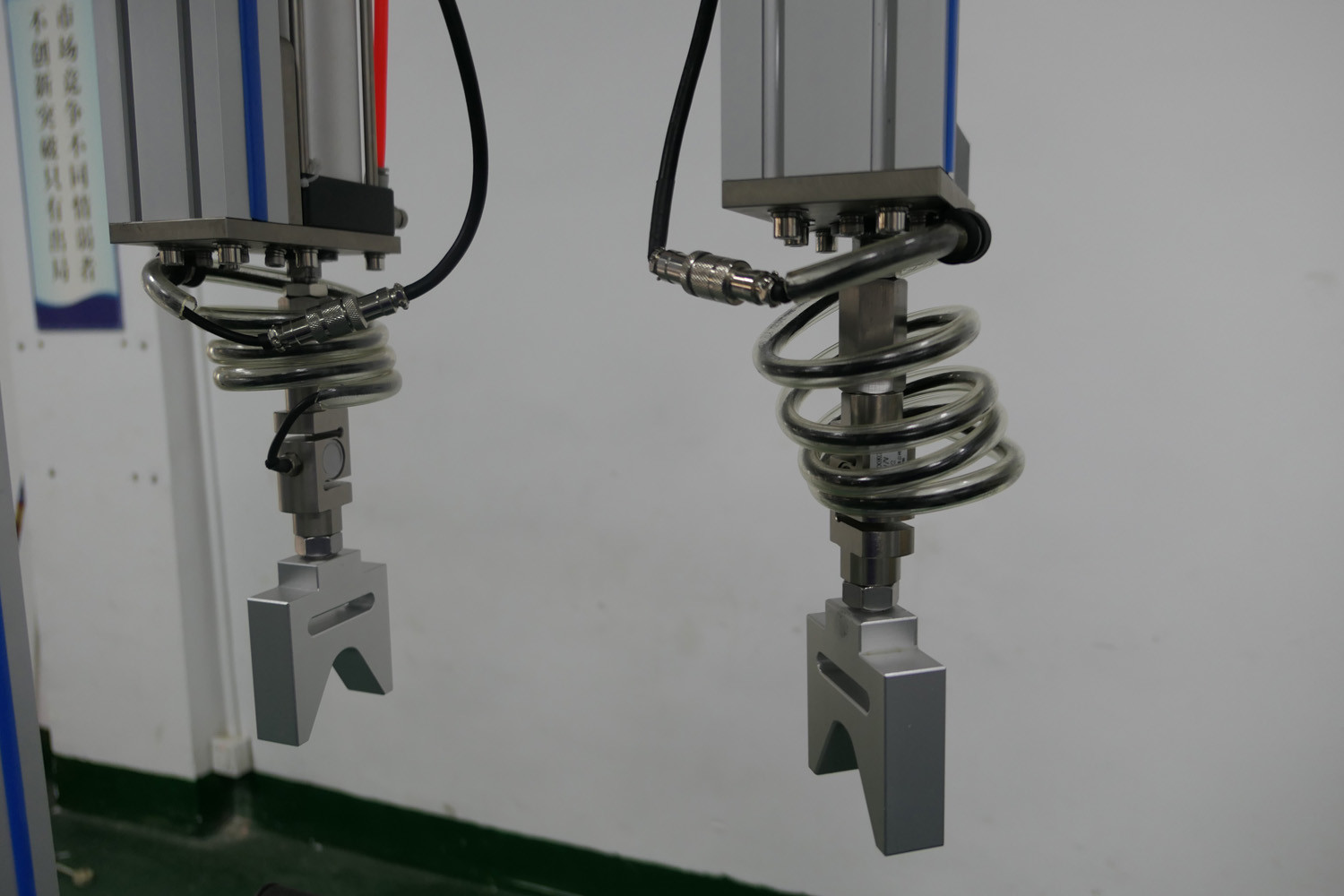

 Loading method  cylinder loading
 Loading weight  25kg+/-0.2kg,50kg+/-0.5kg,100kg+/-1kg

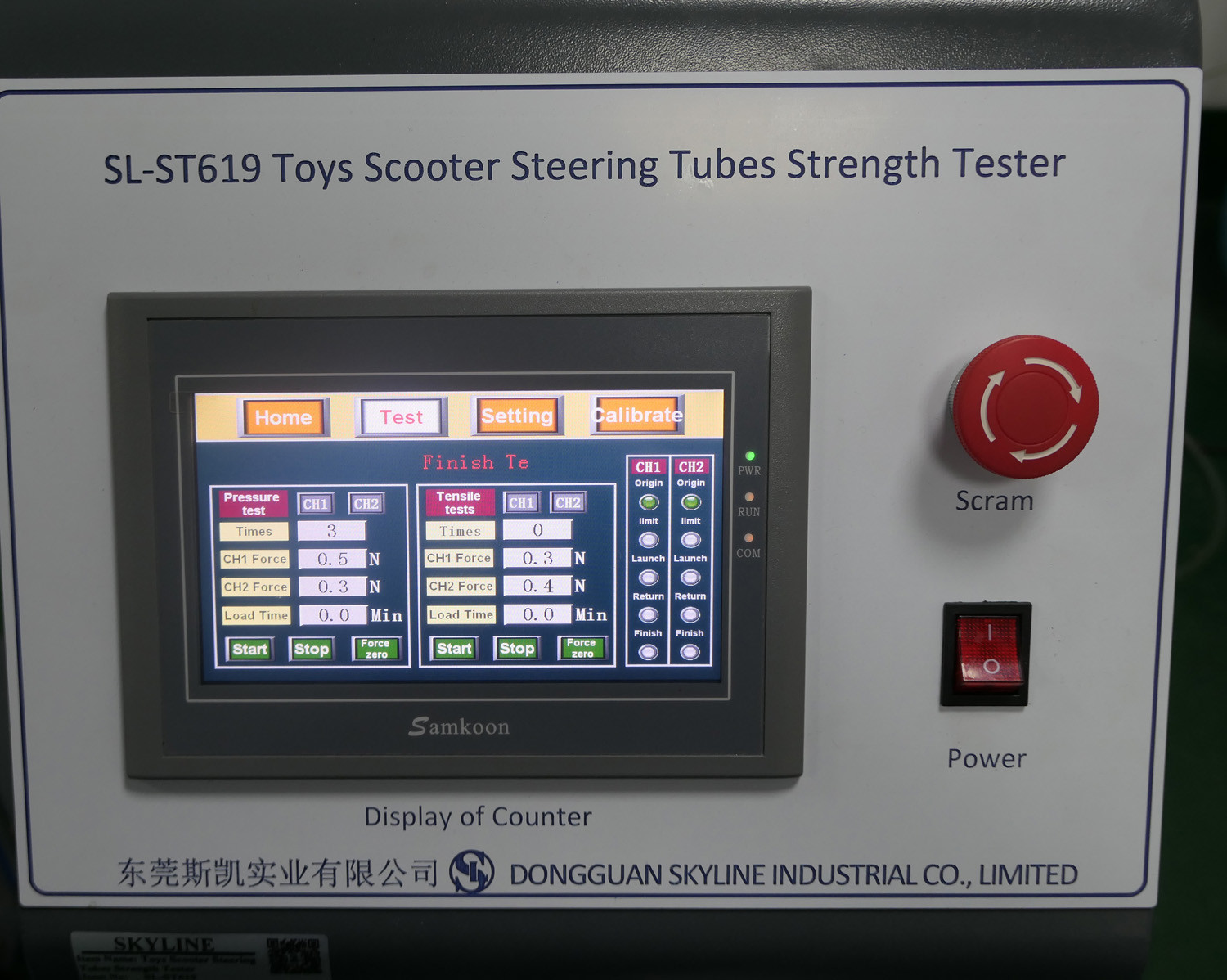

 Control mode  Touching screen control
 Force Gauge capacity  2000N
 Up and down stroke adjustment  100mm-600mm Adjustable
 Left and right adjustment range  500mm-1200mm Adjustable
 Force measurement accuracy  +/-1%
 Dimension  90×90×172
 Weight (about)  170kg
 Gas source  7kgf/cm^2 Stable air source
 Power supply  1∮ AC 220V 50Hz 5A
