Strength Testing Equipment ISO 8124-4 , Dynamic Testing Machine For Barriers / Handrails

Name: Strength Testing Equipment ISO 8124-4 , Dynamic Testing Machine For Barriers / Handrails
Brand: SKYLINE
SKU: SL-S135
Rating: 4.9 (178 reviews)

Product Details

Place of Origin: CHINA

Brand Name: SKYLINE

Certification: CE

Model Number: SL-S135

Payment & Shipping Terms

Minimum Order Quantity: 1 UNIT

Price: Negoitable

Packaging Details: Plywood case

Delivery Time: 30 working days

Payment Terms: T/T, Western Union, MoneyGram

Supply Ability: 1 unit / month

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                stability test chamber, swings testing equipment


SKYLINE:	Dynamic Strength Tester For Barriers And Handrails	Standard:	ISO8124-4 6.3
Load:	25+/-1kg	Drop Height:	125+/-10mm
Impact Force:	30J	Sample Height:	90-240cm

SKYLINE:	Dynamic Strength Tester For Barriers And Handrails
Standard:	ISO8124-4 6.3
Load:	25+/-1kg
Drop Height:	125+/-10mm
Impact Force:	30J
Sample Height:	90-240cm

Product Description

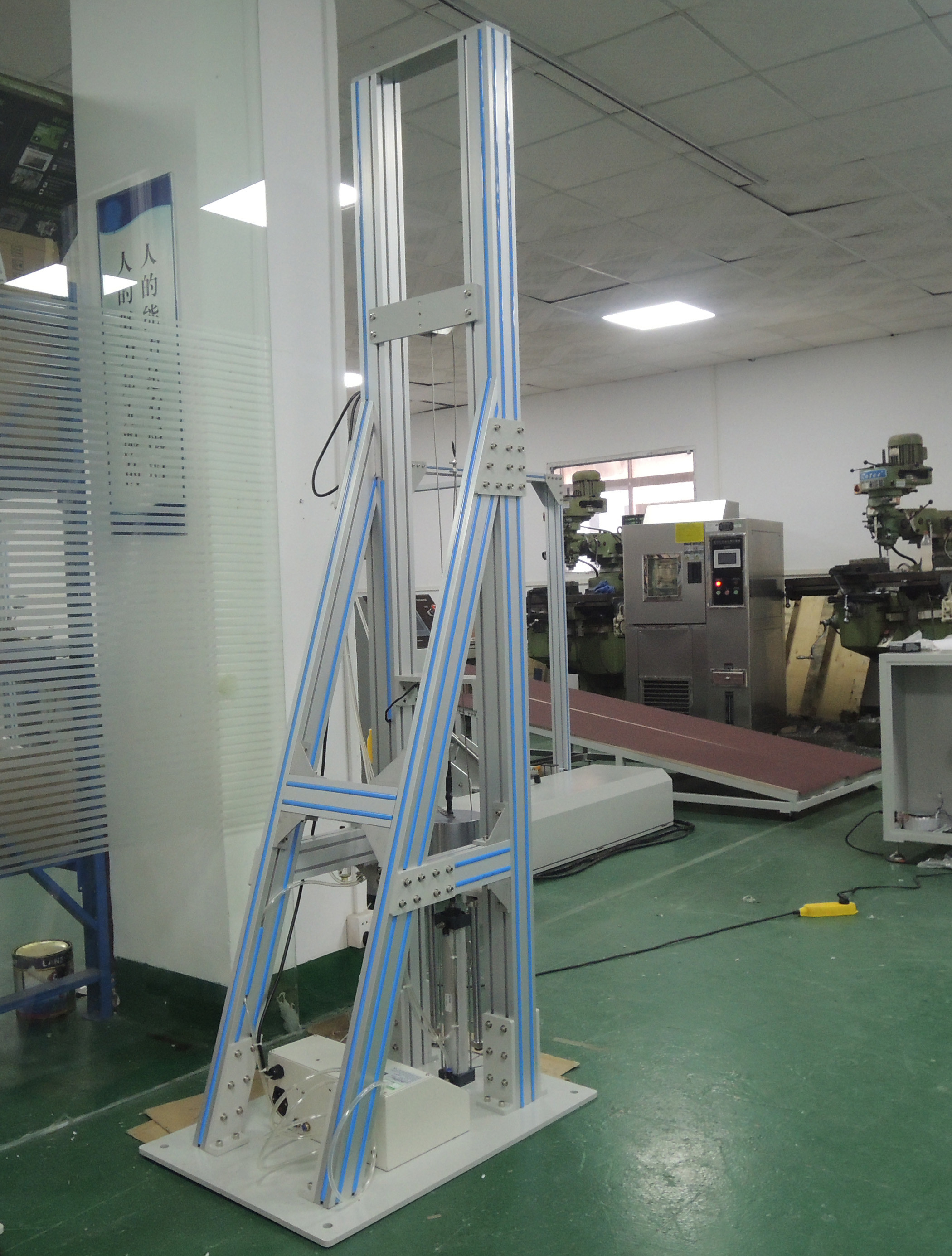

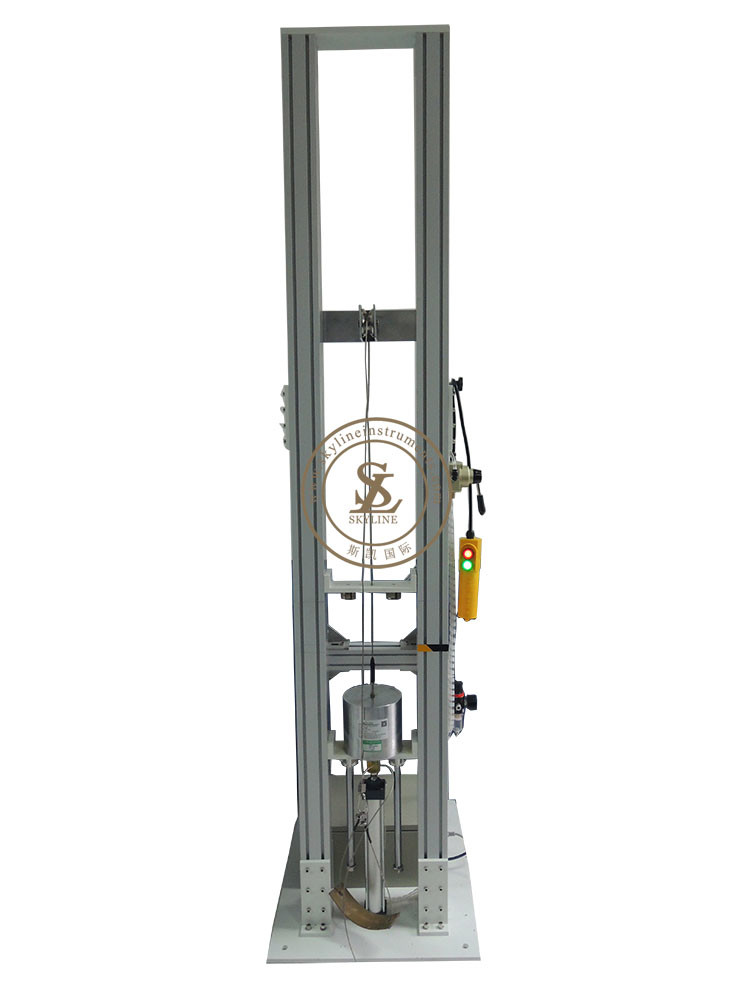

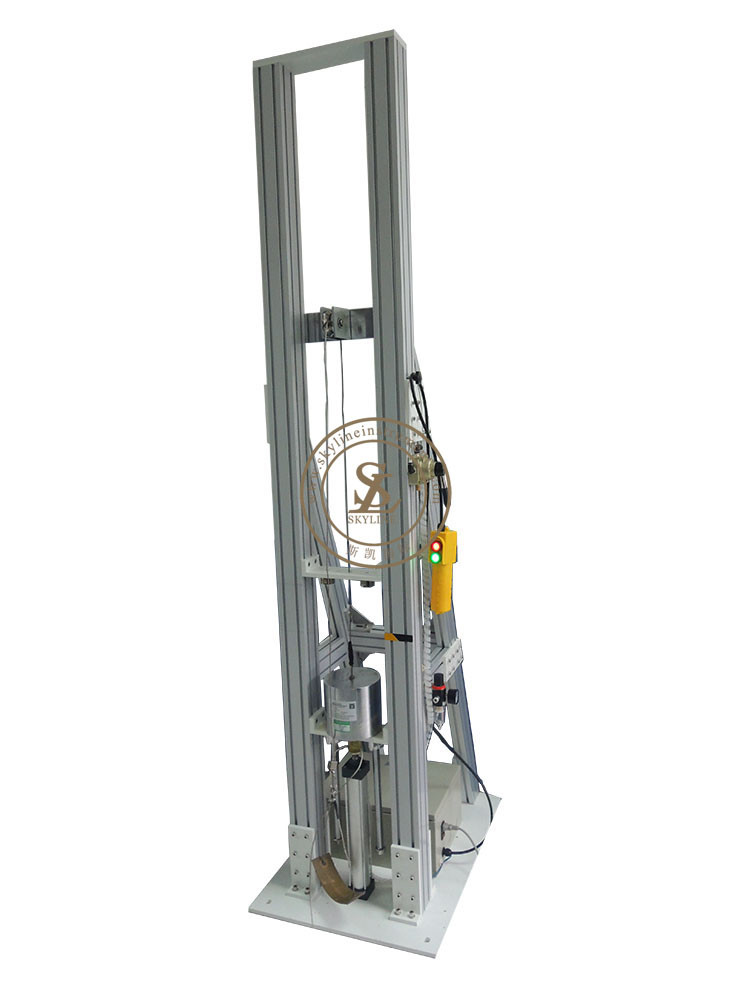

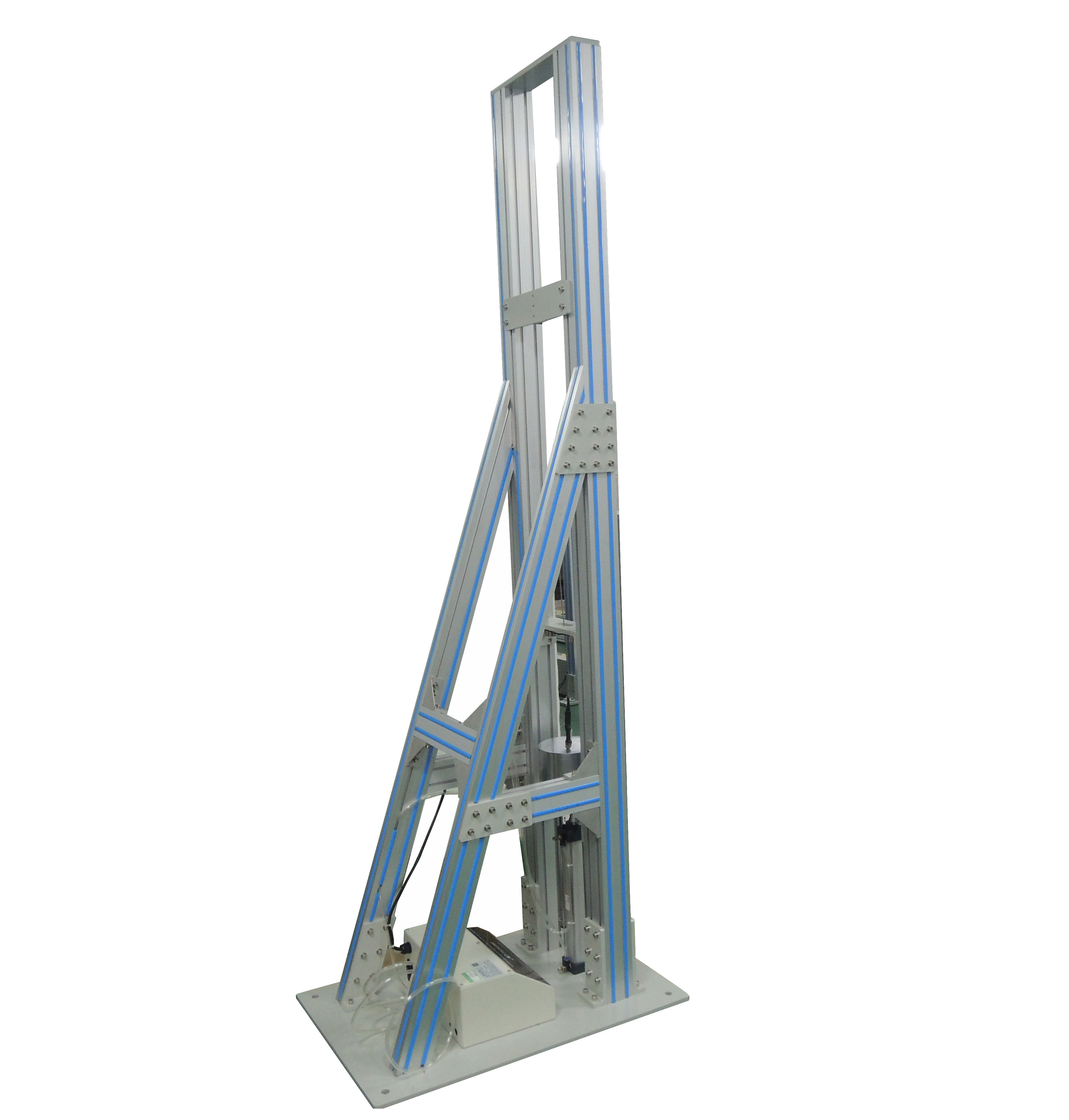

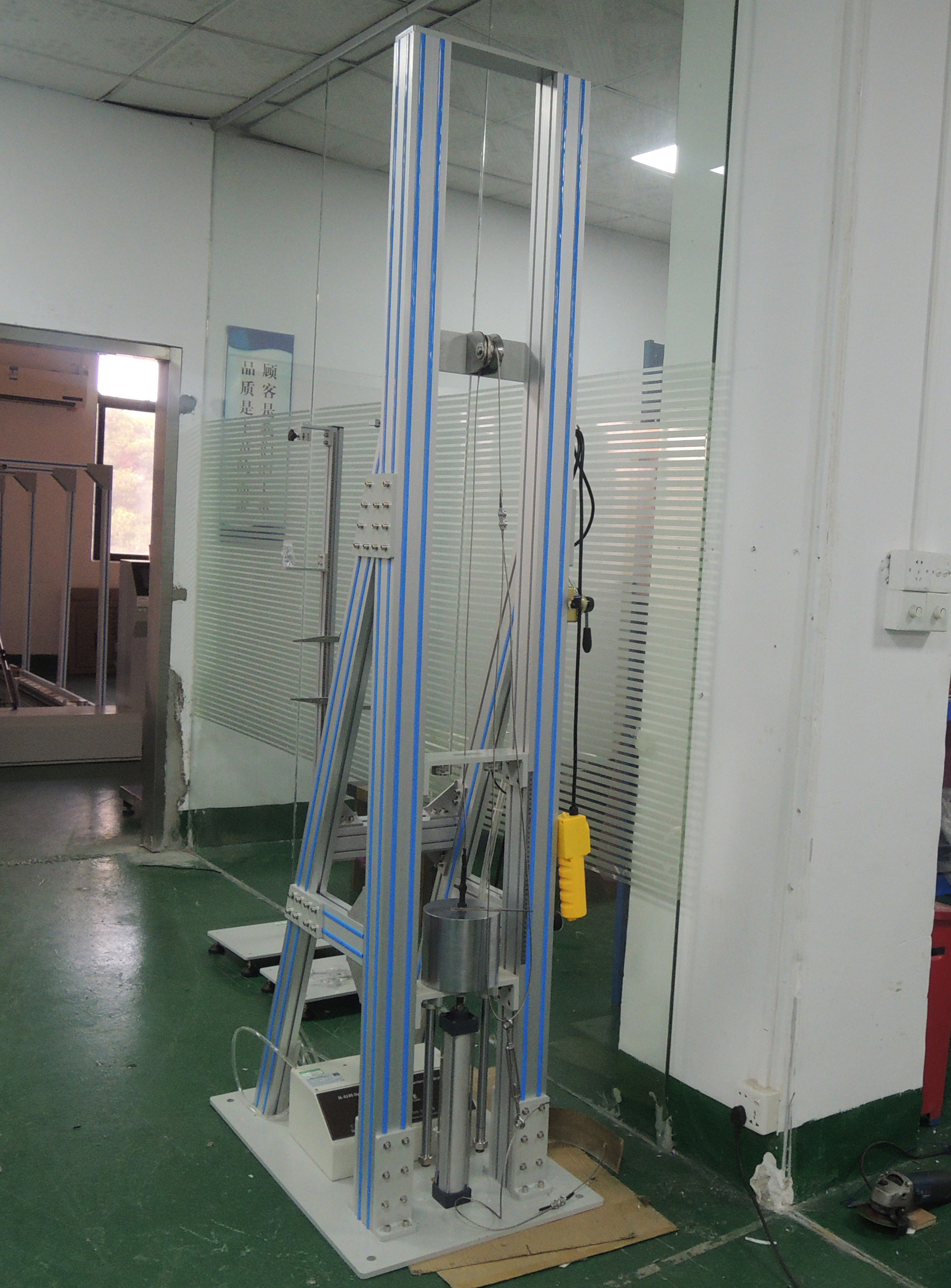

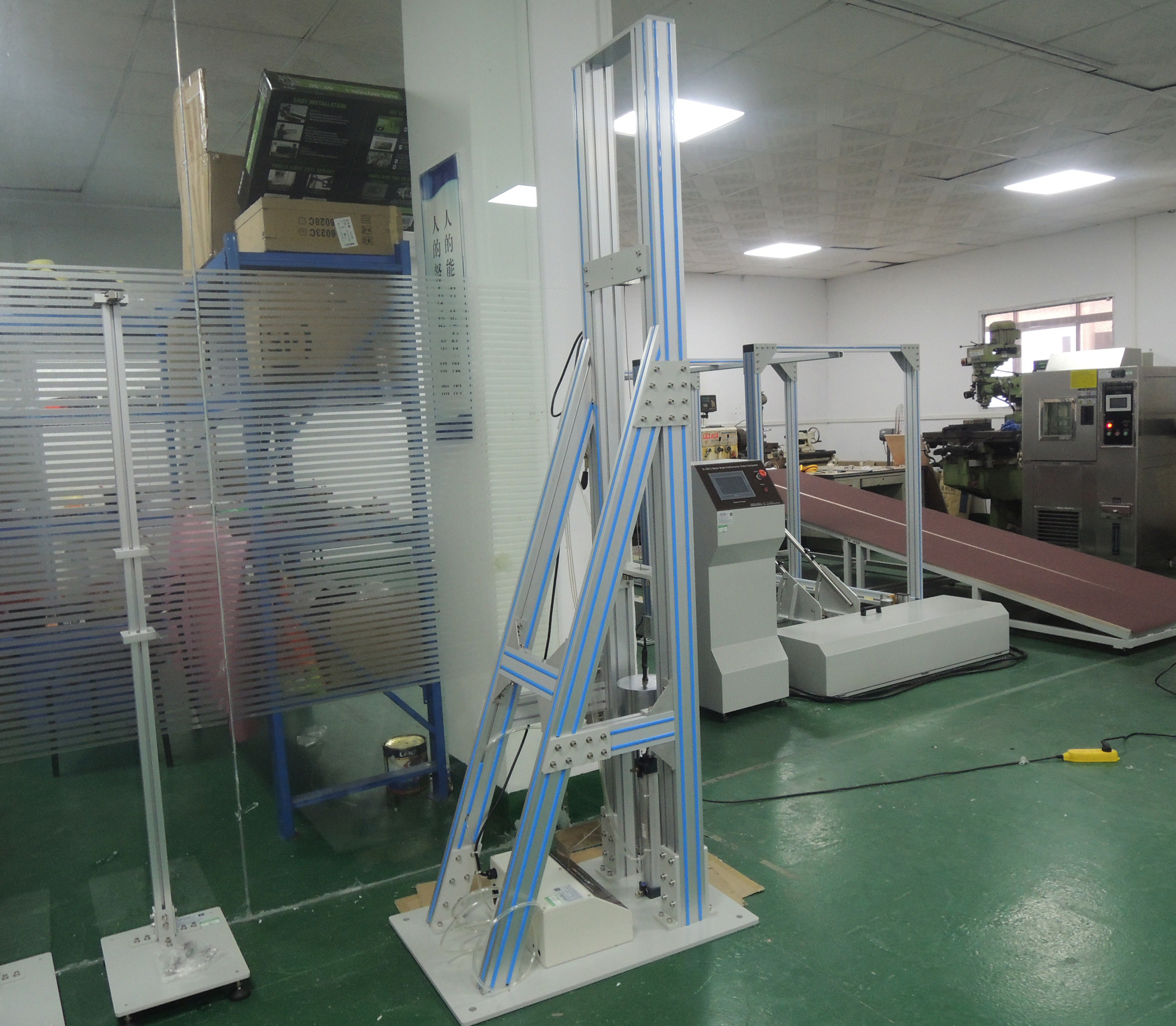

ISO8124-4 Dynamic strength Tester for Barriers and Handrails Toys Testing Equipment

Application

A sudden horizontal impact stress is applied to the barrier or handrail, through a pad, by a falling load.

Determine of the dynamic strength of barries and handrails.

Parameters

Load	25+/-1kg
Drop Height	125+/-10mm
Impact method	free fall
Impact Forec	30J
Sample height	90-240cm
Weight	approx 140kg

Standards
EN 71-8 clause 6.4, ISO 8124-4 6.3

Procedure
Assemble the toy in accordance with the manufacturer's instructions and place or fix it on a rigid horizontal
surface.
Place and secure the pad to the top of the barrier or handrail at the most onerous position and without causing
any damage to the toy. Attach the free end of the rope to the pad.
Arrange the rope and the pulley so that the load hangs freely. Raise the load vertically 125 mm ± 10 mm and
let it drop freely (this will give an impact energy of approximately 30 J). Within 10 s, remove all tension from
the barrier.
Observe whether the toy still complies with the relevant requirements of this part of ISO 8124.
