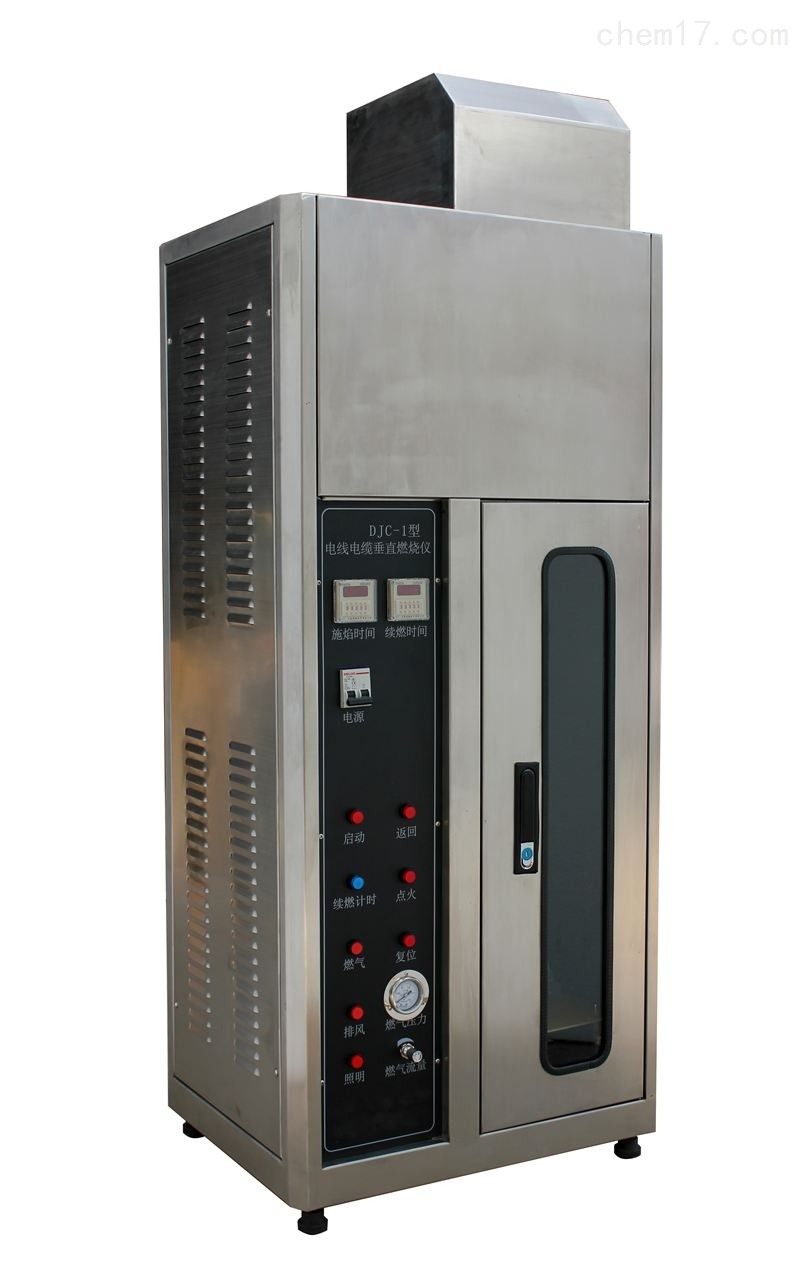

Fire Testing Equipment / Vertical Flame Test Chamber

Product Details

Place of Origin: China

Brand Name: SKYLINE

Certification: CE

Model Number: SL-7603A

Payment & Shipping Terms

Minimum Order Quantity: 1 unit

Price: negotiated

Packaging Details: Plywood case

Delivery Time: 15 working days

Payment Terms: T/T, L/C, Western Union, MoneyGram

Supply Ability: 1 unit/ month

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                flammability test chamber, flammability testing labs


Standards:	IEC60332-1-1:2004,	Burning Chamber:	300x1200x450mm(WHD)
Specimen Length:	600±25mm	Gas Flow Range:	0.1-1L/min

Standards:	IEC60332-1-1:2004,
Burning Chamber:	300x1200x450mm(WHD)
Specimen Length:	600±25mm
Gas Flow Range:	0.1-1L/min

Product Description

Gas Flow Range 0.1-1L/min Vertical Flame Test Chamber

Application

Applies to check the section area more than 0.5mm2 of single insulation wire and cable vertical flame propagation testing.

Standards

According to IEC60332-1-1:2004, IEC60332-1-2:2004, IEC60332-1-3:2004, EN50265-1, EN50265-2-1

Functional characteristics

The vertical burning test on single wire and cable is the provisions of the size of the lamp (Bunsen burner and specific gas source (propane), according to the certain flame height and certain Shi flame angle of a vertical state of the sample timing Shi burning, to test the product to kindle, combustion duration and combustion length to assess the flammability and fire risk.

Technical parameters

Burning chamber	W300xH1200xD450mm
Gas	Use high purity propane gas or liquefied petroleum gas (provide by user-self)
Specimen length	600±25mm
Area of specimen	the section area more than 0.5mm2
Testing temperature	This device is located in a stuffiness room and the temperature keeping the 23±10℃ for testing
Burning time	continuously setting between 0.1-999.9S, during the setting time flame could continuously burning the specimen
Control function	Switch can choose to be manual or automatically according to the actual needed
Gas flow range	0.1-1L/min
Area flow range	0.1-1m3/h
Burning blowtorch	1KW for standards power, 50～60mm for height of blue luminous cone, 170～190mm for total height of flame, according to GB/T5169.14-2007, IEC60695-11-2:2003 standard requires.

Vertical Flame Test Chamber.pdf

Why is flammability testing important?

In order to minimize the risk of fire or explosion, it is important to evaluate the flammability characteristics of the material to understand key characteristics such as the lower flammability limit, upper flammability limit, limiting oxygen concentration and deflagration index.
