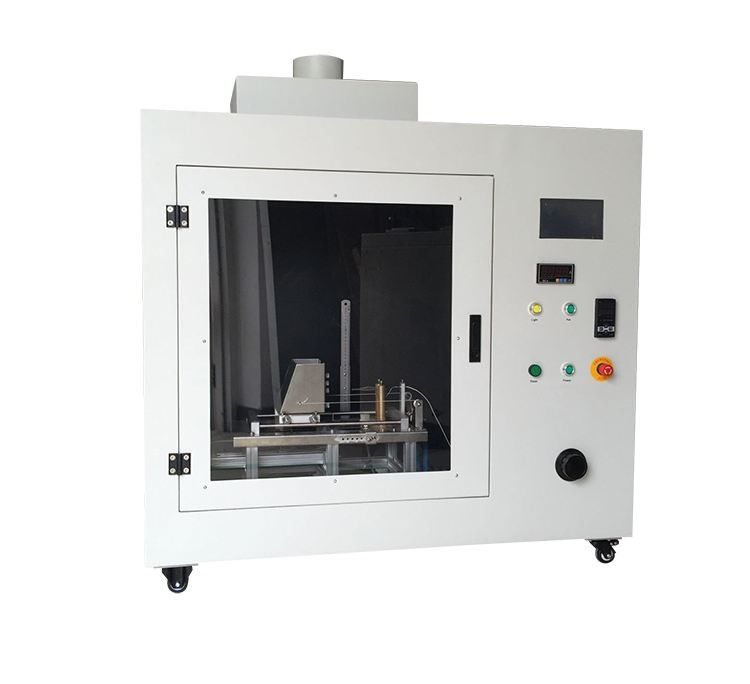

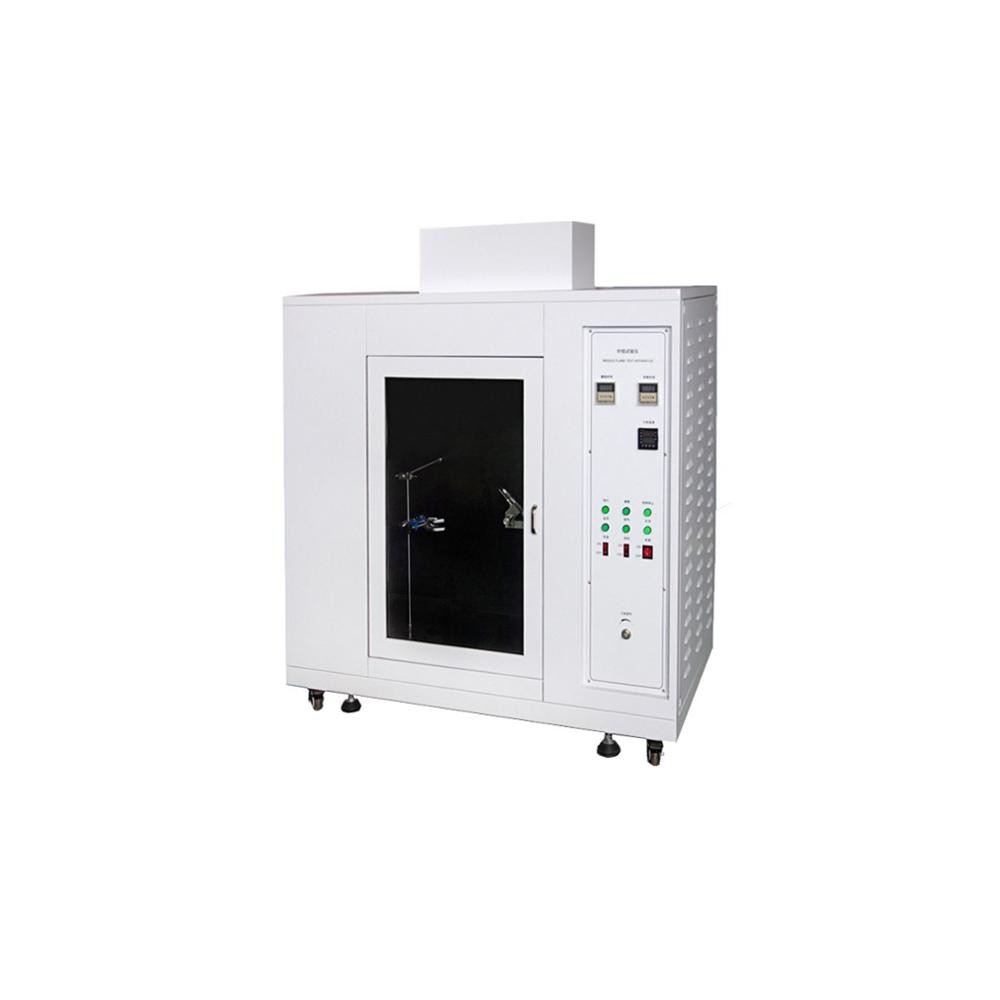

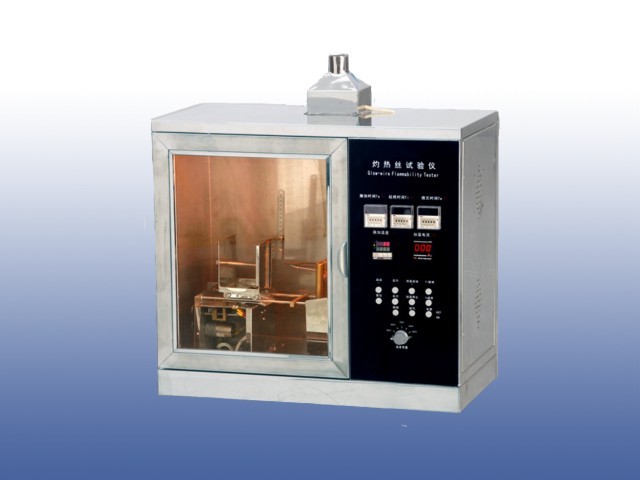

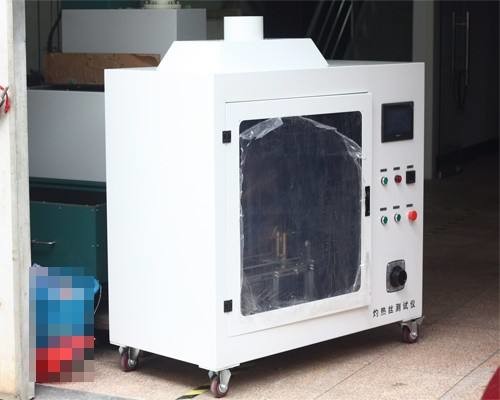

IEC60695-2-10~13 Glow-Wire Fire Testing Equipment

Product Details

Place of Origin: China

Brand Name: SKYLINE

Certification: CE

Model Number: SL-7608

Payment & Shipping Terms

Minimum Order Quantity: 1 unit

Price: negotiated

Packaging Details: plywood case

Delivery Time: 10 work days

Payment Terms: T/T, L/C, Western Union, MoneyGram

Supply Ability: 1 unit/ month

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                flammability test apparatus, flammability testing labs


Standards:	IEC60695-2-10~13, UL746A Etc	Timer:	0～99min 99s
Temperature Range:	500～1000°C	Power Supply:	220V/AC±10%, 50Hz

Standards:	IEC60695-2-10~13, UL746A Etc
Timer:	0～99min 99s
Temperature Range:	500～1000°C
Power Supply:	220V/AC±10%, 50Hz

Product Description

Glow-wire Flammability Testing Equipment IEC60695-2-10~13 GB/T5169

Standards

According to IEC60695-2-10~13,UL746A, IEC829, DIN695, VDE0471etc.

Features

1.The flaming chamber and control part of the integrated design, convenient installation and operation.

2.The shell of chamber and main parts made of stainless steel, which resistant smoke and withstand the rust of gas

3.SCR automatic control system to automatically adjust the current to achieve the purpose of control the precise of temperature;

4.Time and temperature display by digital, convenient for observation and records, stabilization and reliable for use.

Technical parameters

Special of test chamber	0.5 CBN (W1000 * D600 * H1260mm)
Temperature range	500～1000°C, can be adjust and digital displayer.
Temperature error	±10°C (500~750°C) and ±15°C(750~1000°C), the accuracy class of ±0.5.
Temperature sensor	K-type thermocouple which size is Φ0.5, from oversea.
Pressure to specimen	0.8N～1.2N, and the depth of press must not less than 7mm
Timer	0～99min 99s, can be adjust in range
There are 3 timer for this machine, respectively BURNING TIMER (Ta), normal setting it of 30s as standards,Duration burning timer (Ti) and flame die timer.
Time error	±1s
Special layer	Smooth wooden board (thickness is 10mm) with a layer wrapping tissue (12g/m2~30gm2) on the board, and the position at a distance of 200± 5mm
Simple operation, the measuring temperature system is stabilization and reliable, auto temperature compensation.
Power supply	220V/AC±10%, 50Hz

Glow Wire Test Chamber.pdf

Note: can be according to customer’s request for design the displayer by Touch Screen or LCD.

What is glow wire test apparatus?

GLOW WIRE TESTER (also known as Glow Wire Test Apparatus) is designed to carry out fire hazard testing as specified in IEC 60695-2-10 2000-10. Flammability test is to check the 'Resistance to Fire' of electrical insulators that touch directly conducting parts & also parts of insulators.
