Baby Safety Testing Equipment CAMI Infant Dummy Child Dummy Mark I / Mark II

Name: Baby Safety Testing Equipment CAMI Infant Dummy Child Dummy Mark I / Mark II
Brand: SKYLINE
SKU: SL-T610
Rating: 4.7 (152 reviews)

Product Details

Place of Origin: China

Brand Name: SKYLINE

Certification: Calibration Certificate

Model Number: SL-T610

Payment & Shipping Terms

Minimum Order Quantity: 1 unit

Price: Negoitable

Packaging Details: Carton box

Delivery Time: 7 working days

Payment Terms: Western Union, T/T, MoneyGram

Supply Ability: 10 pcs/ month

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                abrasion testing equipment, brake testing equipment


SKYLINE:	Cami Infant Dummy	Weight:	7.5 Lb Or 3.4 Kg,17.5 Lb Or 7.94 Kg
Standards:	ASTM F2088,ASTM F2167,ASTM F833	Standing Height:	19.85 In Or 50.42 Cm,26.25 In Or 66.68 Cm
Seated Height:	17.50 In Or 44.45 Cm	Dimension:	703117 Cm

SKYLINE:	Cami Infant Dummy
Weight:	7.5 Lb Or 3.4 Kg,17.5 Lb Or 7.94 Kg
Standards:	ASTM F2088,ASTM F2167,ASTM F833
Standing Height:	19.85 In Or 50.42 Cm,26.25 In Or 66.68 Cm
Seated Height:	17.50 In Or 44.45 Cm
Dimension:	703117 Cm

Product Description

Baby Safety Testing Equipment CAMI Infant Dummy Child Dummy -Mark I, Mark II

Product introduction

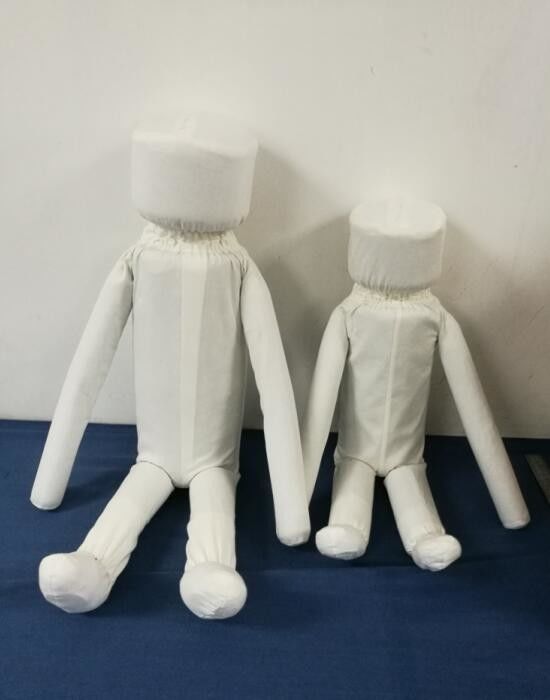

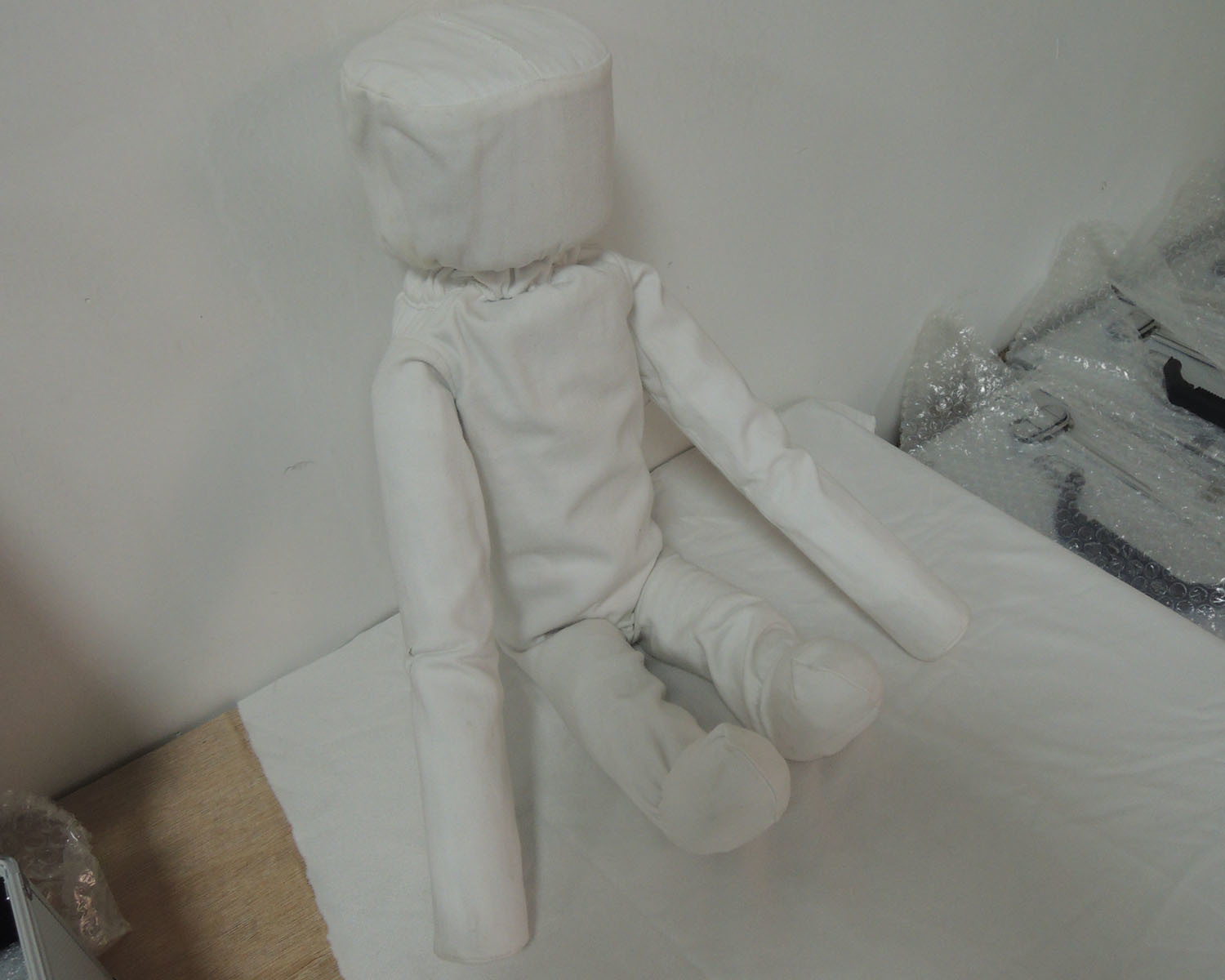

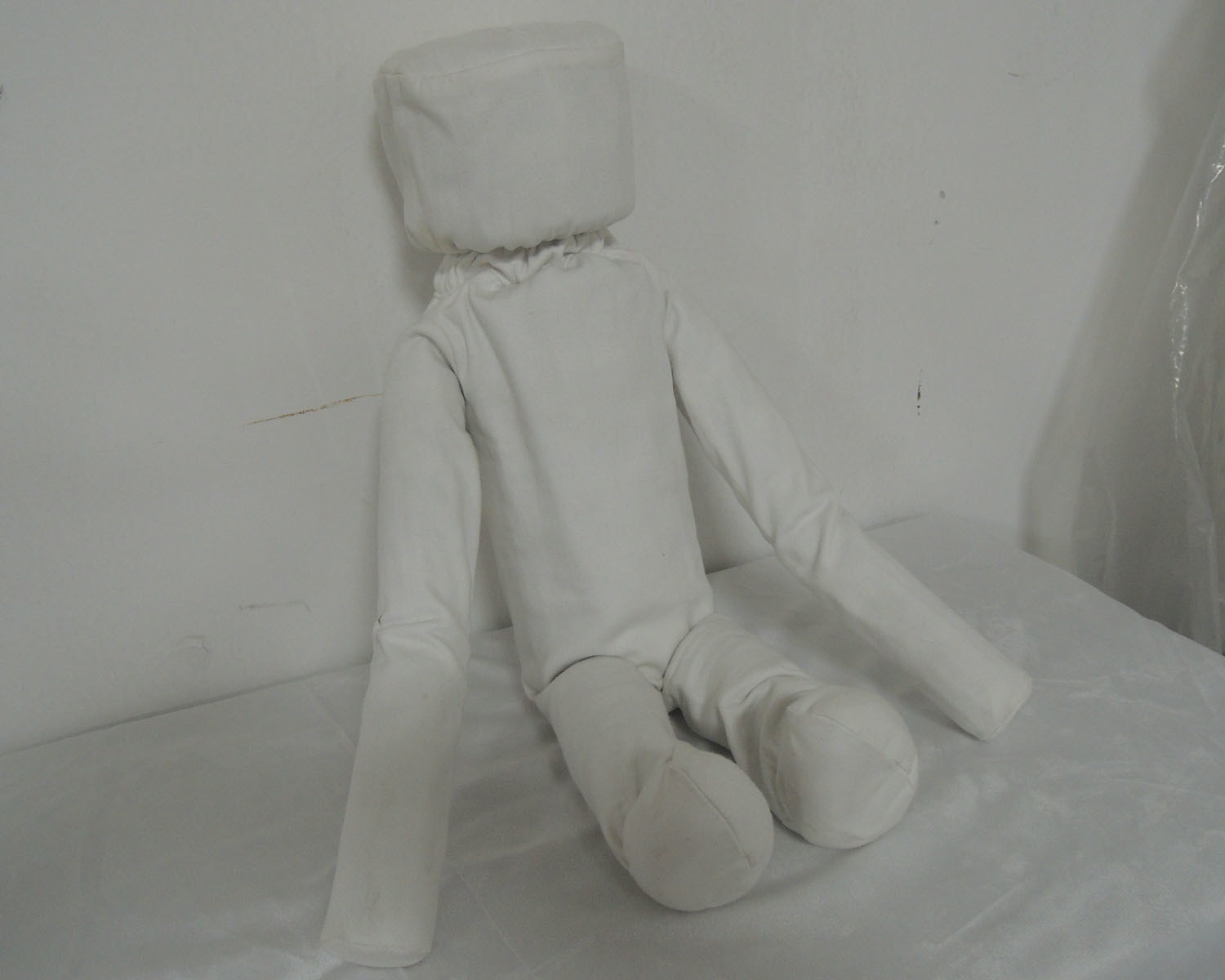

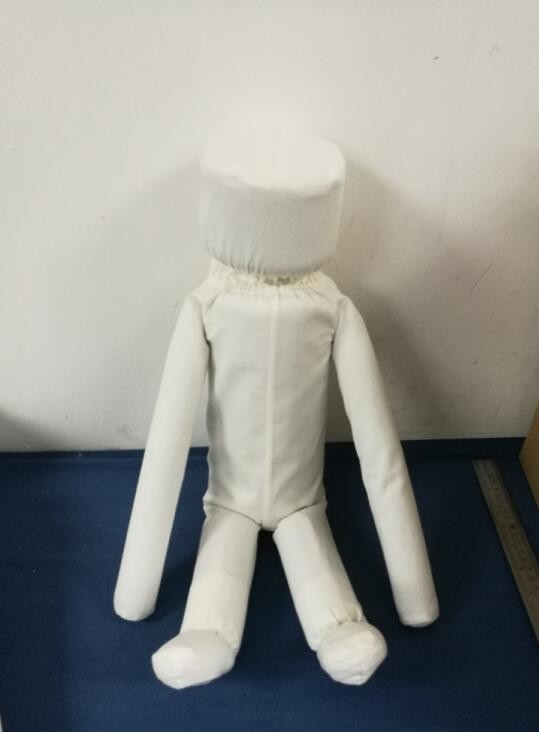

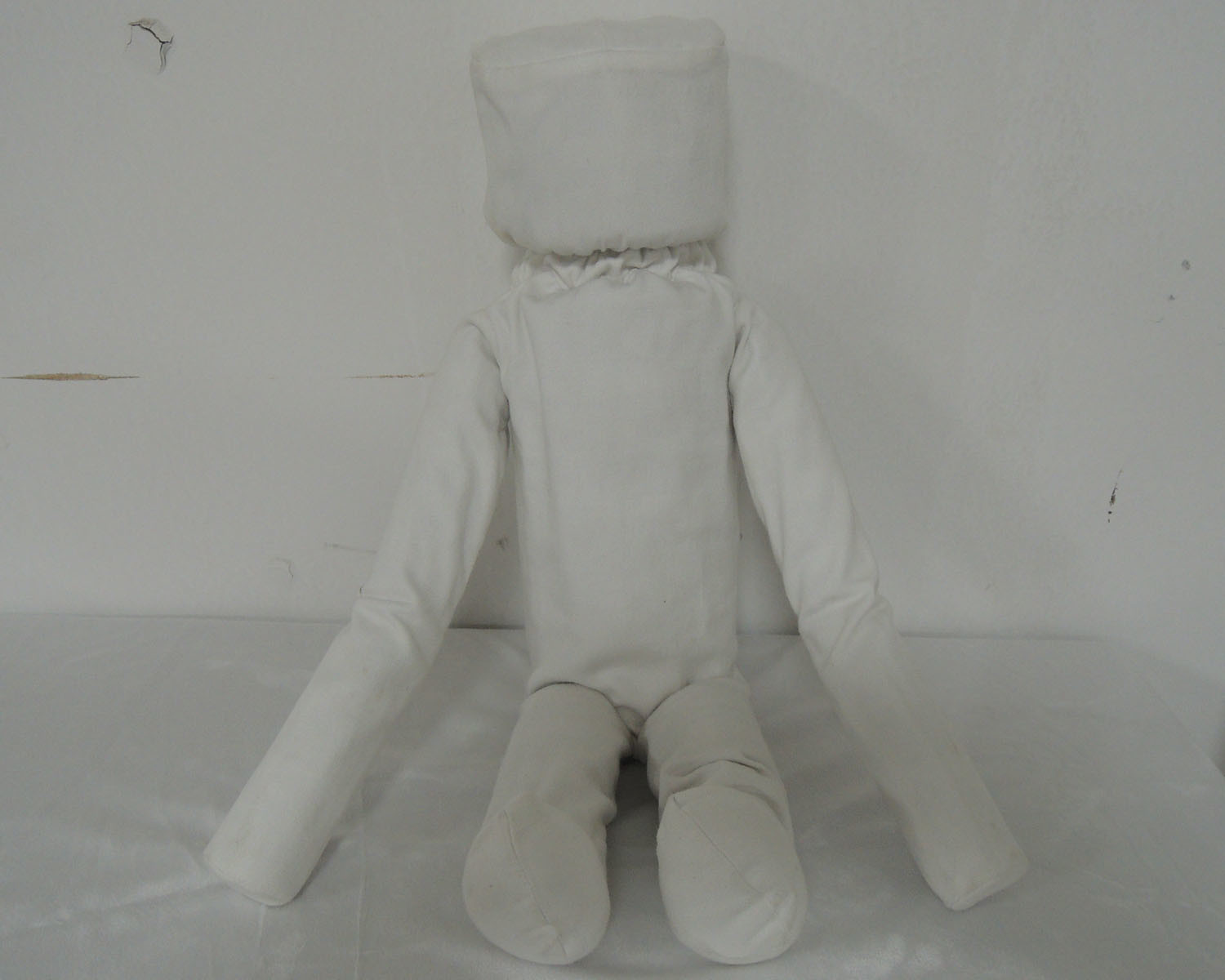

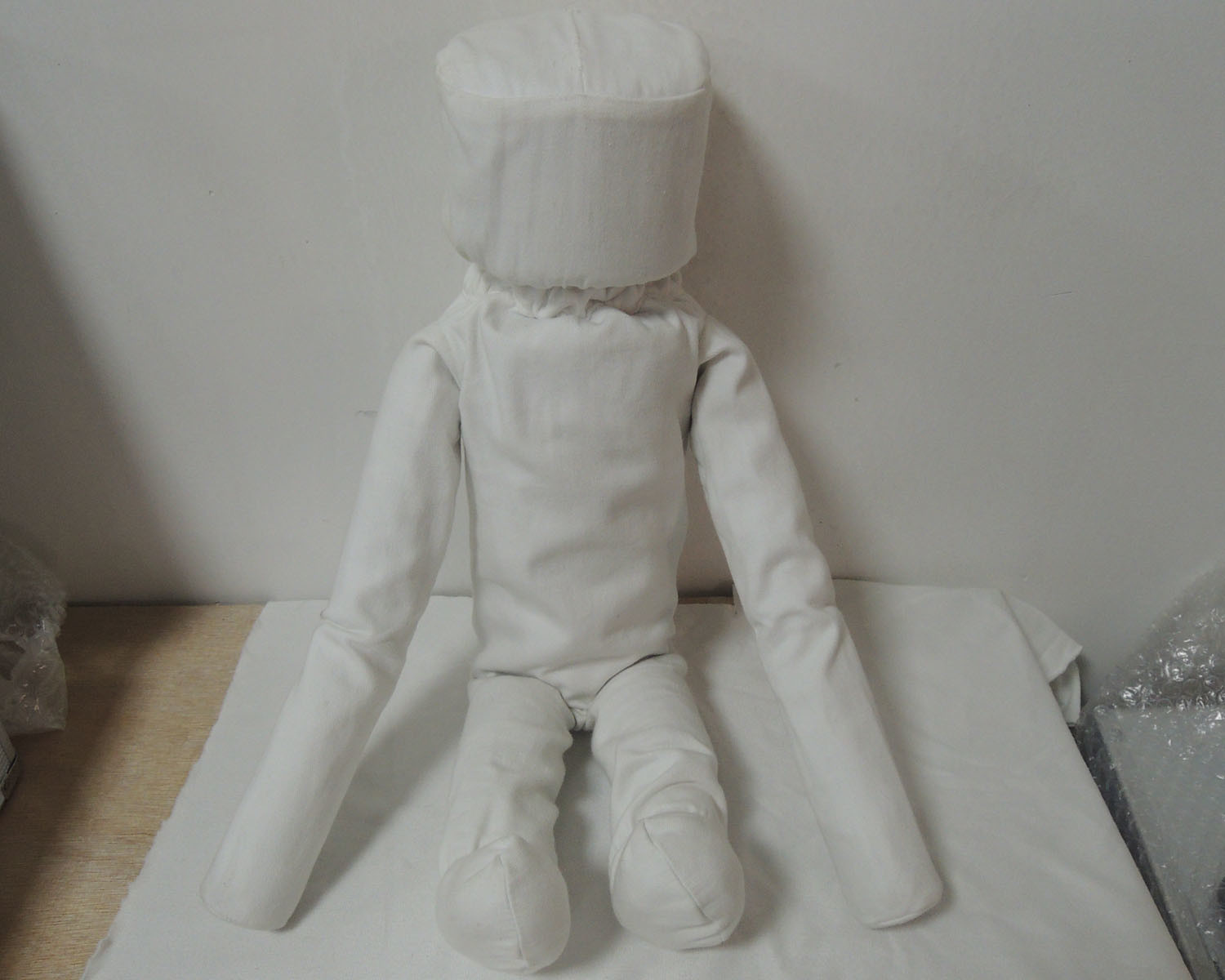

This dummy is based upon a leather skeleton, which has approximately the external shape of the dummy when viewed frontally. Cast lead or aluminum blocks are attached to the head, upper and lower arms, upper and lower parts of the torso and upper and lower legs to approximate the mass distribution of the corresponding infant. The aluminum blocks are used on arms and legs to prevent reverse motion at elbows and knees. These weights are riveted to the skeleton. CAMI Infant Dummy, Newborn Dummy ,6 Month Old Dummy

Uses

Used to test the safety of baby toys and other baby products

Principle: Use dummy to simulate the scenario where children use toys and other baby products, and evaluate the potential dangers of baby products through simulated test data

Function

According to the test needs, simulate the size and weight of each part of the child's body

Technical parameters

Item	CAMI Newborn Dummy Mark I	CAMI Infant Dummy Mark II
Model	(newborn)	(6 months old)
Weight	7.5 lb or 3.4 kg	17.5 lb or 7.94 kg
Head Circumference	13.80 in or 35.05 cm	17.00 in or 43.18 cm
Chest Circumference	13.70 in or 34.80 cm	/
Waist	/	17.50 in or 44.45 cm
Standing Height	19.85 in or 50.42 cm	26.25 in or 66.68 cm
Seated Height	/	17.50 in or 44.45 cm
Packaging	Aluminum box
Dimension	703117 cm
Standards	ASTM F2088,ASTM F2167,ASTM F833	ASTM F2012,ASTM F404 ASTM F2088,ASTM F2167 ASTM F833-2013b,ASTM F2194-13a
INCLUDE	Certificate	Certificate

CAMI Infant Dummy Child Dummy -Mark I, Mark II.pdf...

Baby Safety Testing Equipment CAMI Infant Dummy Child Dummy Mark I / Mark II 0

Uses: Used to test the safety of baby toys and other baby products

Principle: Use dummy to simulate the scenario where children use toys and other baby products, and evaluate the potential dangers of baby products through simulated test data

Function: According to the test needs, simulate the size and weight of each part of the child's body
