IS9873/ ISO 8124 Toys Safety Testing Equipment Mouth Actuated Toys Tester

Place of Origin CHINA
Brand Name SKYLINE
Certification CE
Model Number SL-S23
Minimum Order Quantity 1 unit
Price negoitable
Packaging Details plywood case
Delivery Time 10 work days
Payment Terms T/T, Western Union,
Supply Ability 1 unit
Product Details
SKYLINE: Mouth Actuated Toys Durability Tester Standards: IS 9873,ISO 8124-1 16 CFR 1500 ASTM F963 4.8 EN-71
Accessories: Tube Gripper 2pcs Test Speed: 120+/-10/min
Satisfied Conditions: 295 ± 10cm3 Warranty: 18 Months
Highlight:

stability test chamber

,

swings testing equipment
Product Description

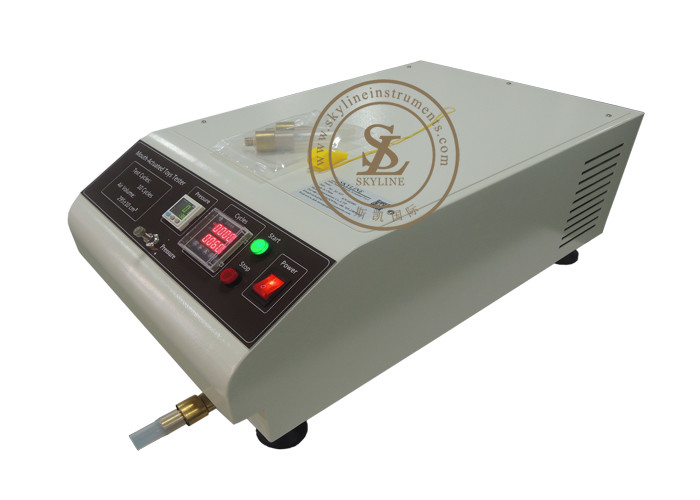

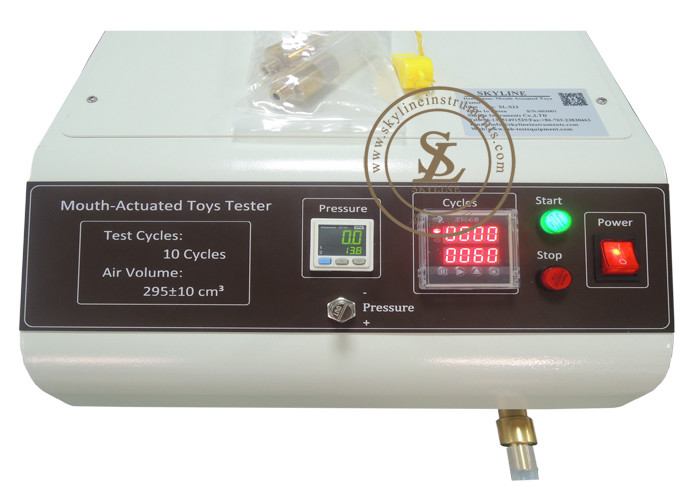

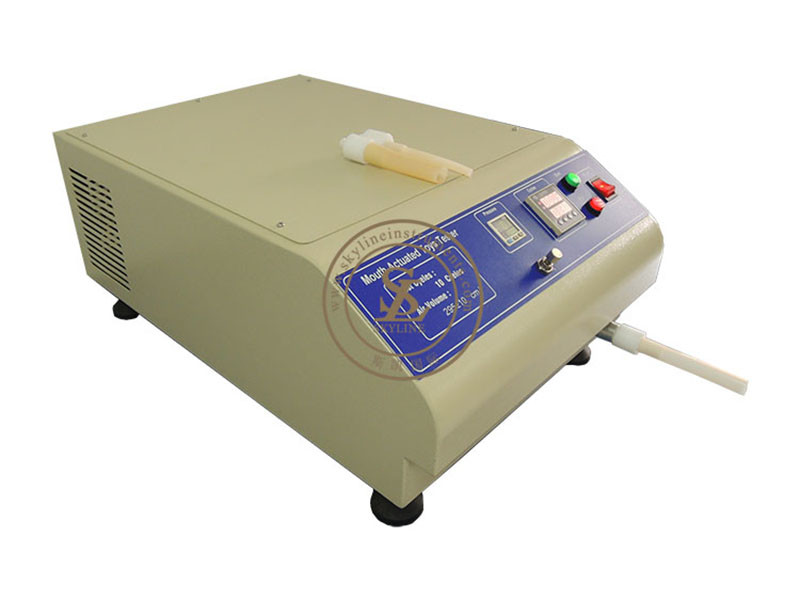

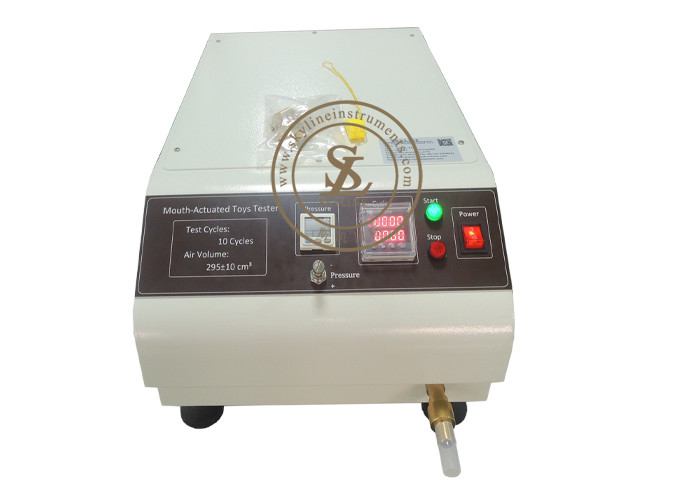

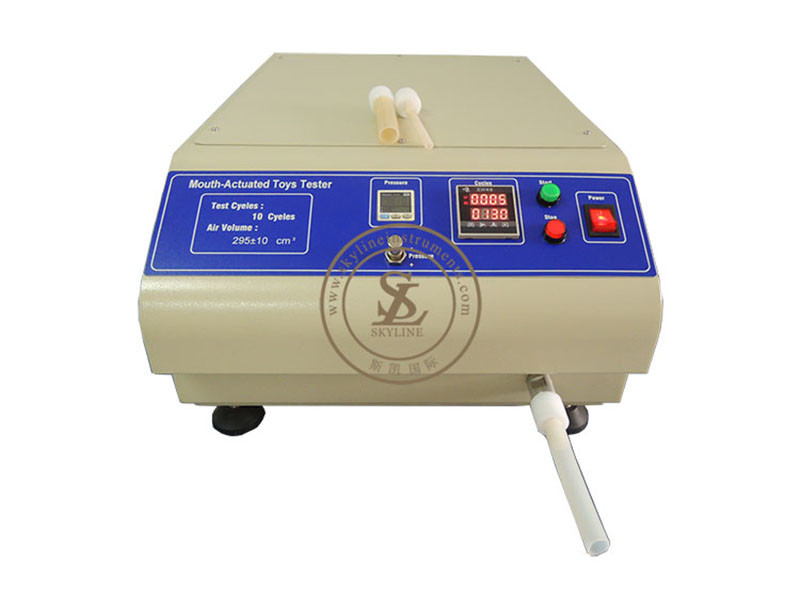

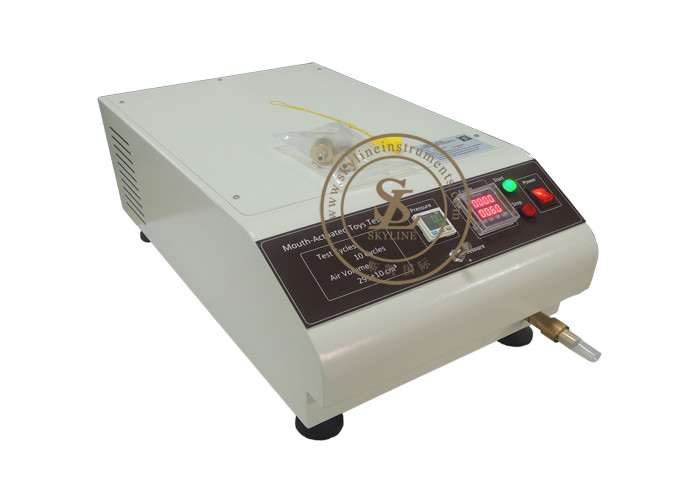

IS9873-1 Mouth Actuated Toys Durability Tester Toys Testing Equipment



Application

This testing is suitable for testing the safety capability of Mouth Toys.
Satisfied conditions:create 295 ± 10cm3 gas volume within 5s at least,And can be alternately blowing and suction toys 10 times. Equipped with imported high-precision pressure gauge. Gas flow can control by the valve.
Mouth Actuated Tester Testing Safety requirements
1. Mouth toys and toy in which to remove the mouthpiece and cannot be a Widget
2. The un-removed mouthpiece in the mouth moving toys, run soaking test, the torque test and tensile test shall not create small parts
3.The mouth toys if they contain loose parts, when running the durability test shall not create small parts ( alternately blow and suction toys using 295 ± 10cm3 gas volume within 5 seconds and repeat 10 times)
4. Removable or cannot remove the mouthpiece of the balloons must comply with the requirements of 1 and 2

Technical parameters

 Test Speed  120+/-10/min
 Testing times  10 times
 Gas-pressure meter  Digital,Units, Kpa, The positive and negative pressure display
 Dimensions  46.5x60x25cm
 Weight  30kg
 Standards  ISO 8124-1 16 CFR 1500 ASTM F963 4.8 EN-71
  Accessories  Tube gripper 2pcs
