Professional Toys Testing Equipment EN71 1mm Liquid Leakage Testing Needle

Place of Origin CHINA
Brand Name SKYLINE
Certification Calibration certificate
Model Number SL-S15
Minimum Order Quantity 1 unit
Price negoitable
Packaging Details carton box
Delivery Time in stock and can be shipped immediately
Payment Terms T/T, Western Union,
Supply Ability 1 unit
Product Details
SKYLINE: Liquid Leakage Testing Needle Standards: ISO 8124-1 ASTM F963 EN-71
The Top Radius: 0.5MM Load: 5N
Dimension Tolerance: + /-0.05mm Warranty: 18 Months
Highlight:

stability test chamber

,

swings testing equipment
Product Description

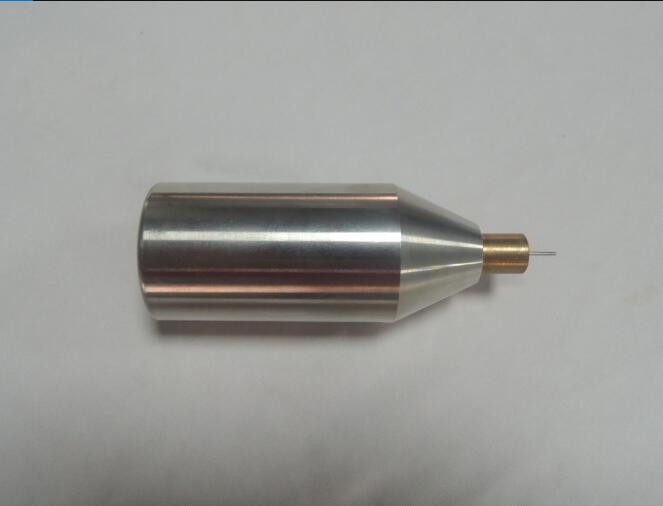

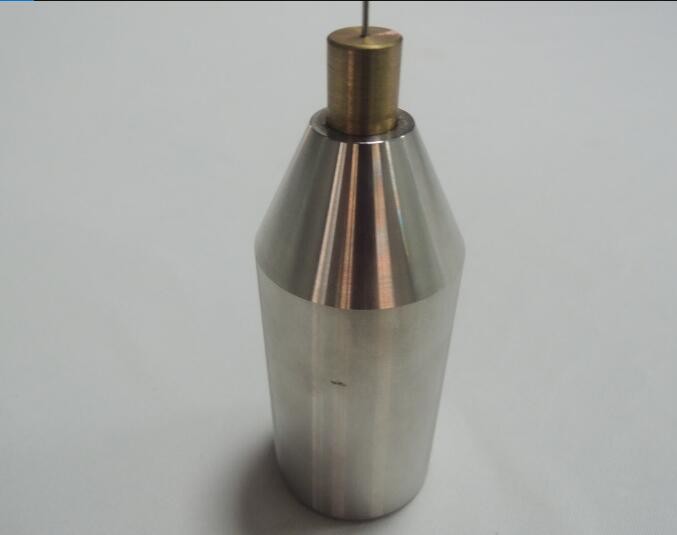

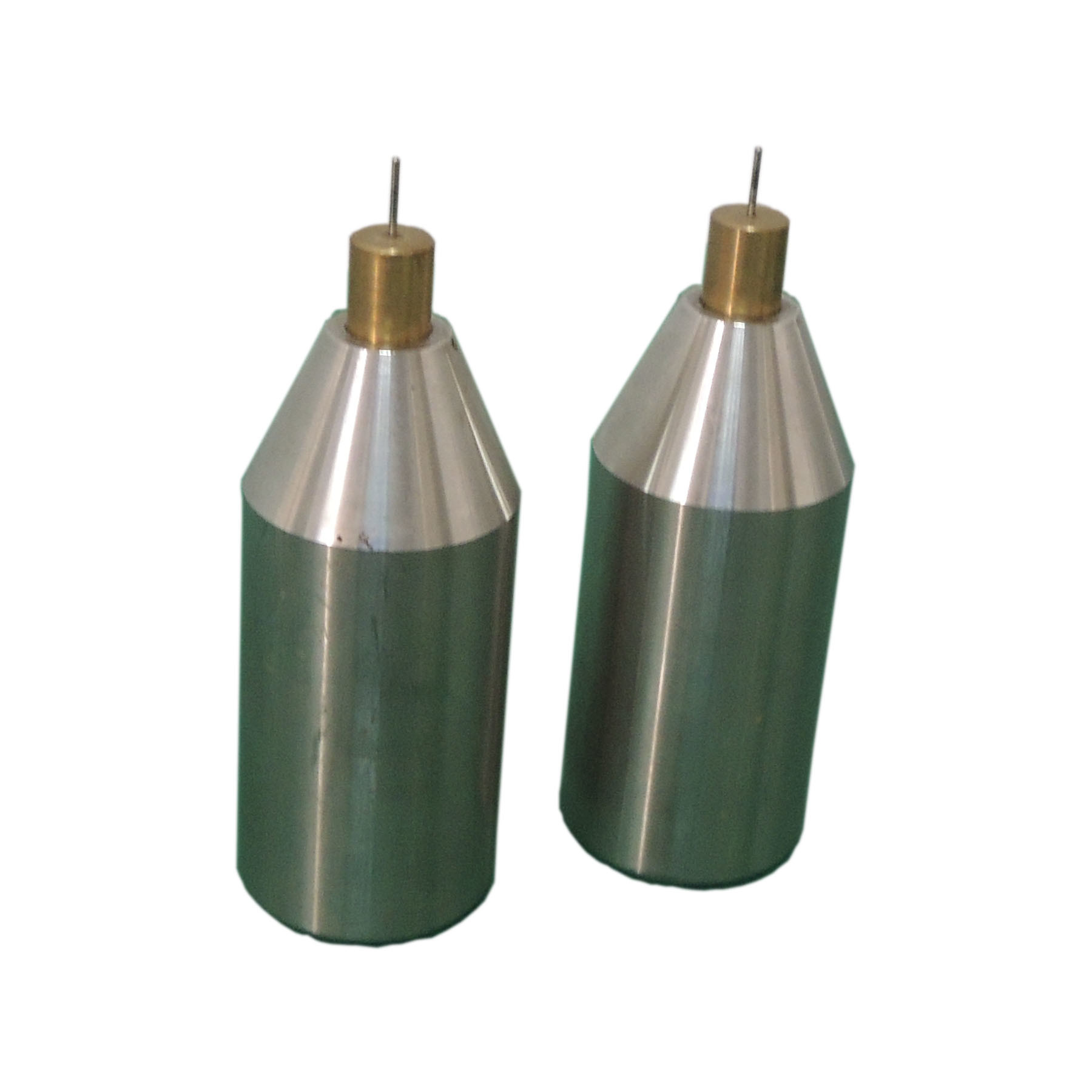

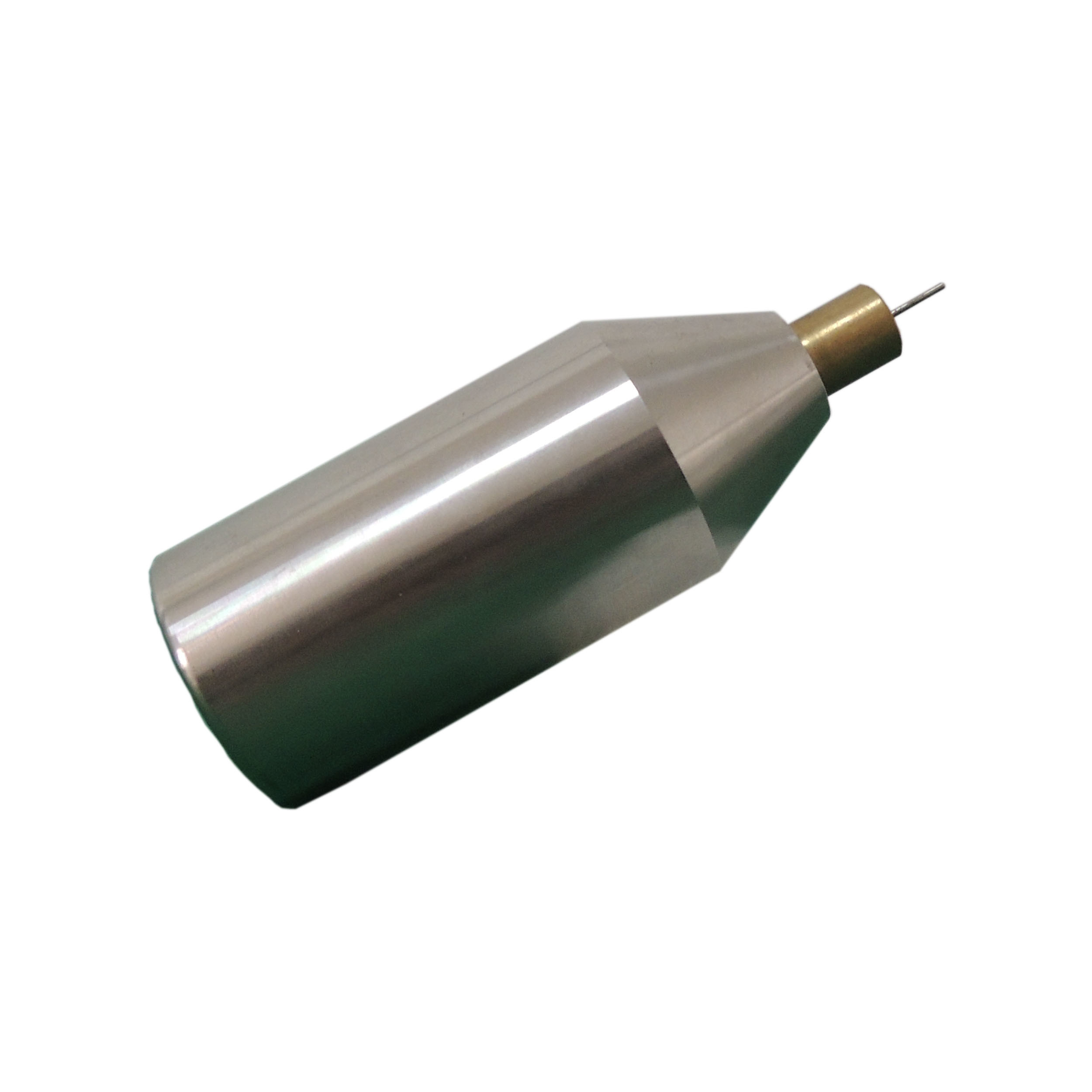

EN 71 Toys Testing Equipment Liquid Leakage Testing Needle


 Product Information

 Diameter 1MM , the top radius 0.5MM, load 5N , for leakage teating.
 Standard  EN71-1; GB6675 A.5.19
 Dimension Tolerance  + /-0.05mm


Testing Standards
ISO 8124-1 ASTM F963 EN-71



Procedure

Within 30 s of removing the toy from conditioning, apply a force of (5+0.50)N to the external surface of the toy through a steel needle with a diameter of 1 mm 0,1 mm and with a tip radius of 0,5 mm 0,05 mm.



How do you do a leakage test?

The leak test is performed by immersing a part, usually a sandwich composite structure, in a hot water tank. The temperature of the water induces the expansion of air in the structure, and if a crack or a delamination is present, gas bubbles escape the structure and are immediately detected by visual inspection.



Professional Toys Testing Equipment EN71 1mm Liquid Leakage Testing Needle
