IEC 60332-1-1~3：2004 Single Cable Vertical Flame Tester
IEC 60332-1-1~3：2004 Single Cable Vertical Flame Tester

IEC 60332-1-1~3：2004 Single Cable Vertical Flame Tester

Product Details

Place of Origin: China

Brand Name: SKYLINE

Certification: CE

Model Number: SL816

Payment & Shipping Terms

Minimum Order Quantity: 1 unit

Price: negotiated

Packaging Details: Plywood case

Delivery Time: 10 working days

Payment Terms: T/T, L/C, Western Union, MoneyGram

Supply Ability: 1 unit/ month

Get Best Price

Product Details

Product Description
Product Details
Highlight:

flammability test apparatus

,

flammability testing labs

SKYLINE:
Single Cable Vertical Flame Tester
Vertical Burning Chamber:
W300xH1200xD450mm
Standard:
IEC 60332-1-1~3：2004
Power:
220V, 5A
Dimension:
560 Mm (W) X 380 Mm (D) X 1400 Mm (H)
Weight:
36kg
SKYLINE:
Single Cable Vertical Flame Tester
Vertical Burning Chamber:
W300xH1200xD450mm
Standard:
IEC 60332-1-1~3：2004
Power:
220V, 5A
Dimension:
560 Mm (W) X 380 Mm (D) X 1400 Mm (H)
Weight:
36kg
Product Description

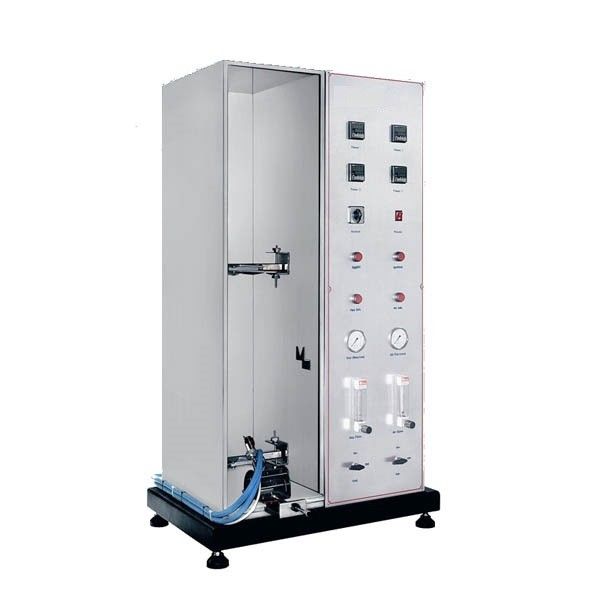

Single Cable Vertical Flame Tester for Vertical Flame Spread Test

Product introduction

Single Cable Vertical Flame Tester is used for the vertical flame propagation of a single insulated wire or cable is a bench scale test to determine the resistance of a single cable to a 1kW flame application. It conforms to IEC60332-1-2 (flame propagation) and IEC60332-1-3 (test for flaming droplets).

Product parameters

1.Stainless steel box, the height of 1300mm, width of 300mm, depth of 450mm.
2.Two stainless steel rods, can bind single wire cable or optical cable sample.
3.1KW mixed standard burner, can provide the standard test fire source.
4.Regulating gas and air flow rate of the rotor flow meters.
5.Pressure gauge and pressure relief valve to ensure that the pressure output is 0.1MPA.

Product Feature and Application

1.Electric spark ignition device.
2.Flame height measuring tool.
3.Up to four time modes can be selected according to different sample diameters.
4.Calibration kit for the testing flame.

Application:Single wire and cable burning tester for vertical flame spread testing of single wire and cable or fiber optic cable, and to verify the burning of drip in flame conditions.

Product Details

Standards:

GB/T 18380.1~2:2011,GB/T 18380.11~13:2008
IEC 60332-1-1~3:2004
Dimension:560 mm (W) x 380 mm (D) x 1400 mm (H)
Weight:36kg

Installation requirements

Power requirements: 220V, 5A

Ambient temperature: 10 ° C to 35 ° C
Gas requirements: industrial propane, compressed air

Single Cable Vertical Flame Tester

What are the different types of cabling?
Cables are mainly used to carry electrical and telecommunications signals. There are various types of cables, including twisted pair cable, coaxial cable, multi conductor cable and fiber optic cable. A twisted pair cable has two cables twisted around each other and is mainly used to carrying signals.
