Single Insulated Wire and Cable Vertical Flame Test

Place of Origin China
Brand Name SKYLINE
Certification CE
Model Number SL-7603B
Minimum Order Quantity 1 unit
Price negotiated
Packaging Details plywood case
Delivery Time 10 working days
Payment Terms T/T, L/C, Western Union,
Supply Ability 1 unit/ month
Product Details
Standards: IEC60332-2-1:2004 Vertical Burning Chamber: W300xH1200xD450mm
Length Of Specimen: 600±25mm Gas Flow Range: 0.1-1L/min
Area Flow Range: 0.1-1m3/h SKYLINE: Single Insulated Wire And Cable Vertical Flame Test Equipment
Highlight:

flammability test apparatus

,

flammability testing labs
Product Description

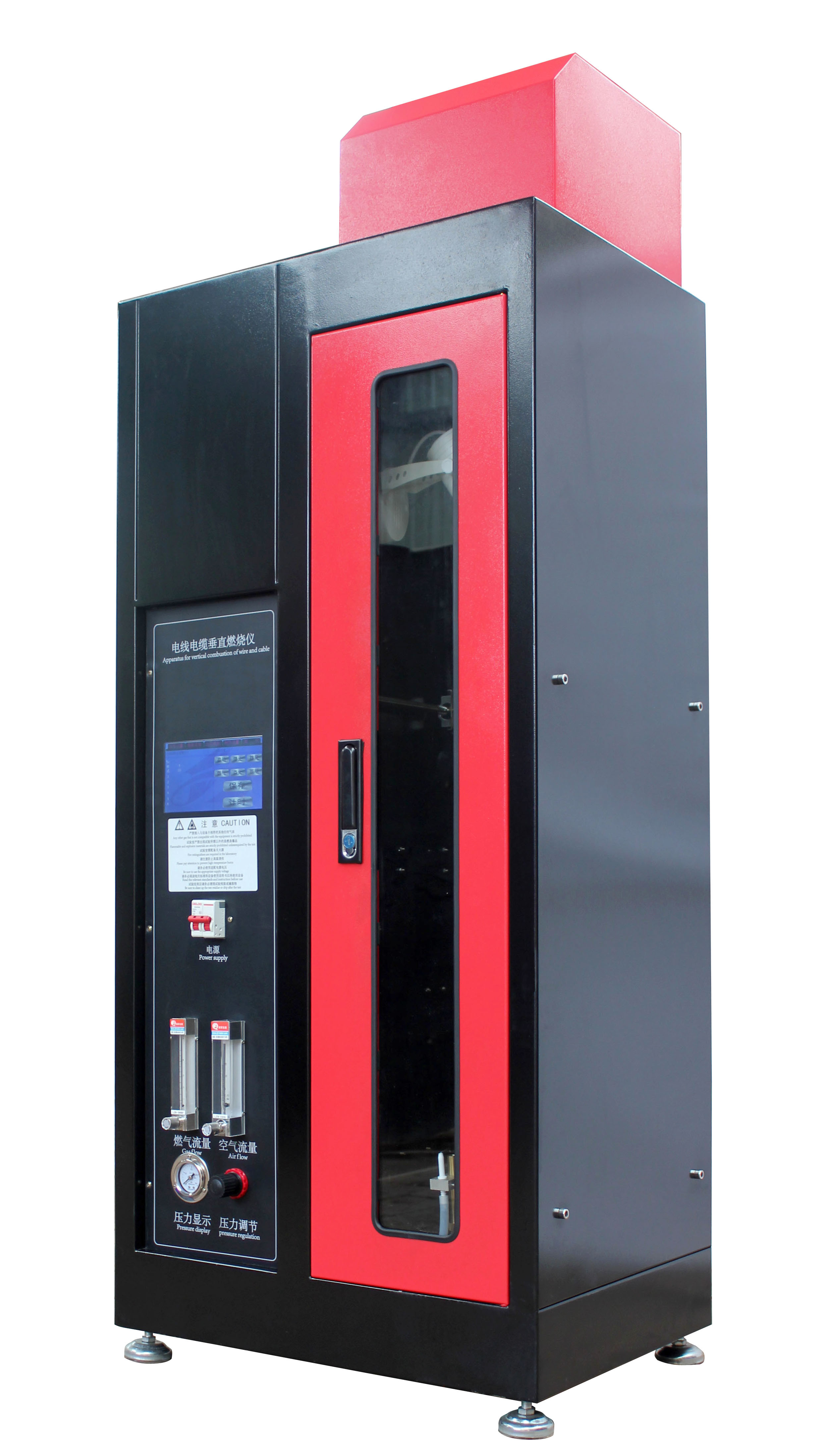

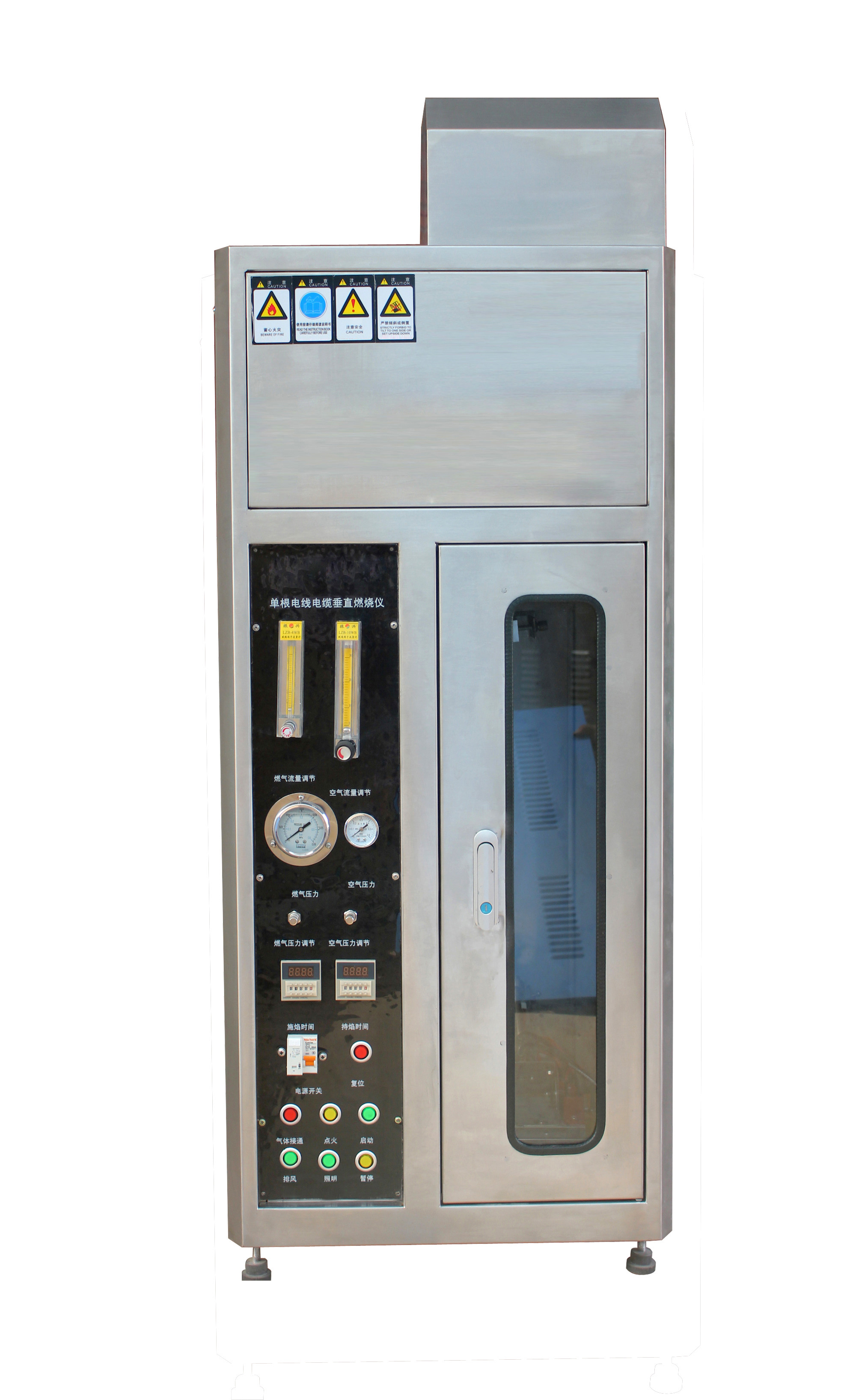

Single Insulated Wire and Cable Vertical Flame Test Equipment


Application
Applies to check thesingle insulation wire and cable vertical spreading test which total section area less than 0.5mm2.

Standards
According to  IEC60332-1-1:2004,  IEC60332-1-2:2004,  IEC60332-1-3:2004, EN50265-1, EN50265-2-1.

Techncial parameters
 Vertical burning chamber  W300xH1200xD450mm
 Gas  Use high purity propane gas or liquefied petroleum gas (provide by user-self)
 Specimen length  600±25mm
 Area of specimen  Total section area less than 0.5mm2
 Testing temperature  This device is located in a stuffiness room and the temperature keeping the 23±10℃ for testing
 Burning time  continuously setting between 0.1-999.9S, during the setting time flame could continuously burning the specimen
 Control function  Switch can choose to be manual or automatically according to the actual needed
 Gas flow range  0.1-1L/min
 Area flow range  0.1-1m3/h
 Burner  500W for standards power, 125±25mm for total height of the flame



Automotive Single Wire.pdf

What are the different types of cabling?
Cables are mainly used to carry electrical and telecommunications signals. There are various types of cables, including twisted pair cable, coaxial cable, multi conductor cable and fiber optic cable. A twisted pair cable has two cables twisted around each other and is mainly used to carrying signals.
