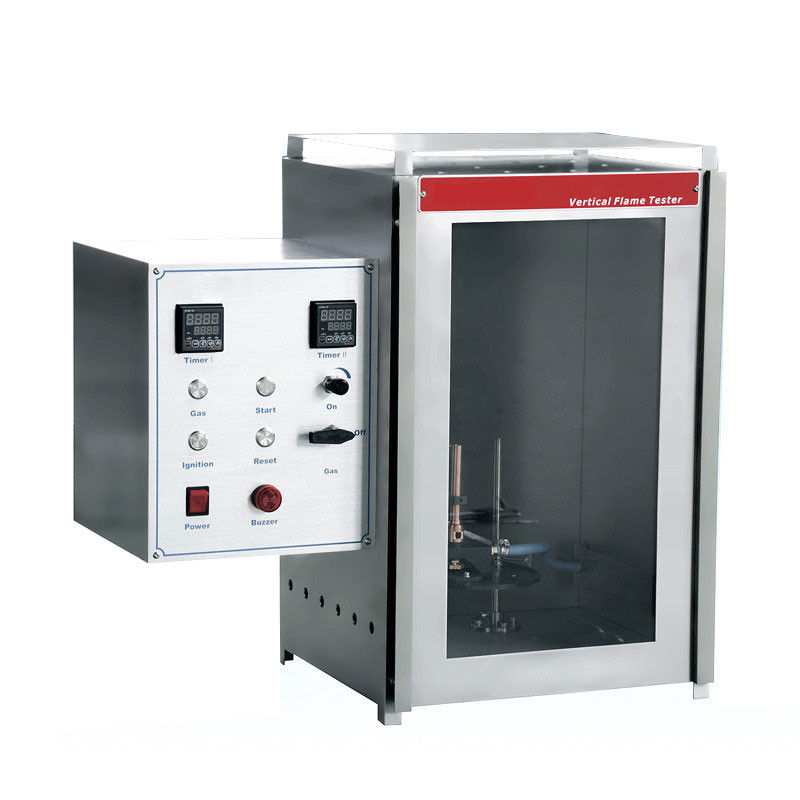

Fire Testing Equipment AQ 6103,EN 60903 Vertical Flame Tester
Description
According to GB/T 17622-2008 and EN 60903 the insulating glove fire resistance test device is developed, which is suitable for live work insulating gloves fire resistance test.
Performance characteristics
1. Standard stainless steel box with transparent observation window can detect flame spread rate in time.
2. One stopwatch timer and one ignition device each.
3. Needle valve regulates the height of flame.
4. The burner is fixed on the sliding track for easy operation. The needle valve can adjust the flame height.
5. Equipped with ASTM D5025 standard Bunsen lamp with inner diameter of 9.5 mm (+0.3 mm), the flame temperature and height can be adjusted.
6. Equipped with GB/T 17622-2008 6.6.2 standard stainless steel sample stand two;
7. Equipped with flame height gauge.
Standard:AQ 6103,EN 60903:2003,GB/T 17622:2008
Application: Safety Protection
Dimension 500mm (W) X 550mm (H) X 300mm (D)
Weight 19 KG
Installation requirements
Electrical requirements: 220V, 50HZ, 3A
Environmental Requirements: Temperature (20+2)degree C, Humidity (65+5)%
Gas requirements: propane
How does fire retardant work?
Fire retardant contains salts (typically fertilizers) that alter the way wildfires burn, decreasing fire intensity and slowing the advance of the fire, even after the water in the fire retardant has evaporated. The water in long-term fire retardants serves primarily to aid in uniform dispersal of the chemical over the target area.
