AQ 6103 ISO 6940 ISO6941 ISO15025 Fire Testing Equipment Vertical Flame Tester

Name: AQ 6103 ISO 6940 ISO6941 ISO15025 Fire Testing Equipment Vertical Flame Tester
Uploaded: 2025-03-04T14:05:44-06:00
Duration: 10 s
Description: High quality AQ 6103 ISO 6940 ISO6941 ISO15025 Fire Testing Equipment Vertical Flame Tester from China, China's leading Fire Testing Equipment product market, With strict quality control Fire Testing Equipment factories, Producing high quality AQ 6103 ISO 6940 ISO6941 ISO15025 Fire Testing Equipment Vertical Flame Tester products.

Product Details

Place of Origin: CHINA

Brand Name: SKYLINE

Certification: CE

Model Number: SL811

Payment & Shipping Terms

Minimum Order Quantity: 1 UNIT

Price: Fire Testing Equipment

Packaging Details: strong packing

Delivery Time: 10 work days

Payment Terms: T/T, Western Union,paypal

Supply Ability: 3 pcs/month

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                flammability test apparatus, flammability testing labs


Manufactured:	According To ISO 15025 Standards	The Angle Of The Burner:	Can Be Pre-setted And Adjusted Automatically
Flame Application Time:	Can Be Pre-setted And Operate Automatically	Size:	800mm (L) X 600 Mm (W) X 900mm (H)
Weight:	40KG	Power Supply:	220V, 50HZ

Manufactured:	According To ISO 15025 Standards
The Angle Of The Burner:	Can Be Pre-setted And Adjusted Automatically
Flame Application Time:	Can Be Pre-setted And Operate Automatically
Size:	800mm (L) X 600 Mm (W) X 900mm (H)
Weight:	40KG
Power Supply:	220V, 50HZ

Product Description

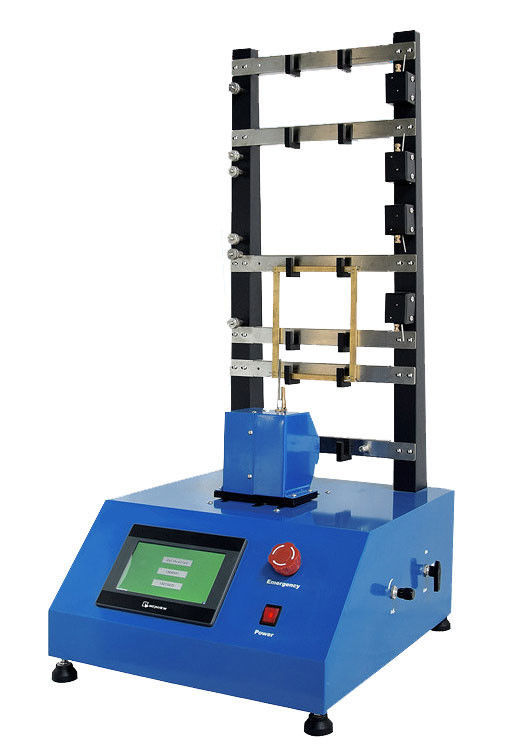

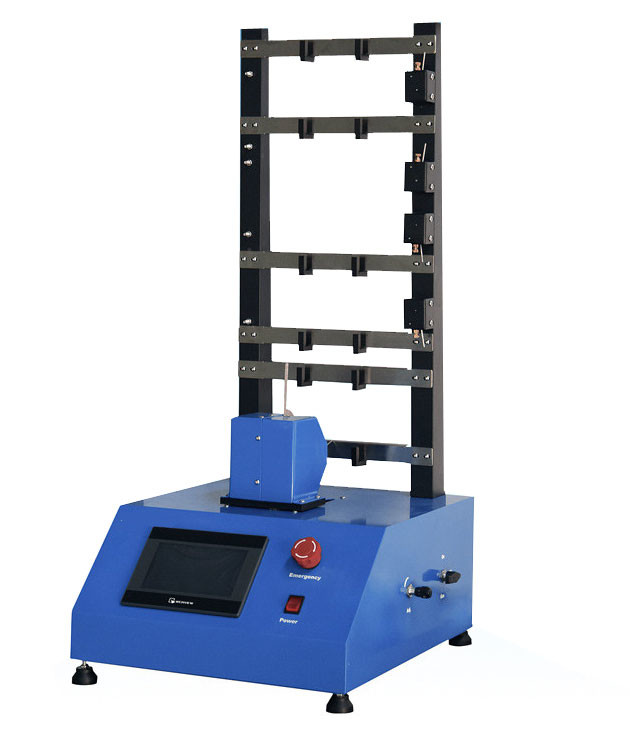

ISO15025 Fire Testing Equipment Vertical Flame Tester

Product Introduction

Vertical Flame Tester is suitable for the measurecan be pre-setted and adjusted automatically.ment of limited flame spread properties of Protective clothing.. A defined flame from a specified burner is applied for 10 s to the surface or the bottom edge of textile specimens which are vertically oriented.

Feature
The apparatus is designed and manufactured according to ISO 15025 standards.
The apparatus can be updated to meet the requirement of ISO6941,ISO 6940 etc by using different specimen holders.
The apparatus consists of mounting frame, gas burner, test specimen holder with Supporting pins.
The angle of the burner can be pre-setted and adjusted automatically.
Flame application time can be pre-setted and operate automatically.
Afterflame time and afterglow time recorded by LCD screen

Standard

AQ 6103,ISO 6940:2004, ISO 6941:2003, ISO 15025:2000,GB/T 5456:2009

Size 800mm (L) X 600 mm (W) X 900mm (H)

Weight 40KG

Installation requirements

Electrical requirements: 220V, 50HZ

Environmental Requirements: Temperature (20+2)degree C, Humidity (65+5)%

Gas requirements: propane gas

How does fire retardant work?
Fire retardant contains salts (typically fertilizers) that alter the way wildfires burn, decreasing fire intensity and slowing the advance of the fire, even after the water in the fire retardant has evaporated. The water in long-term fire retardants serves primarily to aid in uniform dispersal of the chemical over the target area.
