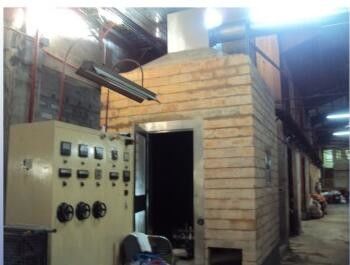

UL Cable Vertical Tray Fire Testing Equipment

Product Details

Place of Origin: China

Brand Name: SKYLINE

Certification: CE

Model Number: SL-7601S

Payment & Shipping Terms

Minimum Order Quantity: 1 unit

Price: negotiated

Packaging Details: plywood case

Delivery Time: 20 working days

Payment Terms: T/T, L/C, Western Union, MoneyGram

Supply Ability: 1 unit/ month

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                flammability test apparatus, flammability testing labs


Standards:	UL1685-2007, UL2556-2007	Components:	Ignition Source & Supply Fire Control System Etc
Control System:	5.7inch Color Touch Screen	Burner:	L341mm×D30mm With 242 Holes

Standards:	UL1685-2007, UL2556-2007
Components:	Ignition Source & Supply Fire Control System Etc
Control System:	5.7inch Color Touch Screen
Burner:	L341mm×D30mm With 242 Holes

Product Description

UL Cable Vertical-Tray Flammability Testing Equipment With 5.7inch Color Touch Screen

Application

Apply to check the vertical-tray fire test for determining values of cable flame propagation and smoke release when the cables are subjected to a flaming ignition source. (It is nothing to the purpose of cables, such as the electric power, telecommunications etc.)

Main components

Main consist of Ignition source & supply fire control system, collection hood & exhaust duct flux control system, pressure measurement instrumentation of gas, smoke measurement instruments & temperature measurement system, flame height measurement system etc.

Standards

According to the clause 9.6 & 9.7 of UL1685-2007, UL2556-2007

Main parameter

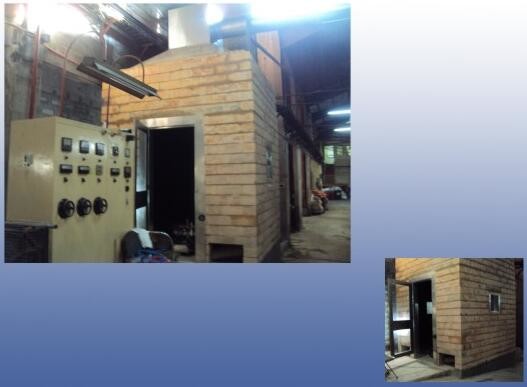

Test room	Fire resistance bricks for walls and which density is 1698kg/m3, Interface spray black paint, and the outer size of the room is W2438×D2438×H3353mm
Door	Stainless steel frame and wired-glass door, the overall size is W0.9× H2.0m
Smoke collection hood	Which made by stainless steel, each side is to be sloped 400, the hood as a cube and each side length is 914mm, there is a dust mesh under the hood and each side length is 610mm
Observation window	Which as a square and each side length is 457mm, 1295mm distance from the lower side of the window to floor, 1143mm distance from right of the window to the wall
Air inlets	which size are 559×343mm, 914×305mm, 2438×343mm
Exhaust duct	L9000×φ406mm, install it at the centered in on the right side of the cube hood
Cable tray	H2400mm, the rundle as a square which size is L305×W25×D25, and both rundles distance is 299mm
Burner	L341mm×D30mm with 242 holes
Gas flux	13.2L/min, 0.1Mpa for gas pressure
Flux checking	The differential pressure flowmeter sense smoke pipeline flow speed , provide basis for the control of fan speed
Light transmittance	photocell sense the smoke density during the flaming
Height of flame	Infrared visible light show the current height of the flame real-time
Special software	Draw up the curve by the pip flow, smoke density, height of the flame ,and form a table automatically, through the printer printing
Control system	5.7inch color touch screen, PLC from Japanese Panasonic, SCM, 16 bits high-performance AD transform etc

How are fire protection products tested?
Many fire tests are run by official laboratories for the purpose of product certification. However, some manufacturers of fire protection products also maintain their own facilities and run tests for R & D purposes before going to the expense and exposure of a test at a third party facility.
