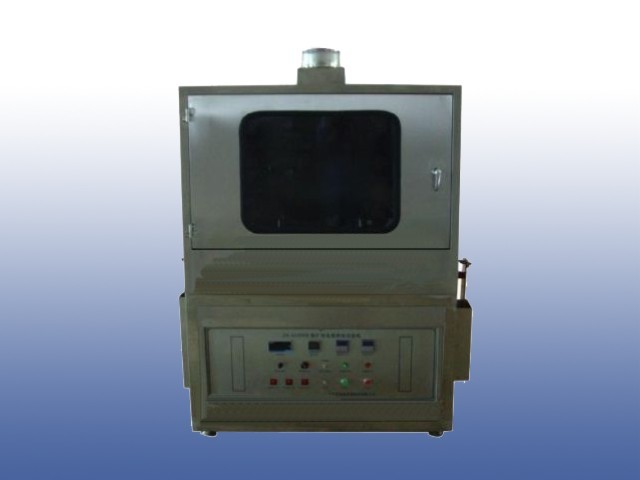

Fire Testing Equipment 95% Gas Purity Mining Cable Burning Tester

Place of Origin China
Brand Name SKYLINE
Certification CE
Model Number SL-7607
Minimum Order Quantity 1 unit
Price negotiated
Packaging Details plywood case
Delivery Time 10 work days
Payment Terms T/T, L/C, Western Union,
Supply Ability 1 unit/ month
Product Details
Standards: MT386-1995 And MT818.1～3-2009 Burning Timer: 0.1-999.9S/H/M
Gas: Purity ≥ 95% Temperature Sensor: 0～800℃
Highlight:

flammability test chamber

,

flammability testing labs
Product Description

95% Gas Purity Mining Cable Burning Tester MT386-1995 / MT818.1～3-2009


Application
Apples to check the coal mine cable for flaming resistance test and cable connector head flaming test.

Standard
According to MT386-1995 and MT818.1～3-2009

Technology parameters
 Load current  AC10.0～3000A adjustable, Adopt the touch button for setting
 Burner  Inner diameter is 9.5mm, burner tube made by H62 brass
 Flame height  inner flame is 75±5mm and outside flame is 125±10mm
 Gas  Methane which the purity ≥ 95%
 Exhaust system  Stop during the testing and Start after testing by manual
 Temperature Sensor  0～800℃,K style thermocouple: φ1mm*50mm.There is buzzer prompt when temperature be up to 204℃±2℃
 Burning timer  0.1-999.9S/H/M adjustable continually
 Extending-fire timer  0.1-999.9S/H/M adjustable continually, which with a Stop button

Fire Testing Equipment 95% Gas Purity Mining Cable Burning Tester



What is a test fire and why is it important?
What Is Fire Testing? Fire testing intends to understand the influence of a direct flame on a material or product. Companies may analyze the effect on wiring or cable, building materials or furnishings.
