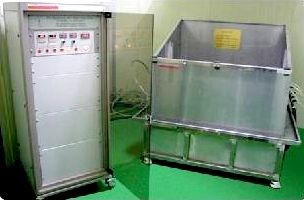

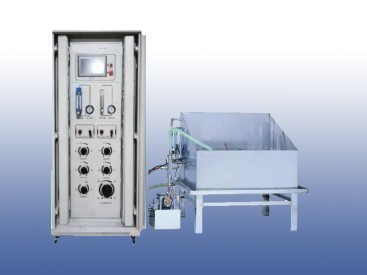

1000V Fire Testing Equipment Wire & Cable Resistance To Fire With Water IEC60331-11

Product Details

Place of Origin: China

Brand Name: SKYLINE

Certification: CE

Model Number: SL-7606S

Payment & Shipping Terms

Minimum Order Quantity: 1 unit

Price: negotiated

Packaging Details: plywood case

Delivery Time: 10 work days

Payment Terms: T/T, L/C, Western Union, MoneyGram

Supply Ability: 1 unit/ month

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                flammability test chamber, flammability testing labs


Standards:	IEC60331-11, IEC60331-21, IEC 60331-1etc.	Testing Power:	AC0-1000V
Testing Temperature:	650±40℃	Specimen Size:	Length About 400mm

Standards:	IEC60331-11, IEC60331-21, IEC 60331-1etc.
Testing Power:	AC0-1000V
Testing Temperature:	650±40℃
Specimen Size:	Length About 400mm

Product Description

1000V Flammability Testing Equipment Wire & Cable Resistance to Fire with Water IEC60331-11

Standards

According to IEC60331-11, IEC60331-21, IEC 60331-1, IEC 60331-2, EN50200, EN50362, BS6387: 1994, BS7846, BS8431-1, BS8434-2, BS8491 etc.

Use

Used for testing wires & cables with the rated voltage through the different refractory level,detect the fire resistance of the insulation, check insulation whether breakdown and circuit’s integrality.

Main parameters

Testing power	AC0-1000V, continuously adjustable, current: AC0.01-0.70A,four circuits independent continuously adjustable
Ribbon burner	nozzle length is 500mm, width is 15mm, contain the venturi mixer
Burning gas	propane or other gas
Testing temperature	650±40℃
Specimen size	length about 400mm
Temperature sensor	ø 2.0 mm Platiniridium temperature sensor, below the specimen
Spraying head pressure	During 250-350Kpa, flowing speed: 0.25-0.3L/S.m2

What is a test fire and why is it important?
What Is Fire Testing? Fire testing intends to understand the influence of a direct flame on a material or product. Companies may analyze the effect on wiring or cable, building materials or furnishings.
