AQ 6103 ,ISO 9150:1988 , CSN EN 348:1992 ,GB 8965.2:2009, GB/T 17599:1998
Motor Speed:
Can Be Adjust
Dimension:
700mm (W) X 850mm (H) X 500mm (D)
Weight:
42kg
Installation Requirements:
Electrical Requirements: 220V, 50HZ, 5A
Gas Requirements:
Oxygen, Acetylene
Highlight:
flammability test apparatus
,
flammability testing labs
Product Description

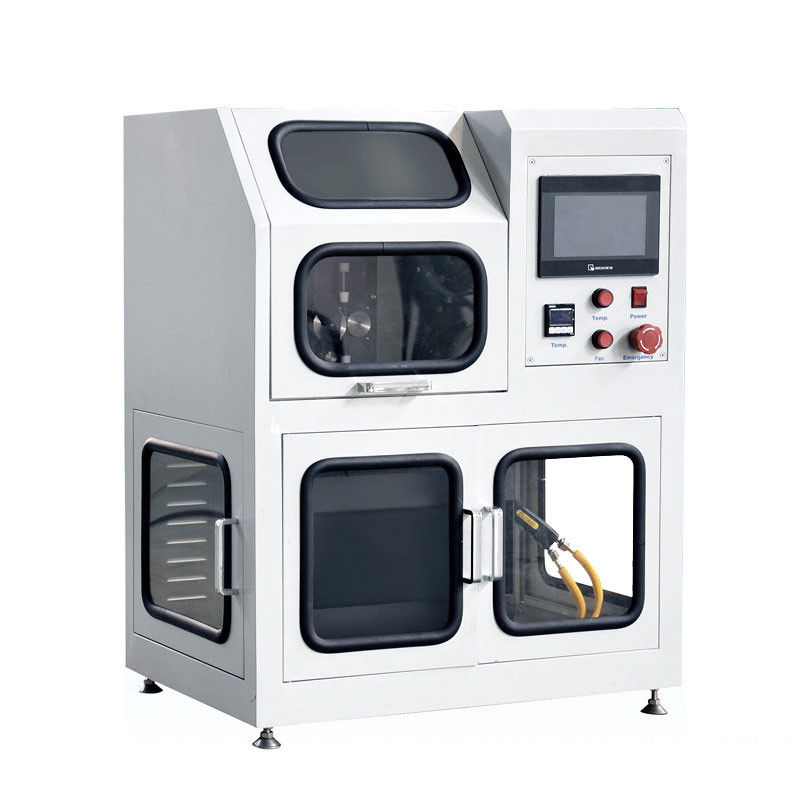

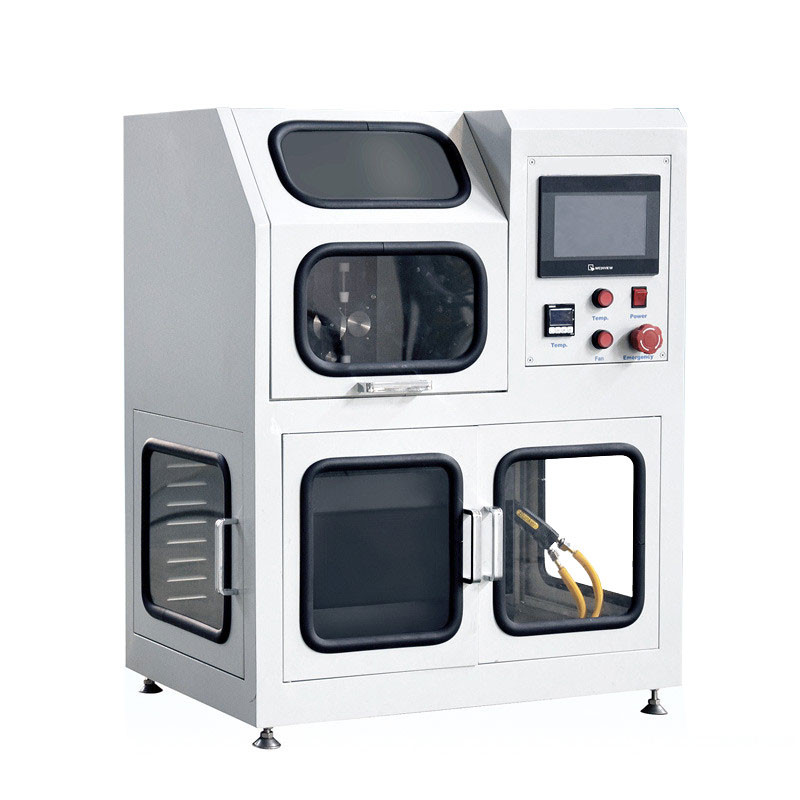

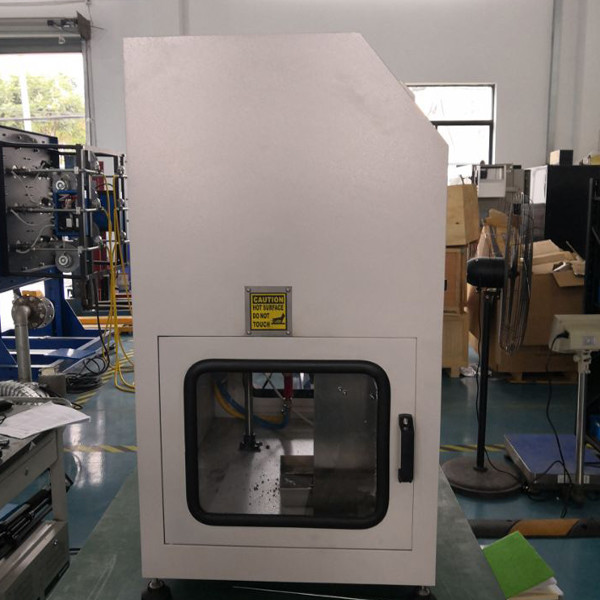

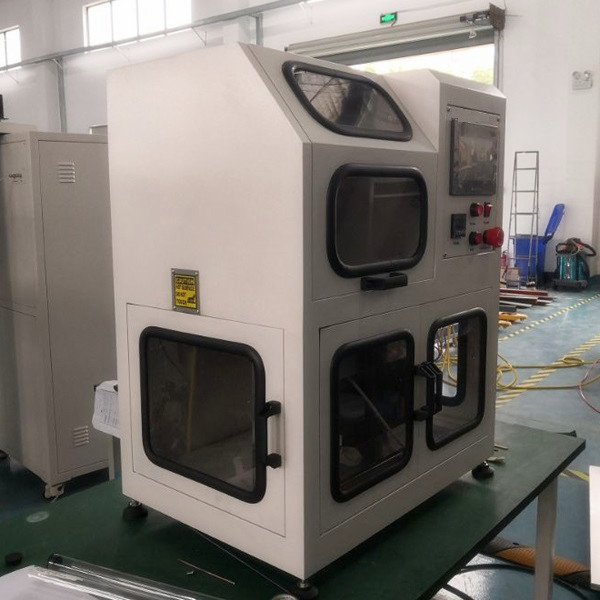

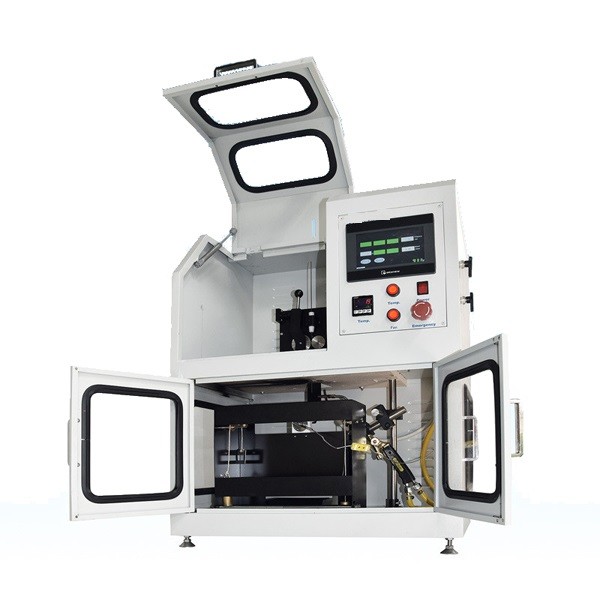

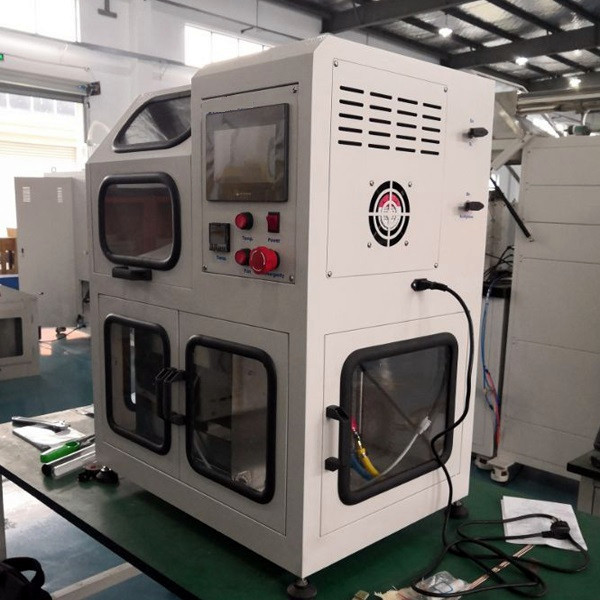

Molten Metal Splashes Impact Test Apparatus
Product Introduction
Projections of molten metal drops at a point on a vertical oriented test specimen and measurement of the number of the drops required to cause a 40 K temperature rise in a sensor behind the specimen.
Features
Drop guide to collect the drops and to guide them towards the vertically oriented test specimen.
Senor for measuring the temperature linked to a recording device.
Holding frame and counterweights for the test specimen.
Motor speed can be adjust so that the steel rod is fed at the rate of (10 f 1) g/mm.
Needle valves adjust the O2 and acetylene flow rate.
LCD Screen display and control the motor speed.
Standard
AQ 6103 ,ISO 9150:1988 , CSN EN 348:1992 ,GB 8965.2:2009, GB/T 17599:1998
Fire testing – such as reaction and resistance to fire testing of materials and structures, and the performance testing of fire suppression components and systems (eg extinguishers and sprinklers), of detection and alarm systems and cables, and of smoke and heat ventilation systems.
