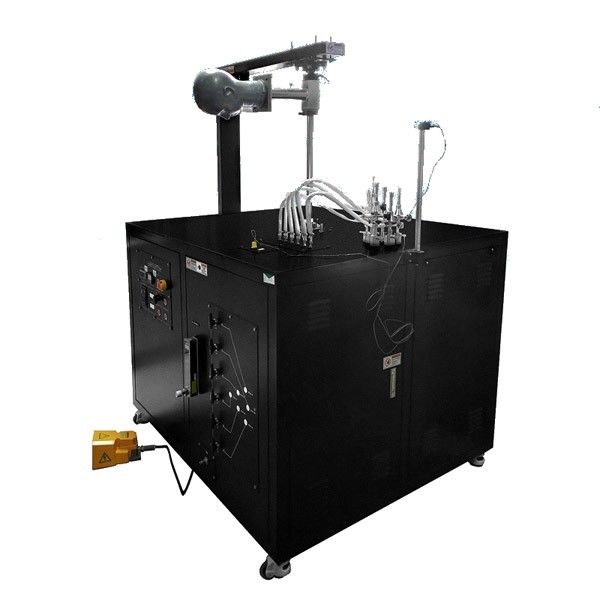

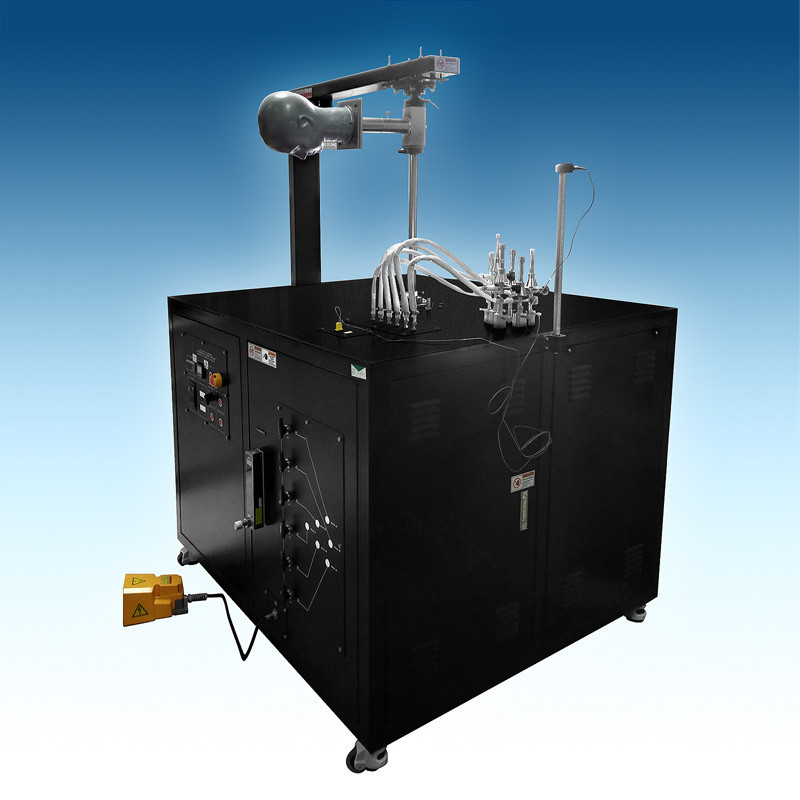

Respiratory Protective Devices Full Facemasks Equipments Tester

Respiratory Protective Devices Full Facemasks Equipments Tester

Application

Full Cover Combustion Resistance Tester is suitable for testing the combustion resistance of self-contained open-circuit compressed air respirator (air respirator) in EN136 standard. The combustion performance of air respirator can be tested by means of 6-point burning or single-point burning flame impact.

Performance Characteristics

1. Equipped with the first metal texture simulation device, it can be used for wearing air respirator device.

2. It is equipped with K-type thermocouple, which is placed at 250mm on the top of the highest burner and can detect the temperature of 950 + 50 degrees.

3. Equipped with 6 TEKLU burners, the height of each burner can be adjusted by itself.

4. The gas flow rate supplied to the burner can be adjusted and controlled by a rotor flowmeter.

5. The pressure regulating device can adjust the pressure supplied to the burner to 10-50KPA.

6. Metal texture simulation head can be rotated, and the rotation speed can be adjusted to meet the standard test requirements.

7. Single-point combustion and six-point combustion can be realized, and can be tested according to different standards.

Application: Safety Protection

Standard CSN EN 136:1998 GB/T 16556:2007

Dimensions 1200mm (W) x 700mm (D) x 1,900mm (H)

Weight 176KG

Installation requirements

Electrical requirements: 220V, 10A

Gas requirements: propane gas
