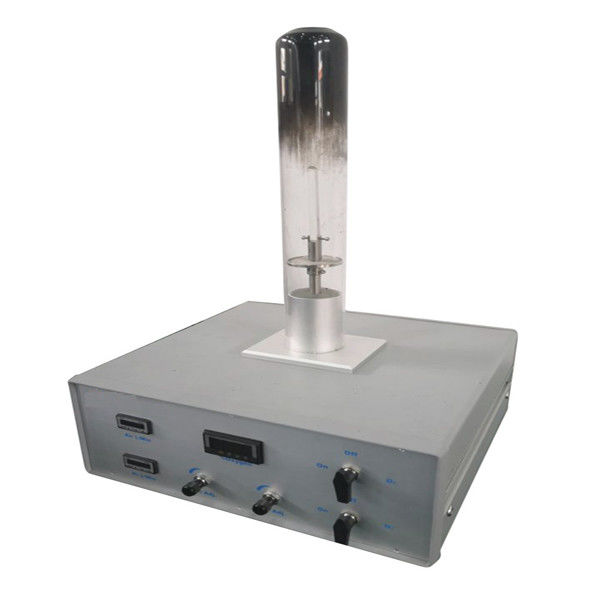

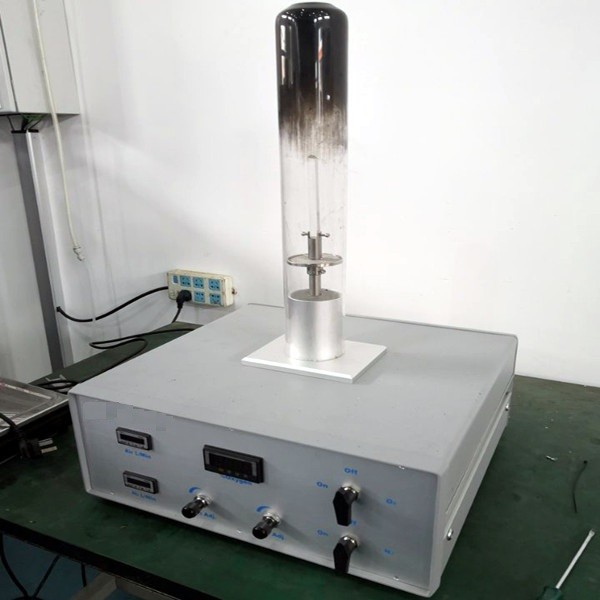

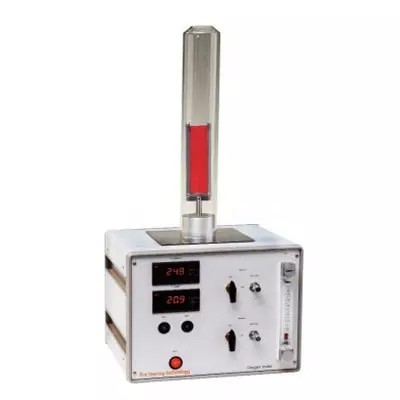

Fire Testing Equipment Oxygen Index Tester Paramagnetic

Product Details

Place of Origin: CHINA

Brand Name: SKYLINE

Certification: CE

Model Number: SL809P

Payment & Shipping Terms

Minimum Order Quantity: 1 unit

Price: negotiated

Packaging Details: plywood case

Delivery Time: 10 working days

Payment Terms: T/T, L/C, Western Union, MoneyGram

Supply Ability: 1 unit/ month

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                flammability test apparatus, flammability testing labs


SKYLINE:	Oxygen Index Tester	Standards:	ASTM D2863，ISO 4589-2，NES 714
Ambient Temperature:	Operating 10°C To 35°C	Dimension:	420 Mm (W) X 350 Mm (D) X 560 Mm (H)
Weight:	9kg	Electrical:	115 Volts AC 60Hz / 230 Volts AC 50Hz

SKYLINE:	Oxygen Index Tester
Standards:	ASTM D2863，ISO 4589-2，NES 714
Ambient Temperature:	Operating 10°C To 35°C
Dimension:	420 Mm (W) X 350 Mm (D) X 560 Mm (H)
Weight:	9kg
Electrical:	115 Volts AC 60Hz / 230 Volts AC 50Hz

Product Description

ASTM, ISO 4589-2 High Reliability Oxygen Index Tester (Paramagnetic)

Product introduction

Oxygen Index Tester measures minimum oxygen concentration as necessary when specimen combustion. This equipments the oxygensensor is adapted Paramagnetic Type which has a precise, long life, less error rate and high reliability. This meets the contents of standards like ASTM, ISO 4589-2, NES and so on.

Technical Parameters

Size	420 mm (W) x 350 mm (D) x 560 mm (H)
Weight	9KG
Electrical	115 Volts AC 60Hz / 230 Volts AC 50Hz.
Ambient Temperature	Operating 10°C to 35°C.
Gas Supplies	Oxygen,Nitrogen and Propane
Standards	ASTM D2863,ISO 4589-2,NES 714
Applications	Buliding Materials,Wire & Cable,Upholstered Furniture,Other

Features

Paramagnetic Oxygen Cell for assessing accurate oxygen (< 0.1%) levels.
Digital display of nitrogen gas flow, total flow ofoxygen and nitrogen.
Digital display of oxygen percentage in atmosphere during test (no calculations needed).
High temperature resistant quartz glass tube, can withstand a higher test temperature.
Gas ignition device, easily adjust the length of the flame.
Sample holders for both rigid and flexible samples supplied.
Shortened gas path for rapid response.
Paramagnetic Oxygen Sensor: Range:0 to 100% Oxygen
Repeatability (typical): ±0.1% Oxygen
Linearity (typical): ±0.1% Oxygen

Oxygen Index Tester.pdf

What is oxygen Index test?

Measuring the Minimum Oxygen Concentration to Support Candle-Like Combustion of Plastics (Oxygen Index) ASTM D2863. Scope: ASTM D2863 is a method to determine the minimum concentration of oxygen in an oxygen/nitrogen mixture that will support a flaming burn in a plastic specimen.
