Professional Toys Testing Equipment ISO 8124-1 Aluminum Alloy Rattle Test Fixture

Product Details

Place of Origin: CHINA

Brand Name: SKYLINE

Certification: Calibration Certificate

Model Number: SL-S09

Payment & Shipping Terms

Minimum Order Quantity: 1 unit

Price: negoitable

Packaging Details: Carton box

Delivery Time: 3 working days

Payment Terms: T/T, Western Union, MoneyGram

Supply Ability: 1 unit

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                                                                                stability test chamber, swings testing equipment


SKYLINE:	Rattle Test Fixture	Standards:	ASTM F 963 4.22 ~ 4.24, EN-71-1 8.16, ISO 8124-1 5.3
Material:	Alu.alloy	Weight:	0.7kg
Dimension:	100 X 90 X 25 Mm(LxWxH)	Warranty:	18 Months
Packing Dimension:	200 X 140 X 40 Mm(LxWxH)	Gross Weight:	1kg

SKYLINE:	Rattle Test Fixture
Standards:	ASTM F 963 4.22 ~ 4.24, EN-71-1 8.16, ISO 8124-1 5.3
Material:	Alu.alloy
Weight:	0.7kg
Dimension:	100 X 90 X 25 Mm(LxWxH)
Warranty:	18 Months
Packing Dimension:	200 X 140 X 40 Mm(LxWxH)
Gross Weight:	1kg

Product Description

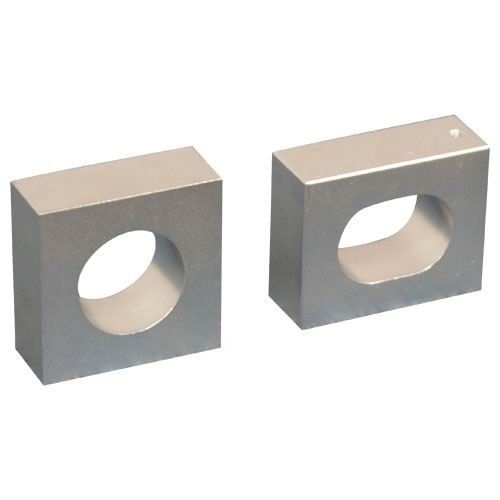

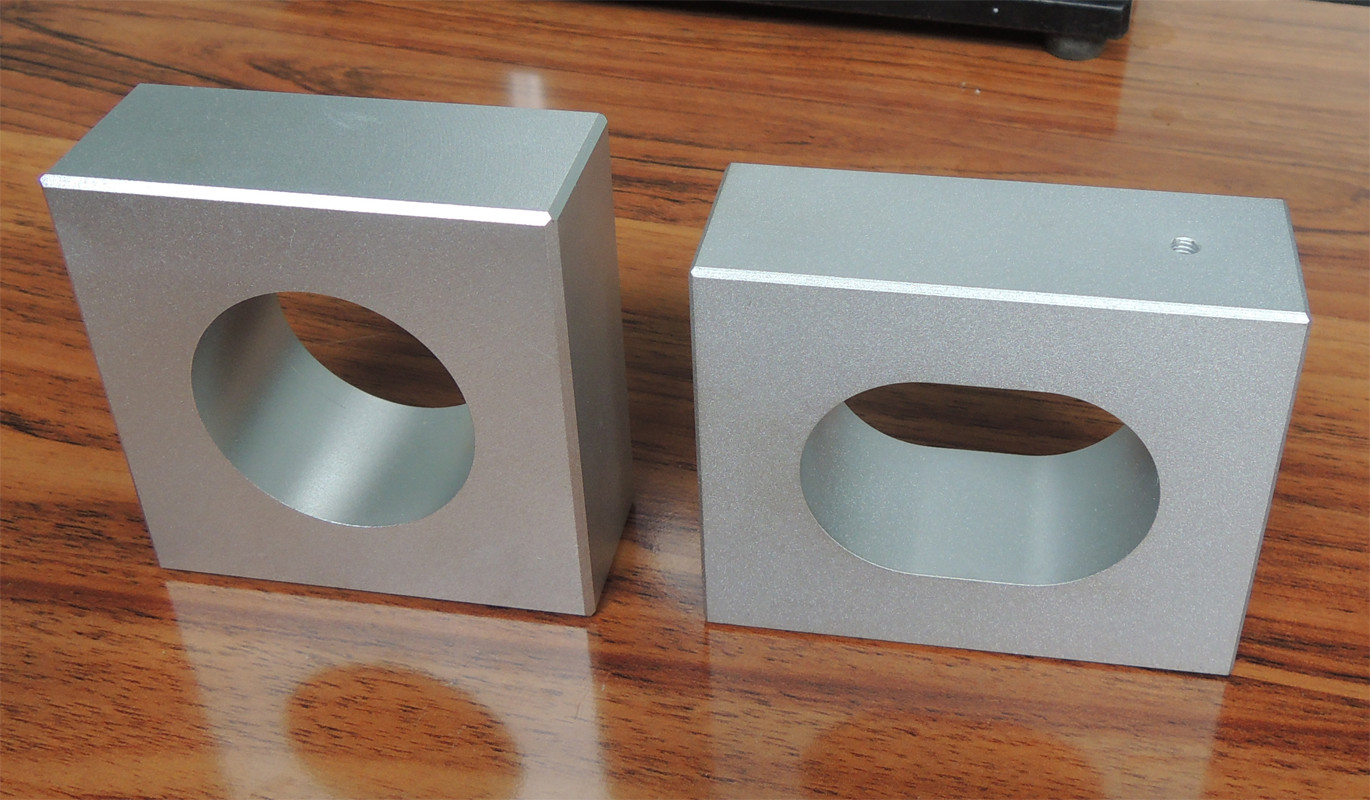

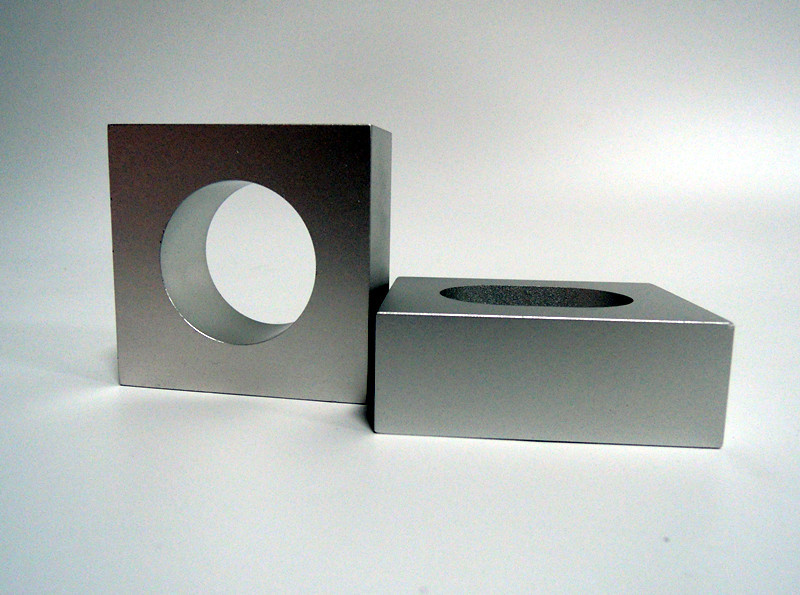

ISO8124-1 Toys Testing Equipment Alu.Alloy Supplemental Test Fixture

Product Information
To determine whether rattles for infants of up to 18 months old present choking or suffocating hazards. The rattle is placed in the opening of test fixture. If any part of the rattle can pass through the opening without being pushed or pulled, the rattle has failed. For other rattles incorporating nearly spherical, hemispherical or circular flared ends, a Supplemental Rattle Test Fixture is available.

Orientate the toy in a position which would most likely permit the entry of the toy through the slot in template A. Place the toy in the slot so that the force on the toy is only the force due to its mass.

Determine whether the toy passes through the slot or whether any part of the toy protrudes past the base of template A.

Repeat the procedure for toys with nearly spherical, hemispherical or circular flared ends using template B

Testing Standards

16 CFR 1510

ASTM F 963 4.21

EN71-1988 8.17

ISO17025
