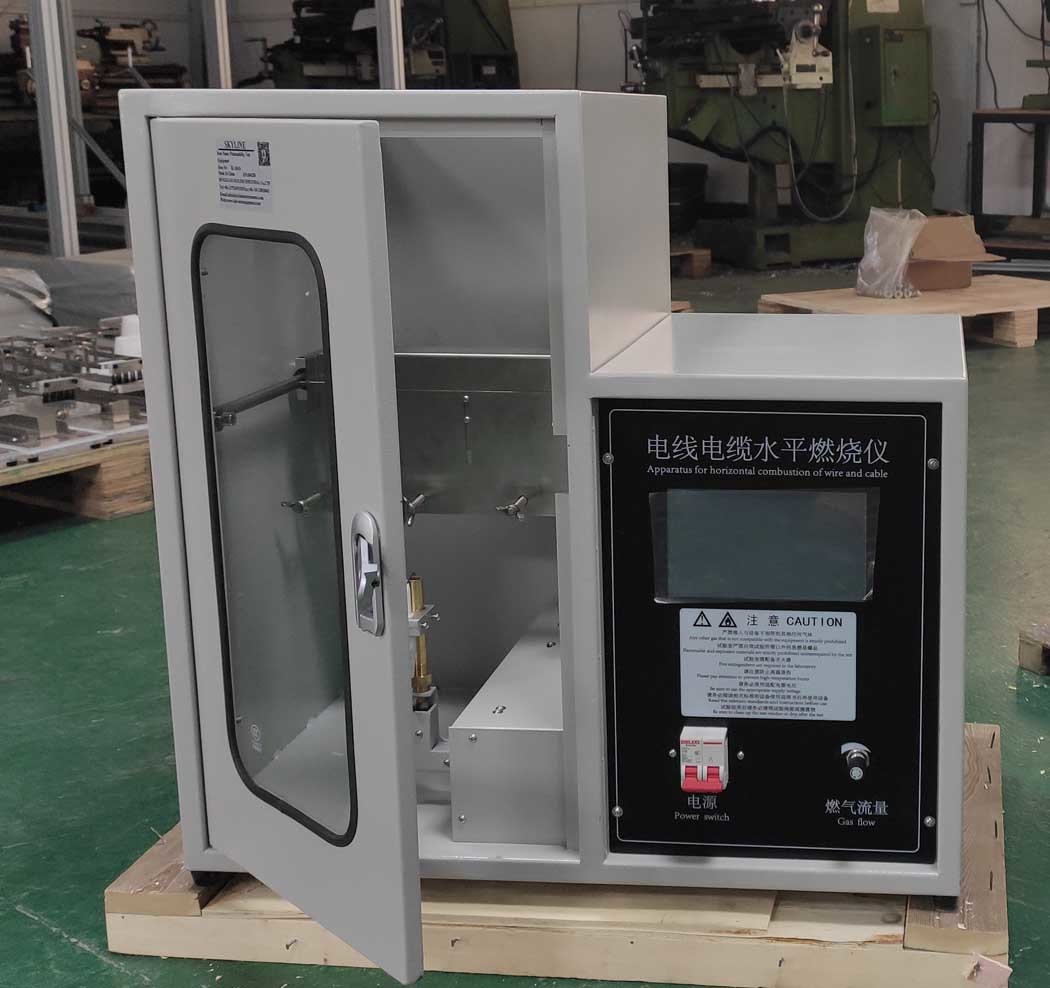

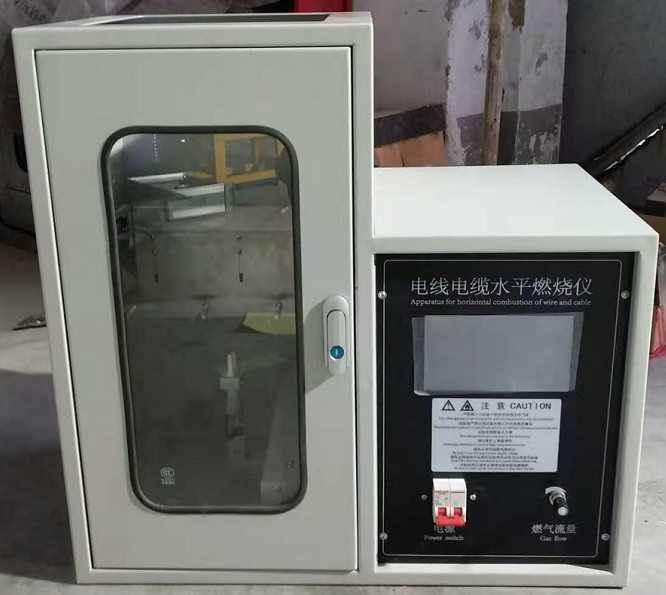

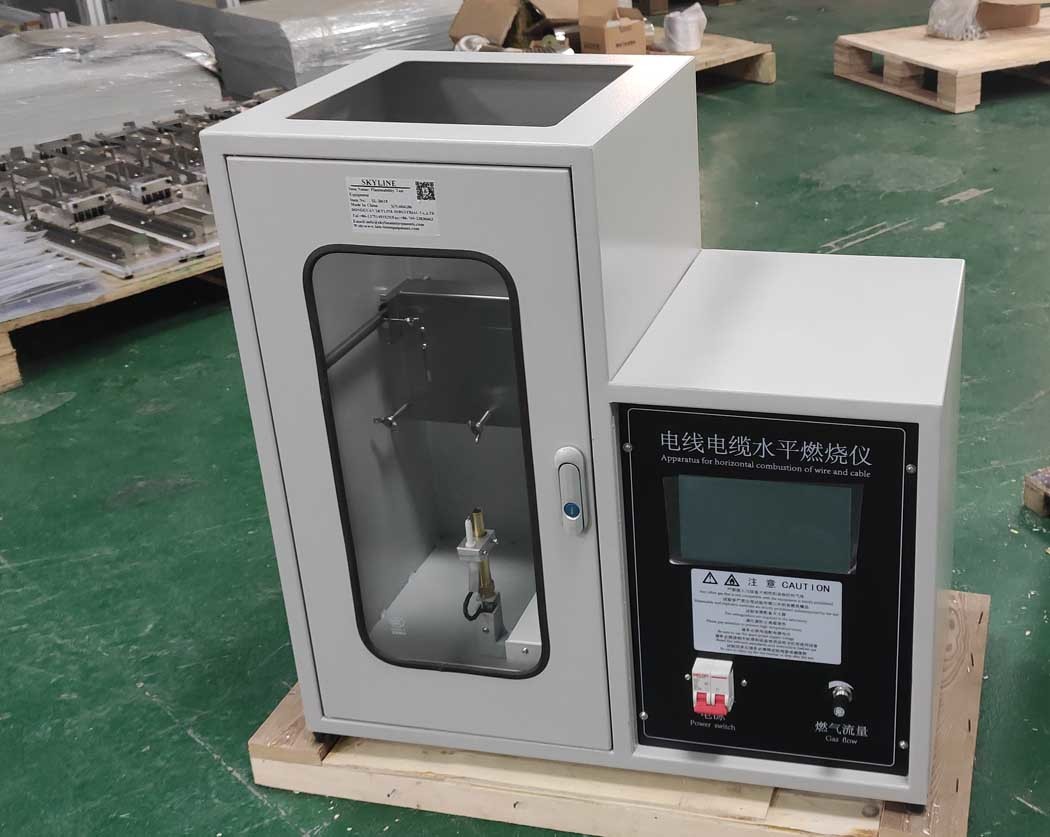

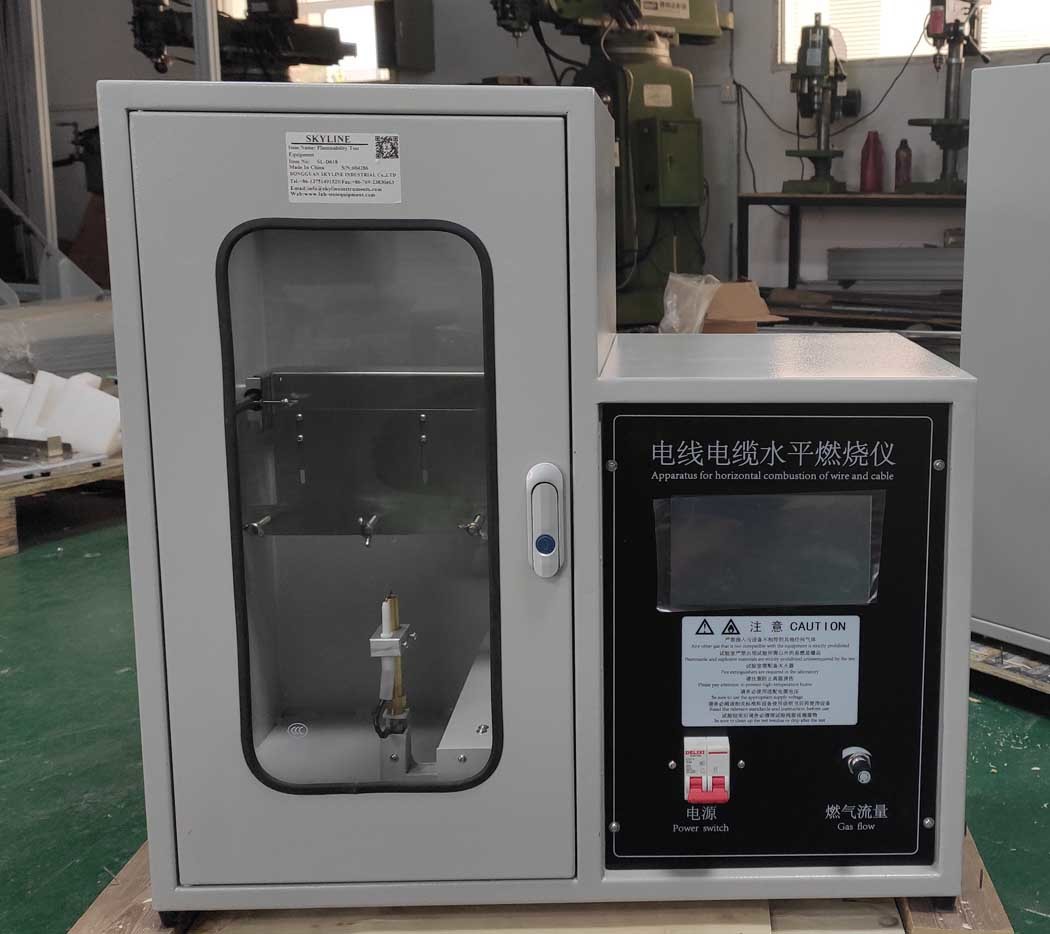

JASO-D 618 95% Propane Gas Wire Cable Fire Testing Equipment

Product Details

Place of Origin: China

Brand Name: SKYLINE

Certification: CE

Model Number: SL-D618

Payment & Shipping Terms

Minimum Order Quantity: 1 unit

Price: negotiated

Packaging Details: Plywood case

Delivery Time: 15 working days

Payment Terms: T/T, L/C, Western Union, MoneyGram

Supply Ability: 1 unit/ month

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                95% Propane Gas Fire Testing Equipment, Fire Testing Equipment JASO-D 618, Wire Cable Tester JASO-D 618


SKYLINE:	Wire And Cable Burning Test	Standard:	JASO-D 618
Fuel Gas:	95% Propane Gas	Power Supply:	220V/50Hz

SKYLINE:	Wire And Cable Burning Test
Standard:	JASO-D 618
Fuel Gas:	95% Propane Gas
Power Supply:	220V/50Hz

Product Description

Wire and Cable Burning Test

Product introduction

Wire and cable burning level tester is suitable for measuring the flame-retardant properties of single plastic wire, control, cross-linking, elevator, marine, mining cable, etc., conforming to the standard JASO-D 618

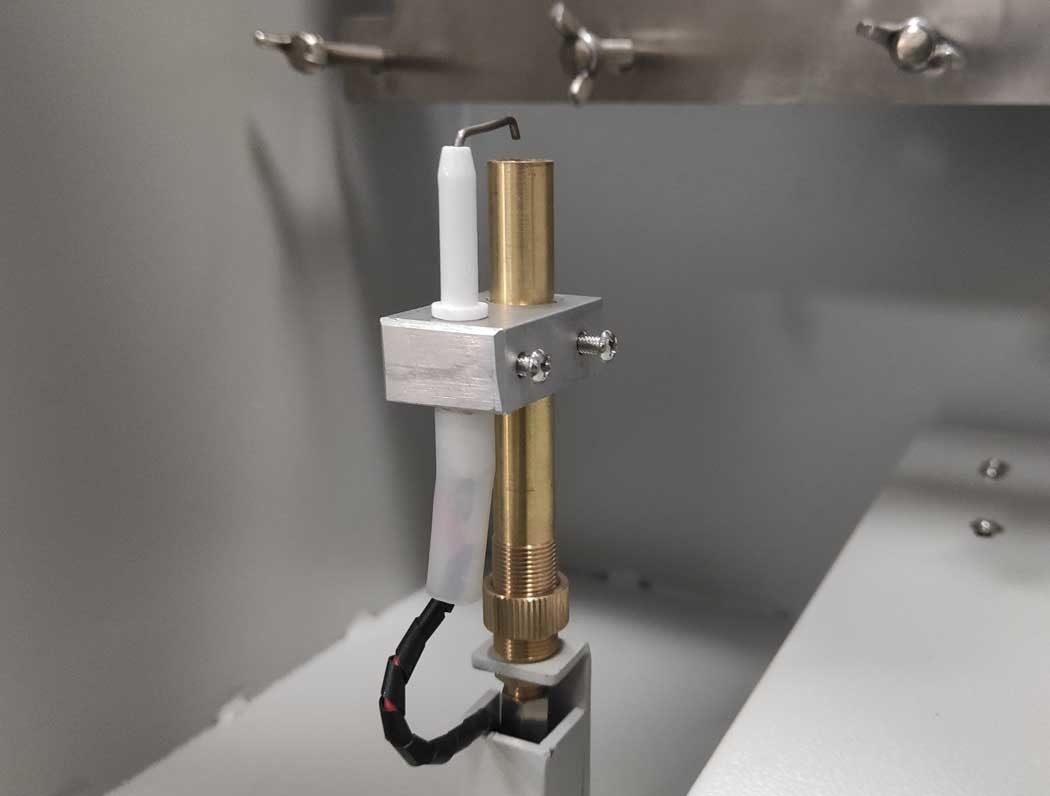

This test equipment uses a high-pressure igniter to automatically ignite, which is exquisite in shape and resistant to smoke corrosion. Digital display time, automatic control of test program, easy to use, stable and reliable.

Standards

JASO-D 618

Principle

This equipment provides a flame combustion source, and the flame application and time and operating procedures are controlled by the control circuit.

Technical parameters

1. Studio size: W310xH610xD360mm, the outer box size is W638xH670xD365mm;

2. Fuel gas: 95% propane gas (liquefied petroleum gas can be used instead) (user-provided);

3. Flame burning time and flame extinguishing time 0-999.9s±0.1s, can be set continuously, automatically record, manual pause

4. Power supply voltage: 220V/50Hz;

What is flammability test for cables?

The acidity of the fire gases from burning cables can be measured by using a special test standard for cables called EN 50267–2–3. This test measures the conductivity of a fluid through which the fire gases are made to pass.

Why choose the FPA for fire testing?

The Fire Protection Association (FPA) provides one of the most versatile and comprehensive fire testing and research facilities in the UK at our Gloucestershire based laboratory. As our aim is to help move fire safety standards forward, we offer bespoke and standards testing.
