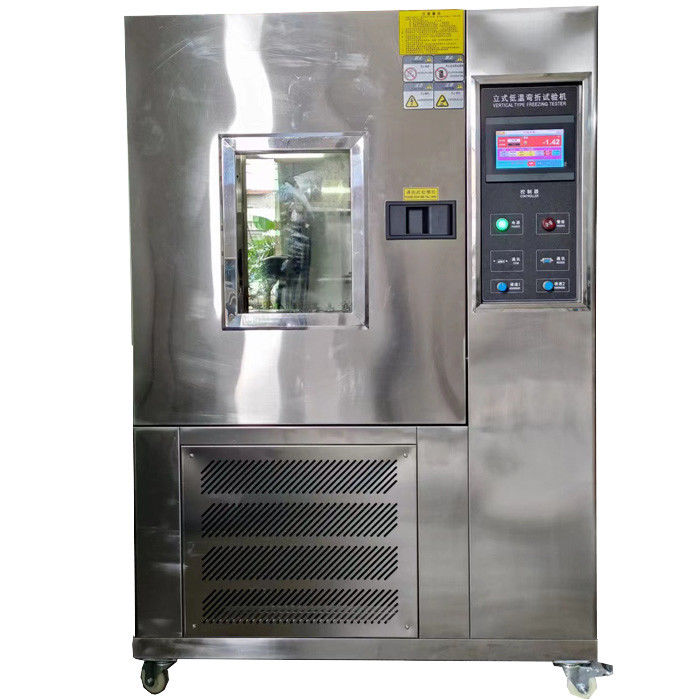

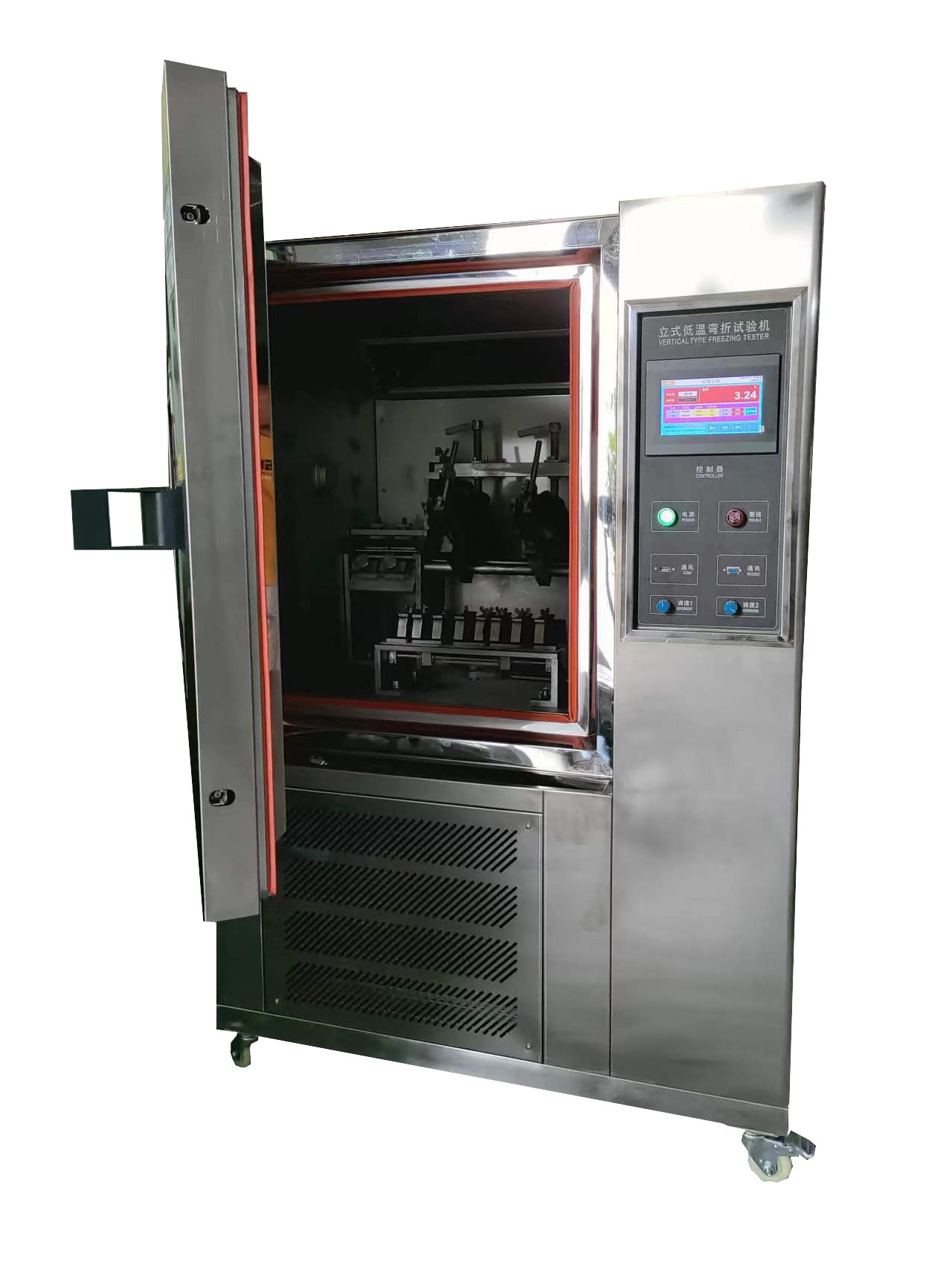

Vertical type low temperature flexing tester is used to test if the materials such as leather, textile, rubber, shoes can endure the flexing at low temperature. Different fixtures can be installed in the inner box, and all the equipments are made of stainless steel..
Test Standards
ASTM D 1790, D 1593, 1052, JIS K6545, EN ISO20344, HG/T24I I, HG/T287I, GB/T2099I, CNS 7705, QB/T2224, QB/T 1471, DIN 53351, SATRA TM92, SATRA TM 161
Parameters
| Inside and outside tank materia |
stainless steel SUS304# |
| Controller |
Japanese Omron PID control |
| Temperature range |
(I) Normal temperature ~ -50ºC (optional) |
| Optional inner box action |

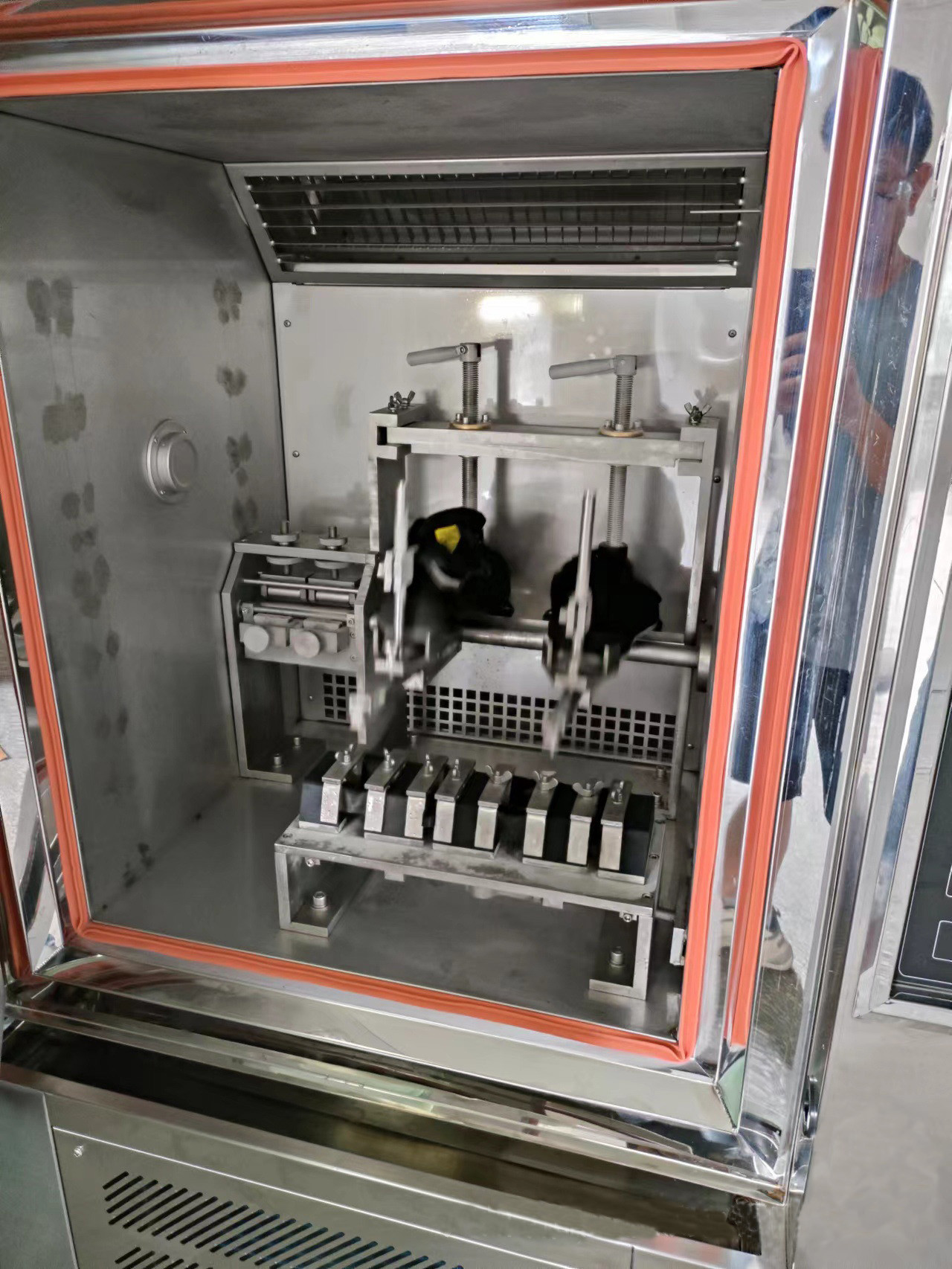

add finished shoes with resistance to bending (heel up, heel up, ROSS twists), outsole resistance to twists and turns, leather flexure-resistant clamps, (or customized according to requirements) |
| Protection device |
thermal protection shutdown, leakage shutdown, over-temperature protection, overload protection and other functions |
| Temperature control accuracy |
±0.3ºC |
| Distribution uniformity |
±1ºC |
| Cooling speed |
about 60min from normal temperature to -30ºC |
| Refrigerant |
R404 environmentally friendly refrigerant |
| Compressor |
French Taikang |
| Compressor start delay |
5min |
| Power consumption |
4-6KW |
| Insulation material |
rigid foam and glass wool |
| Counter |
LCD, 0~9999, 9999 eight digits |
| Window |
210×35×270mm, two vacuum layers |
| Window light |
P1 light, 5w |
| Power supply |
AC~220V 50Hz |
| Motor |
gear reduction motor |
| Inner box size |
600×600×550mm (inner box size is determined according to the type of fixture installed) |
| Size (W*D*H |
110×105×160cm |
| Weight |
about 420kg |
Test Principle
A. The sole strip test specimen is installed on the Low temperature ROSS flexing tester, so that the cutout falls directly above the center of the rotating shaft of the Low temperature ROSS flexing tester, through the Low temperature ROSS flexing tester drive the test specimen on the shaft for free 90 degree zigzag, after a certain number of tests, the length of the test specimen cutout is measured, and the size of the cutout growth rate is used to evaluate the test sole resistance to zigzag performance.
B. Install the finished shoe on the finished shoe flex resistance tester, and drive the flex part of the finished shoe through the finished shoe flex resistance tester to repeatedly flex at a flex angle matching the shoe type and the fixed rate of the flex machine, and observe the damage of the flex part of the finished shoe after reaching the pre-set time or after completing the specified number of flexes, to complete the number of flexes without damage or to complete the specified number of flexes. The severity of the damage to the bending part of the finished shoe after completing the number of bends is used to assess the bending resistance of the finished shoe.
C. The test specimen is mounted on the VAMP flex test machine, and the flex test is carried out at a certain frequency by the VAMP flex test machine, and the changes on the surface of the test specimen are observed to evaluate the flex resistance of the test material by whether the surface is wrinkled and broken and its severity.
A. Technical parameters:
1. Conform to the standards: GB/T20991-2007 , ASTM D1052, ISO 5423, SATRA TM60, etc.
2. Bending angle: (90±2)º.
3. Bending speed: (0 to 150) r/min adjustable, display speed.
4. 2 specimens can be tested at the same time.
5. Bending axis diameter: 10mm.
B. Technical parameters:
1. Standard: SATRA-TM92 and other standards. 2.
2. bending angle: (0 to 90)º adjustable, marked angle: 30 °, 45 °, 60 °. 3.
3. bending speed: (0 to 150) r / min adjustable, display speed. 4.
4. Allowable specimen length: 150 to 400mm. 5.
5. 2 whole shoes can be tested at the same time.
C. Technical parameters:
1. Comply with the standards: GB/T20991, EN ISO20344, SATRA TM25, ISO-4643, etc.
2. Stretching stroke: (19±1.5) mm.
3. Bending speed: (0 to 300) r/min adjustable, display speed.
4. Specimen size: (64±1)x(64±1)mm.
5. Number of test pieces: 8 specimens are tested at the same time.
