Home > products > Leather Testing Equipment > lab Water Vapor Permeability Tester SATRA TM172 EN ISO20344 BS3144

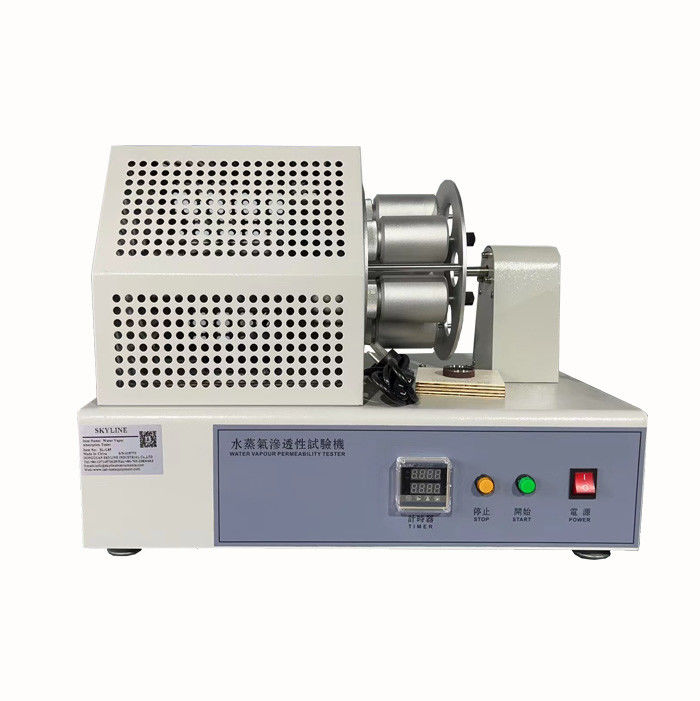

lab Water Vapor Permeability Tester SATRA TM172 EN ISO20344 BS3144
lab Water Vapor Permeability Tester SATRA TM172 EN ISO20344 BS3144
lab Water Vapor Permeability Tester SATRA TM172 EN ISO20344 BS3144
lab Water Vapor Permeability Tester SATRA TM172 EN ISO20344 BS3144

lab Water Vapor Permeability Tester SATRA TM172 EN ISO20344 BS3144

Product Details

Place of Origin: CN

Brand Name: SKYLINE

Certification: SATRA TM 25, ISO 4643, ISO 2023, WTM 25; EN ISO 7854:1997; ISO 22288

Model Number: SL-L17

Payment & Shipping Terms

Minimum Order Quantity: 1 unit

Price: negoitable

Packaging Details: plywood case

Delivery Time: 15 work days

Payment Terms: Western Union, MoneyGram, T/T

Get Best Price

Product Details

Product Description
Product Details
Highlight:

lab water vapor permeability tester

,

SATRA TM172 water vapor permeability tester

SKYLINE:
Water Vapour Permibiality And Absorbancy Tester
Standards:
IUP 7; EN 13515; BS EN ISO 14268; IUP 15; EN 420, EN 20344, Satra TM 178, STM 9; STM 47; EN 13518; EN 12746
Roller Diameter:
Roller Diameter (120 ± 1) Mm; Width (50 ± 1) Mm
Roller Width:
Width (50 ± 1) Mm
Sample Size:
(110 ± 1) Mm × (40 ± 1) Mm
Speed:
20±1 Times/min
SKYLINE:
Water Vapour Permibiality And Absorbancy Tester
Standards:
IUP 7; EN 13515; BS EN ISO 14268; IUP 15; EN 420, EN 20344, Satra TM 178, STM 9; STM 47; EN 13518; EN 12746
Roller Diameter:
Roller Diameter (120 ± 1) Mm; Width (50 ± 1) Mm
Roller Width:
Width (50 ± 1) Mm
Sample Size:
(110 ± 1) Mm × (40 ± 1) Mm
Speed:
20±1 Times/min
Product Description

Satra TM 172 Water Vapor Permeability Testing Machine/Equipment Water Vapor Permeability Tester





Introduction

Leather Air Permeability Tester fix the circular test piece on the opening of a test bottle containing a certain amount of solid desiccant of the water vapor penetration testing machine, so as to use the test piece to separate the desiccant in the bottle from the air outside the bottle, and then turn on the water The vapor penetration tester rotates the test bottle and the fan that makes the air turbulence rotate. The continuously moving desiccant continuously absorbs the water vapor passing through the test piece. Within a certain period of time, the mass of the water vapor absorbed by the test bottle desiccant is weighed. To evaluate the water vapor permeability of the test material.

Standards

SATRA TM172,GB/T2099-2007 ,EN ISO 20344-2011,EN ISO17707,ENISO-20344,DIN53543

lab Water Vapor Permeability Tester SATRA TM172 EN ISO20344 BS3144 0

Application

1.Body surface treatment: the use of U.S. DuPont powder, electrostatic spray paint process, high temperature 200 ℃ curing to ensure that the color does not fade.

2.Metal LED keys, waterproof, safe and durable, soft sight;

3.Mechanical parts are made of non-corrosive structural aluminum and stainless steel materials;

4.Precision drive motor, smooth running, low noise;

5.With counting and timing self-stop function, set the test value can automatically stop the test;

6.High precision bearings, flat and stable rotation, long service life;

7.One-button full-automatic test, simple and convenient operation;

lab Water Vapor Permeability Tester SATRA TM172 EN ISO20344 BS3144 1

Parameters

Fan Speed (1400±100)r/min
Bottle Diameter (30±1)mm
Bottle speed (75±5)r/min
Specimen can be tested at the distance from the mouth to the fan (10±5)mm
Test sample 6pcs
Voltage AC220V±10% , 50Hz 10W
Size 400×560×430mm
Weight 23kg

lab Water Vapor Permeability Tester SATRA TM172 EN ISO20344 BS3144 2lab Water Vapor Permeability Tester SATRA TM172 EN ISO20344 BS3144 3
