Leather Testing Equipment SATRA TM31 Martindale Abrasion Tester For Testing Leather

Place of Origin China
Brand Name SKYLINE
Certification Calibration certificate
Model Number SL-F04
Minimum Order Quantity 1 unit
Price negoitable
Packaging Details Plywood case
Delivery Time 7 working days
Payment Terms Western Union, , T/T
Supply Ability 10 unit / month
Product Details
SKYLINE: Martindale Abrasion And Pilling Tester Test Station: 4 Stations
Wear Resistance Stroke: 60±1mm Friction Head Diameter: 44±1mm
Friction Table Top Surface Diameter: 130mm Controller: PLC Touch Screen Control
Highlight:

SATRA TM31 Martindale Abrasion Tester

,

Leather Testing Equipment SATRA TM31
Product Description

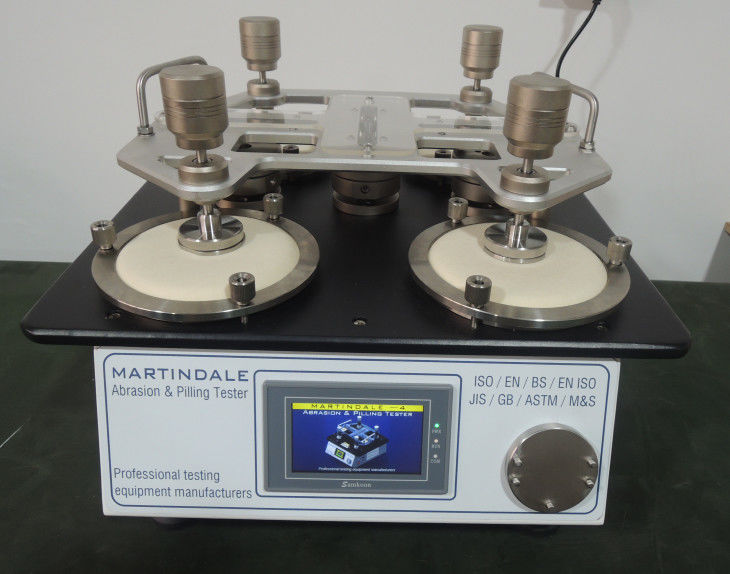

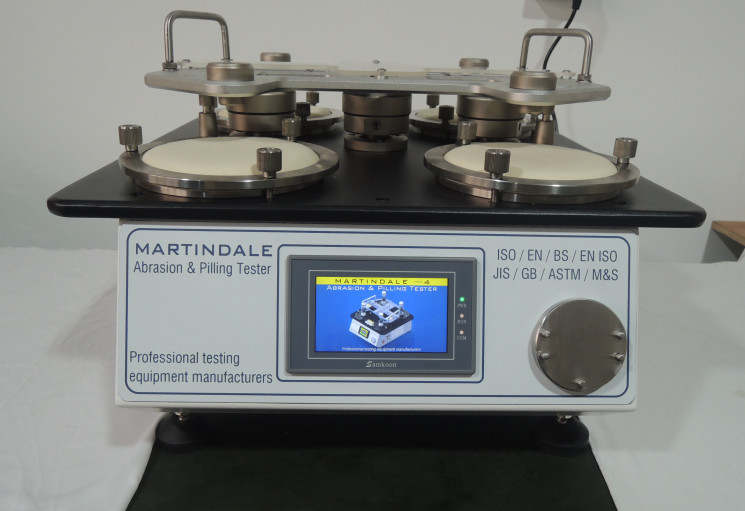

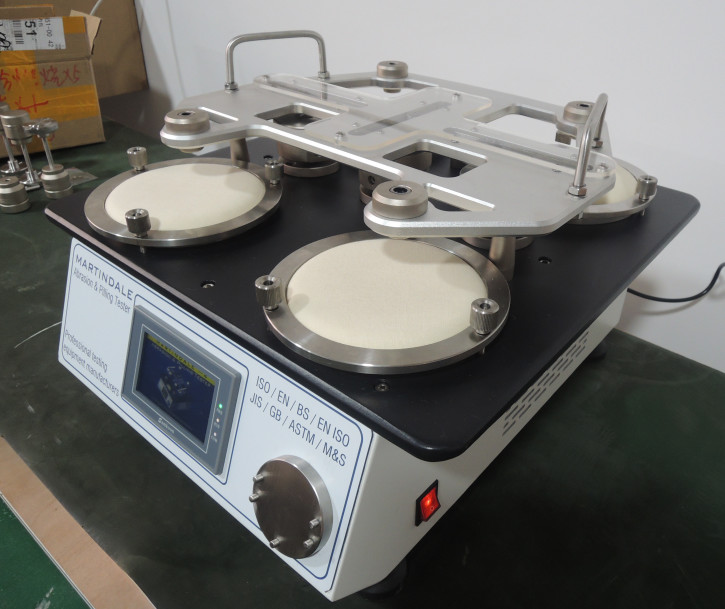

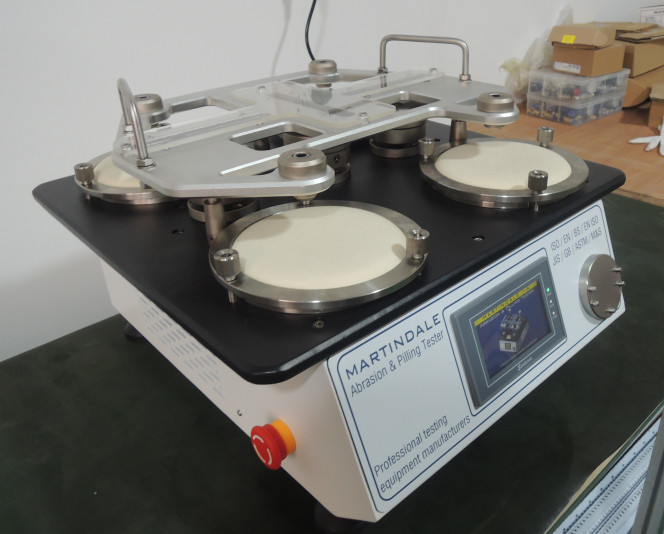

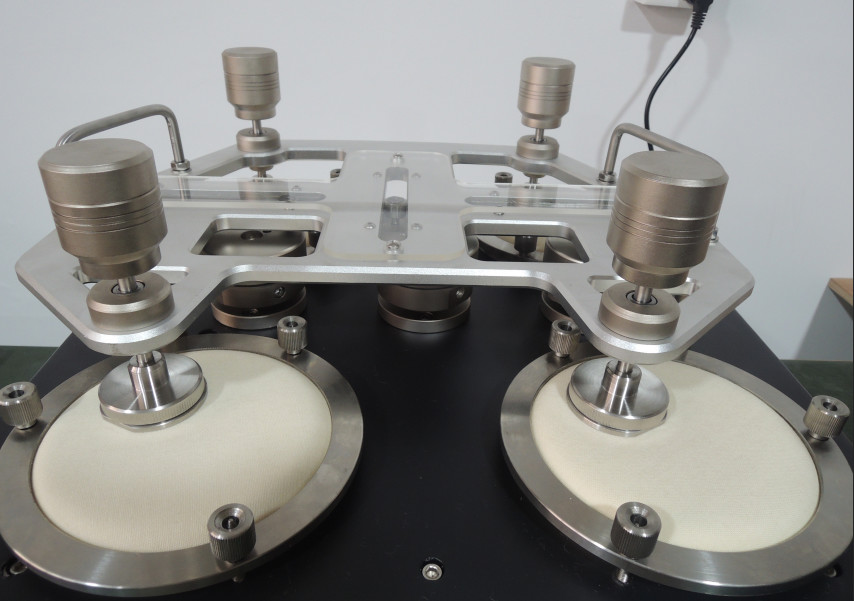

SATRA TM31 Martindale Abrasion Tester for Testing Leather



I.Introduction

1. Use:

  • This machine is suitable for testing woven fabrics, knitted fabrics, pile fabrics with a height of 2mm or less, non-woven fabrics, coated fabrics (ie, woven fabrics and knitted fabrics, and the coated parts are formed on the fabric surface). The abrasion resistance of the continuous film (sample damage, mass loss, appearance change), pilling performance.

2. Principle:

  • Under the specified pressure, the circular specimen is rubbed with the same fabric or wool fabric abrasive fabric for a certain number of times with the Lissajous pattern trajectory, and the wear resistance and the pilling performance of the specimen are examined.

3.According to the standard:

  • This tester is manufactured according to SATRA TM31 standards.



2.Instrument specifications:

 Project  Specification
 Test station  4 stations
 Wear resistance stroke  60±1mm
 Friction head diameter  44±1mm
 Friction table top surface Diameter  130mm
 Test speed  External wheel: 47.5±2.5r/min, inner wheel: 44.5±2.4r/min
 Test pressure Wear resistance  Wear resistance: 595±10g/795±10g
 Controller  PLC touch screen control
 Volume(WxDxH)  48x50x36cm
 Weight(approximately)  ≈50Kg
 Power  1∮ AC 220V 3A



What is Martindale abrasion and pilling tester?

Martindale Abrasion & Pilling Tester determines the abrasion and pilling resistance of all kinds of textile structures. Samples are rubbed against known abrasives at low pressures and in continuously changing directions. The amount of abrasion or pilling is compared against standard parameters.
