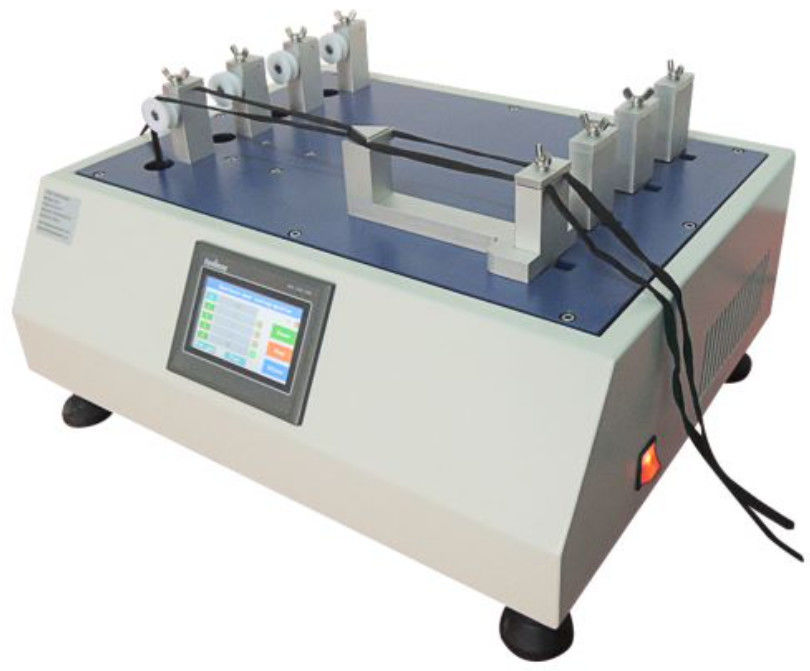

Shoe Lace To Eyelet Abrasion Test Machine With Touch Screen

Product Details

Place of Origin: China

Brand Name: Skyline

Certification: CE, Rosh, Calibration

Model Number: SL-TL18

Payment & Shipping Terms

Minimum Order Quantity: 1

Packaging Details: plywood case

Delivery Time: 15 working days

Payment Terms: L/C, T/T

Supply Ability: 20 sets per month

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                footwear abrasion test machine, touch screen abrasion test machine, shoe lace to eyelet abrasion tester


Product Description

Usage

Shoelace Rubbing Resistant Tester is suitable for all shoelaces wear resistance tests. Through the reciprocating motion of the movable gripper, the two shoelaces that cross each other horizontally are rubbed against each other to check the wear resistance. Four groups of samples can be tested at the same time without interfering with each other.

Standard

GB3903.36, ISO 22774:2004

method 1: lace to lace abrasion;

method 2: lace to standard eyelet abrasion;

method 3: lace to eyelet (from footwear) abrasion.

Test Method: SATRA TM154

Shoe lace to shoe lace and shoe lace to lace carrier abrasion

Technical parameters

Item	Specification
Activity gripper and fixed gripper’s mini space	280 ±50 mm
Reciprocating stroke of activity gripper	35 ± 5 mm
Test Speed	60 ± 6 cycles/min
Gripper	4 Sets
Template	Angle 52.5°, Length 190 mm

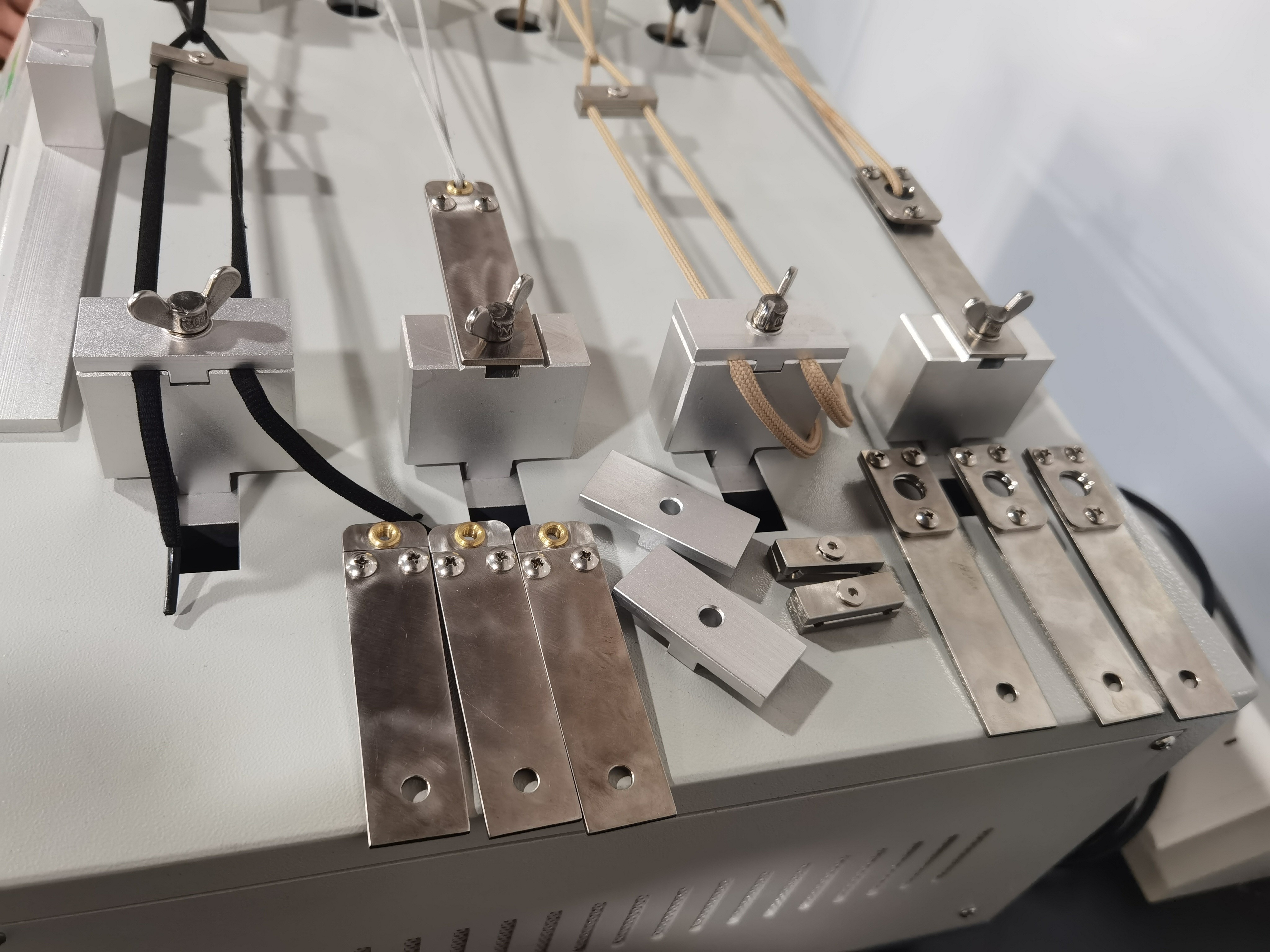

Metal strip	W 25mm, L 60mm stainless steel
Weight	250 ± 3g, 4 pics
Counter	Touch screen 0~999,999
Dimension	55 cm × 47 cm × 34 cm
Weight	43 kg
Power	1Phase 220V50HZ

Application

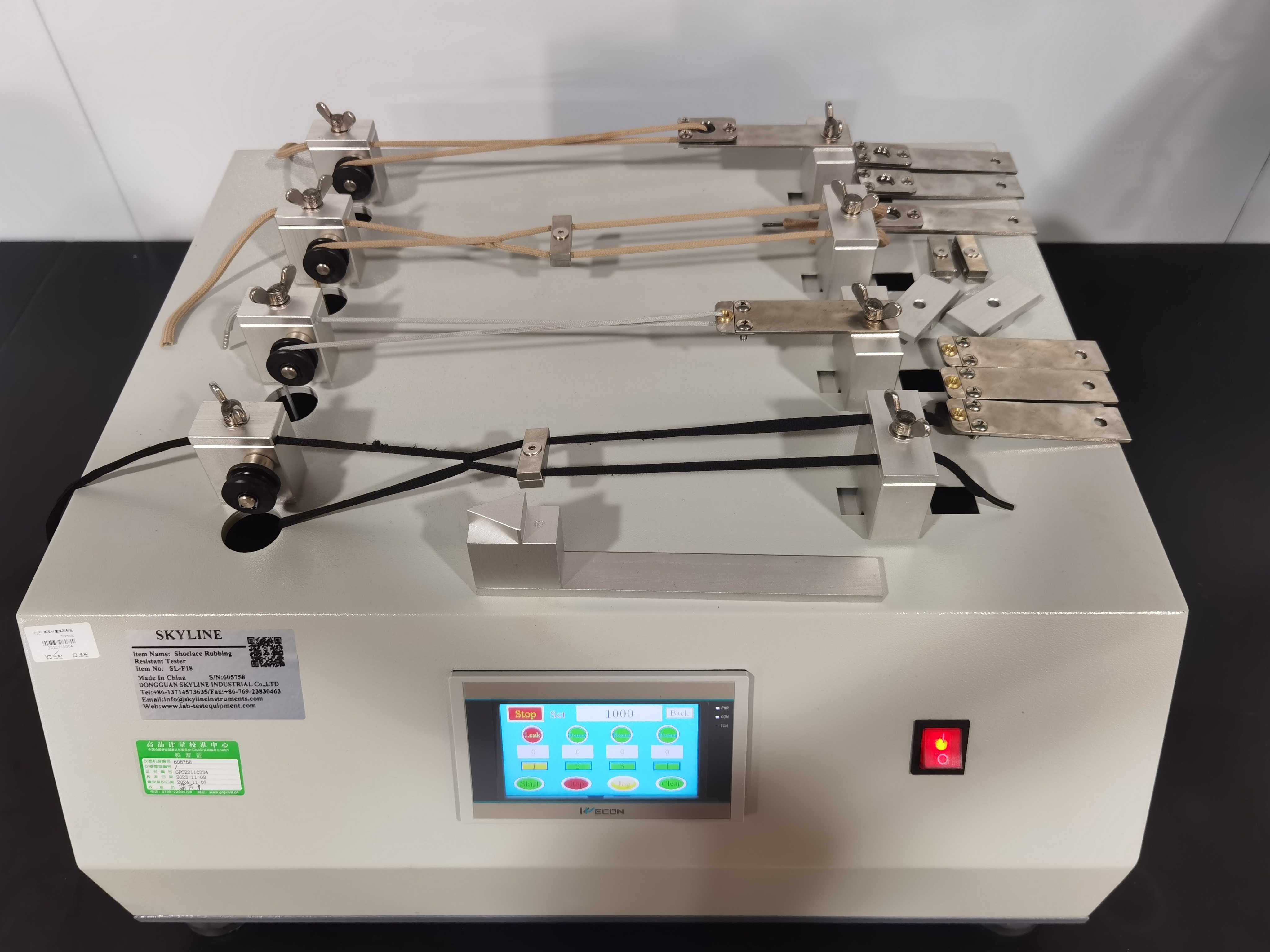

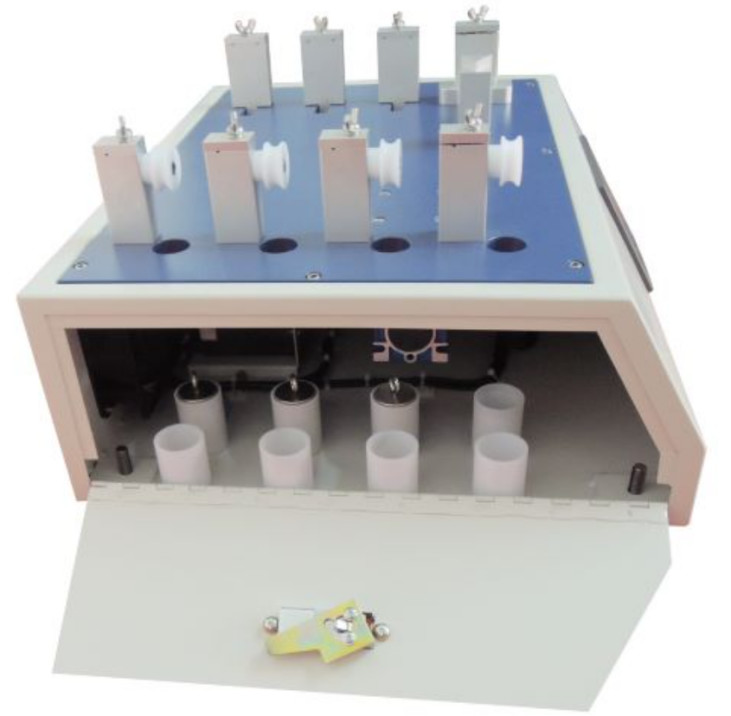

The shoelace installation method is as follows: take two shoelaces, hook the middle section to form the right one and the left one, and use the machine's right clamp (moving clamp) to clamp the two ends of the right belt naturally. The distance is 25MM, with the help of the sample gauge, make the right belt hook the left belt at 52.2°, the hook point is 120MM away from the coming point, and then clamp one end of the left belt with the left clamp (fixed clamp), and put the other end in the groove of the pulley , and suspend the weight below, the natural distance between the pinch point and the wheel groove is 35±5MM. During the test, the movable clamp reciprocates in a straight line from left to right at a constant speed, so that the middle sections of the two shoelaces rub against each other.

Shoe Lace To Eyelet Abrasion Test Machine With Touch Screen 0
