SKYLINE:	Mattress Testing Machine	Controller:	PLC + Touch Screen
Motor:	Sevro Actuator	Standard:	ASTM F1566, EN1957

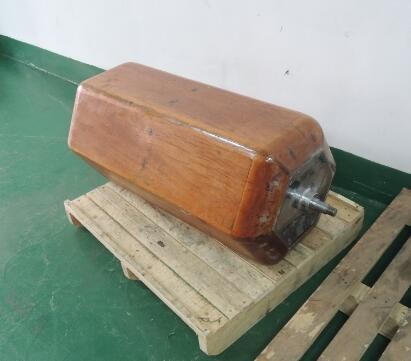

Wooden Hex Barrel Weight:	109KG	Cylinder Weight:	140KG

Imposed the pressure on mattress by a transducer, pressure range to 300KG
Adjust the pushrod stroke on mattress , maximum force = 1025N minimum force = 22N
Pusher travel speed adjustable, about 160 weeks times per minute
Suitable maximum specimen	2.2M ×2.2M
Display Accuracy	0.001kgf
Deformation precision	0.001mm
Impact height	0-300mm adjustable
Counter range	0-99999 times
Machine size	( L×W×H) about 3000×2800×2500mm
Weight	about 650Kg

Lab Testing Equipment

Flammability Testing Equipment

Fire Testing Equipment

Test Equipment

Mattress Testing Machine

Environmental Test Chamber

Toys Testing Equipment

Oil Analysis Testing Equipment

Footwear Testing Equipment

Furniture Testing Equipment

Tensile Strength Testing Machine

Textile Testing Equipment

Leather Testing Equipment

Temperature And Humidity Test Chamber

Electronic Testing Equipment

Building Materials Flammability Tester

Cosmetics Testing Equipment

Lab Testing Equipment

Flammability Testing Equipment

Fire Testing Equipment

Test Equipment

Mattress Testing Machine

Environmental Test Chamber

Toys Testing Equipment

Oil Analysis Testing Equipment

Footwear Testing Equipment

Furniture Testing Equipment

Tensile Strength Testing Machine

Textile Testing Equipment

Leather Testing Equipment

Temperature And Humidity Test Chamber

Electronic Testing Equipment

Building Materials Flammability Tester

Cosmetics Testing Equipment

Mattress Rollator Durability Testing Machine , PLC Control Lab Testing Equipment

mattress testing equipment

durability testing machine

Furniture Test Machine | ASTM F1566, EN1957 Mattress Rollator Testing Machine | SKYLINE

Product Information of Mattress Testing Machine

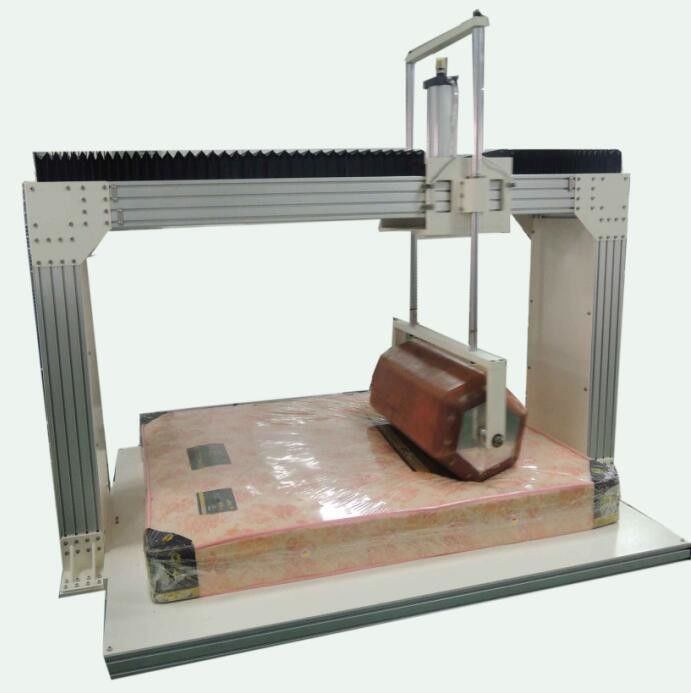

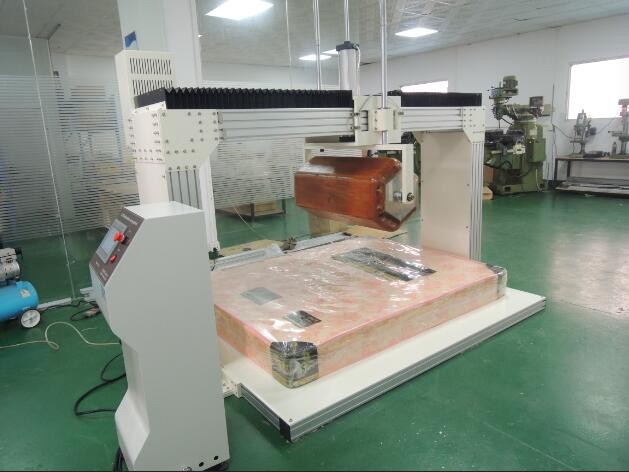

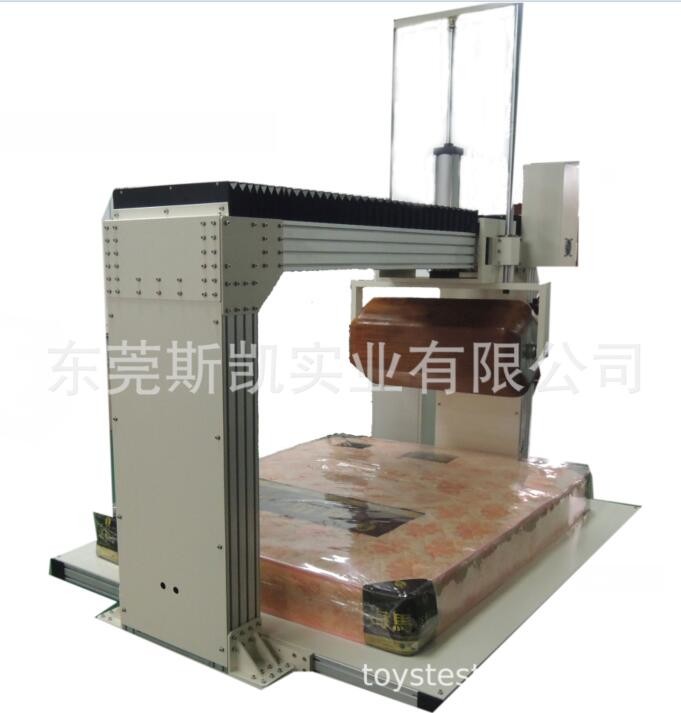

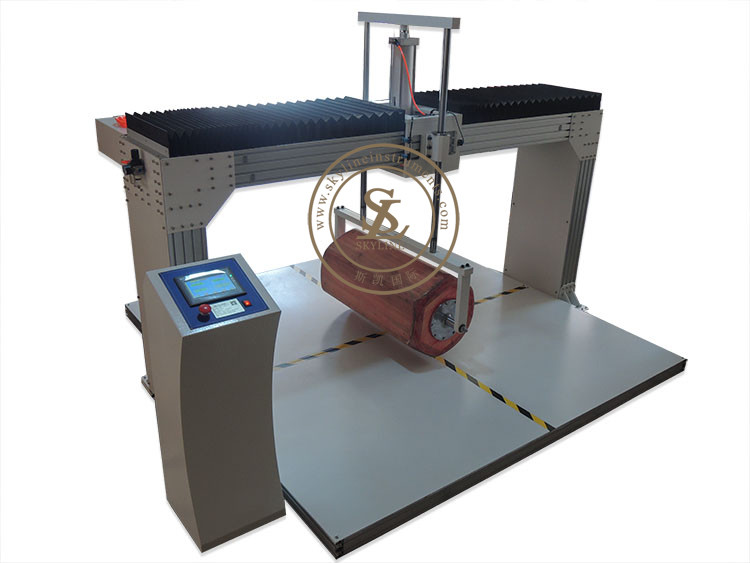

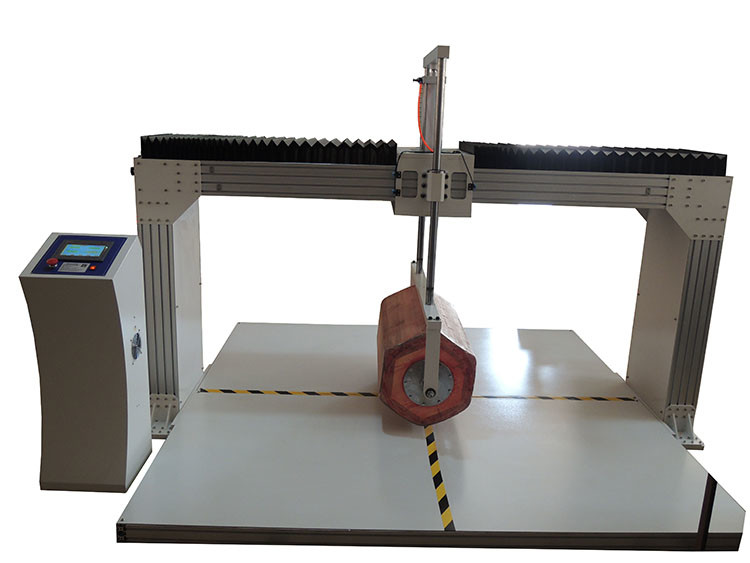

Detailed parameter of Mattress Testing Machine Use a horizontal scroll in wooden barrels or hex (at both ends of the cylinder diameter 250 mm, 300 mm, the middle part of the test on the mattress, scroll back to assess human action mattress durability.
