Innerspring Box Spring Mattress Testing Machine ASTM F1566 With Servo Actuator

Product Details

Place of Origin: China

Brand Name: SKYLINE

Certification: CE

Model Number: SL-T07

Payment & Shipping Terms

Minimum Order Quantity: 1 unit

Packaging Details: Plywood case

Delivery Time: 30 working days

Payment Terms: Western Union, T/T, MoneyGram

Supply Ability: 1 pcs/ month

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                durability testing machine, spring testing equipment, Innerspring Box Spring Mattress Testing Machine


Name:	Mattress Rollator Testing Machine	Controller:	PLC+ Touch Screen
Motor:	Sevro Actuator	Standard:	ASTM F1566, EN1957
Wooden Hex Barrel Weight:	109KG	Cylinder Weight:	140 KG.

Name:	Mattress Rollator Testing Machine
Controller:	PLC+ Touch Screen
Motor:	Sevro Actuator
Standard:	ASTM F1566, EN1957
Wooden Hex Barrel Weight:	109KG
Cylinder Weight:	140 KG.

Product Description

ASTM F1566 Innerspring Box spring Mattress Rollator Testing Machine with Servo Actuator

Product Information

It apply to Innerspring ,Box spring mattresses and Foam mattress. The Cornell Type Tester is used to test the long term capacity of bedding to resist cyclic loading. The machine consists of a double hemispherical ram head on a manually adjustable shaft. A load cell is located on the ram head to measure the force being applied to the mattress. The shaft is connected to an adjustable eccentric which is rotated by an electric motor at up to 100 cycles per minute variable.

Technical parameters

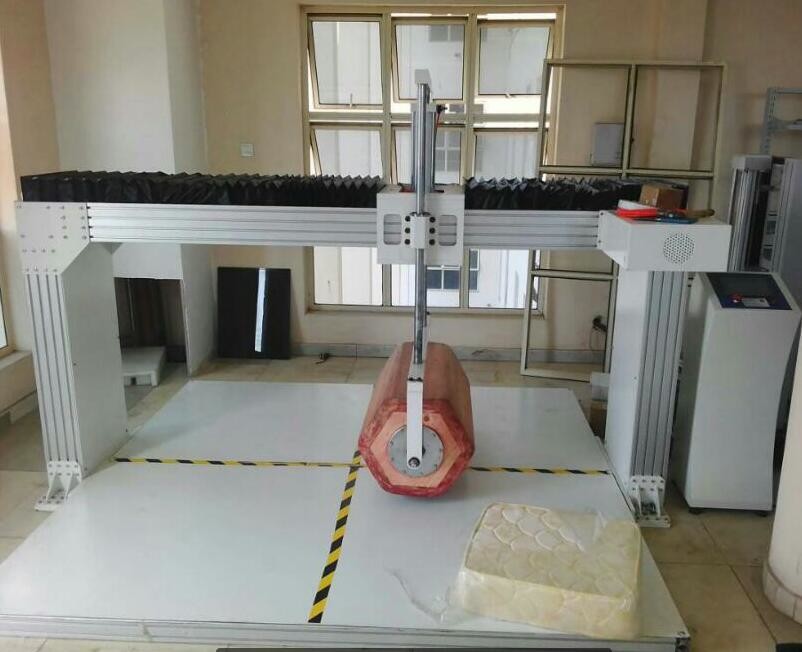

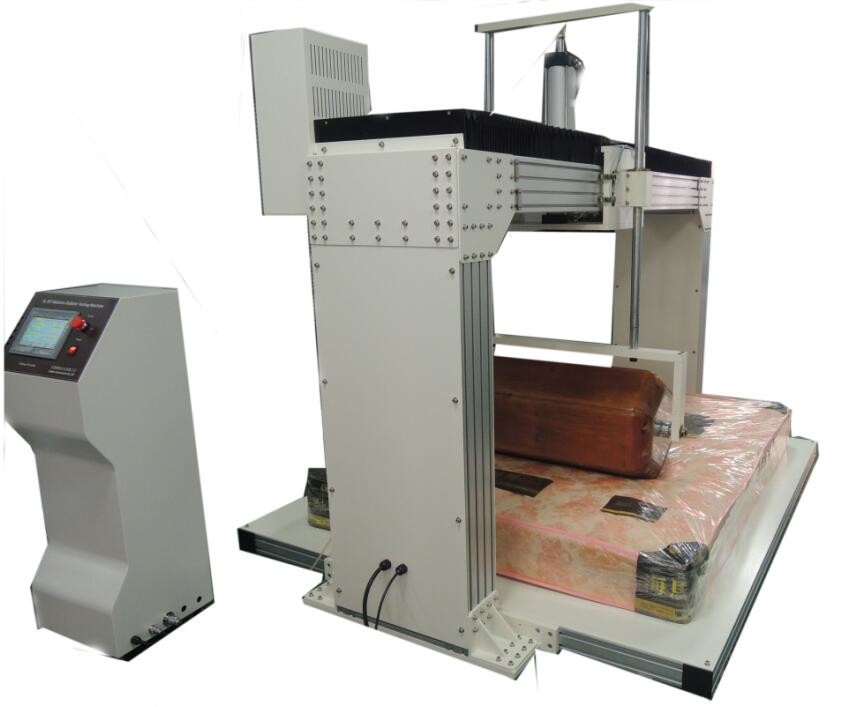

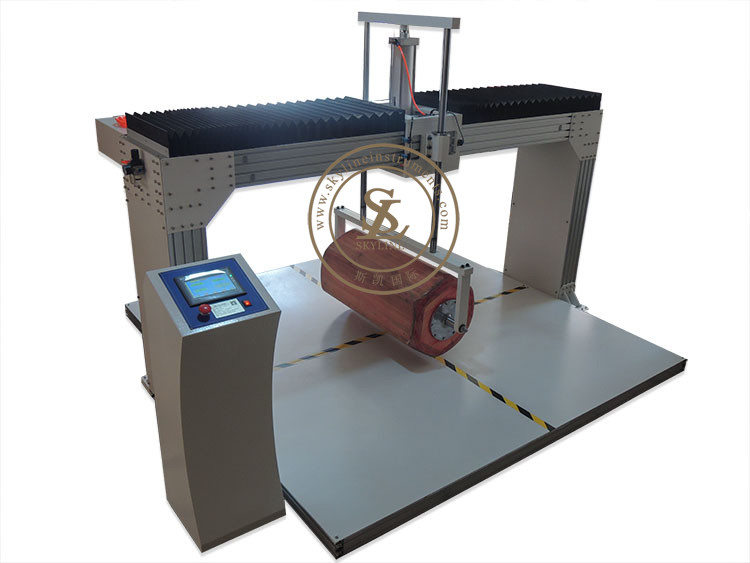

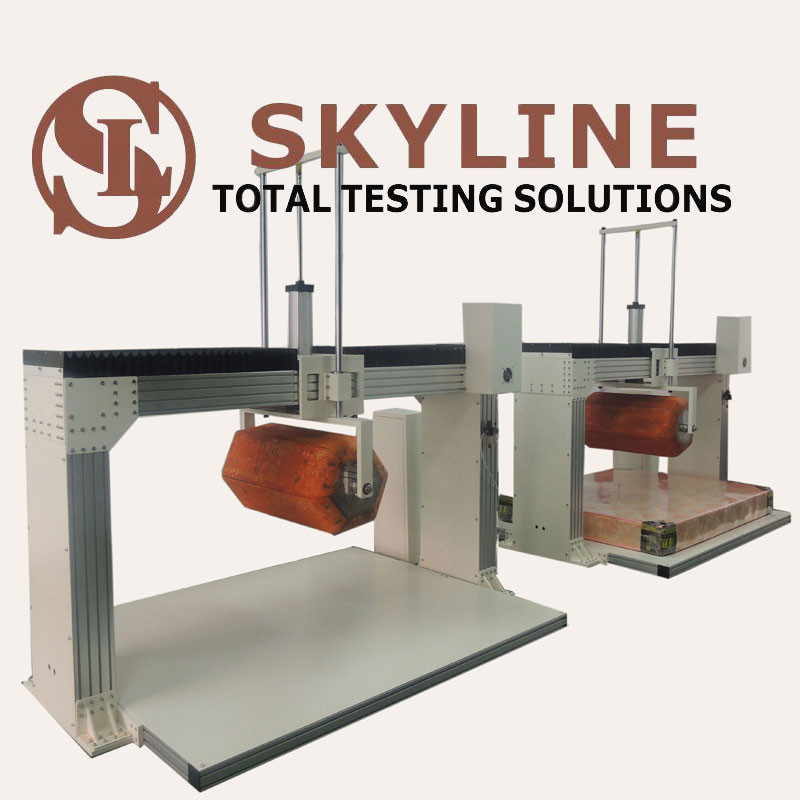

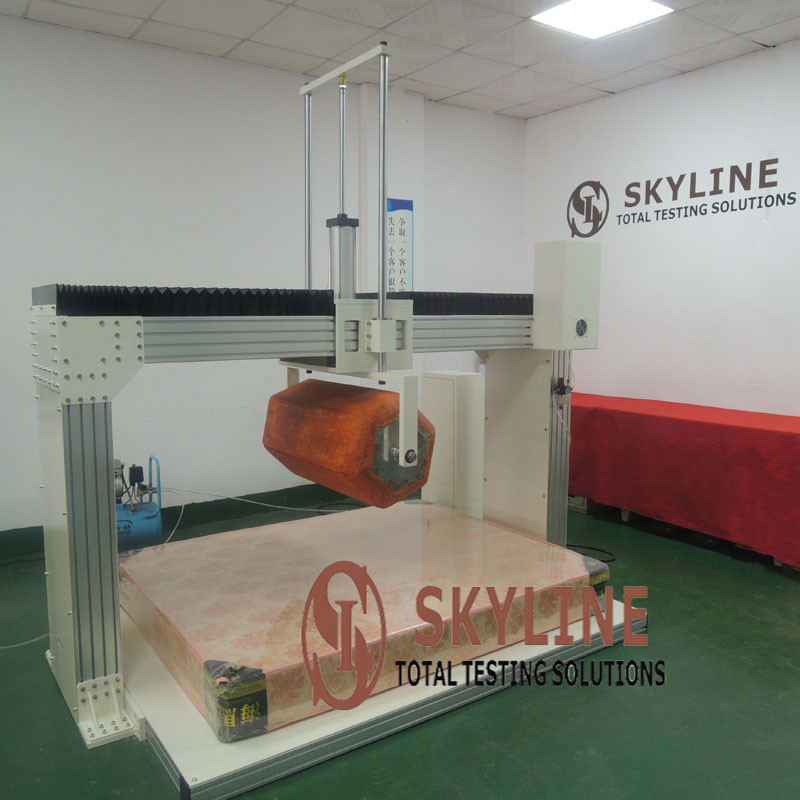

Use a horizontal scroll in wooden barrels or hex (at both ends of the cylinder diameter 250 mm, 300 mm, the middle part of the test on the mattress, scroll back to assess human action mattress durability.
Technical
Wooden hex barrel weight = 109KG, cylinder weight = 140 KG.
According to different mattress size, scroll, adjustable (adjustment of the limit switch)
Low friction coefficient guides to ensure that the barrel weight fully to the mattress.
Suitable mattress greatest dimension 2.3 X 2.5M.
Text display provides a simple manipulation and creation.

Testing Standards
ASTM F1566, EN1957

Technical parameters

Imposed the pressure on mattress by a transducer, pressure range to 300KG
Adjust the pushrod stroke on mattress , maximum force = 1025N minimum force = 22N
Pusher travel speed adjustable, about 160 weeks times per minute
Suitable maximum specimen	2.2M ×2.2M
Display Accuracy	0.001kgf
Deformation precision	0.001mm
Impact height	0-300mm adjustable
Counter range	0-99999 times
Machine size	(L×W×H) about 3000×2800×2500mm
Weight	about 650Kg

Mattress Rollator Testing Machine.pdf

Innerspring Box Spring Mattress Testing Machine ASTM F1566 With Servo Actuator 0
