Innerspring Box Spring Testing Equipment Mattress Rollator Testing Machine ASTM F1566

Product Details

Place of Origin: China

Brand Name: SKYLINE

Certification: Calibration Certificate

Model Number: SL-T07

Payment & Shipping Terms

Minimum Order Quantity: 1 unit

Packaging Details: Plywood case

Delivery Time: 30 working days

Payment Terms: Western Union, T/T, MoneyGram

Supply Ability: 1 pcs/ month

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                mattress testing equipment, durability testing machine, Innerspring Box Spring Testing Equipment


Aluminum:	High Quality Industrial Aluminum Production Frame	Controller:	PLC+ Touch Screen
Motor:	Sevro Actuator	Standard:	ASTM F1566, EN1957
Wooden Hex Barrel Weight:	109KG	Cylinder Weight:	140 KG.

Aluminum:	High Quality Industrial Aluminum Production Frame
Controller:	PLC+ Touch Screen
Motor:	Sevro Actuator
Standard:	ASTM F1566, EN1957
Wooden Hex Barrel Weight:	109KG
Cylinder Weight:	140 KG.

Product Description

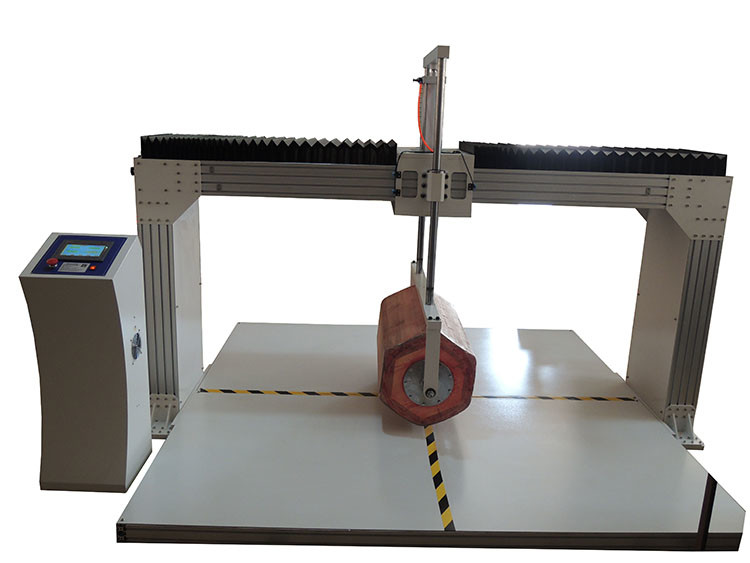

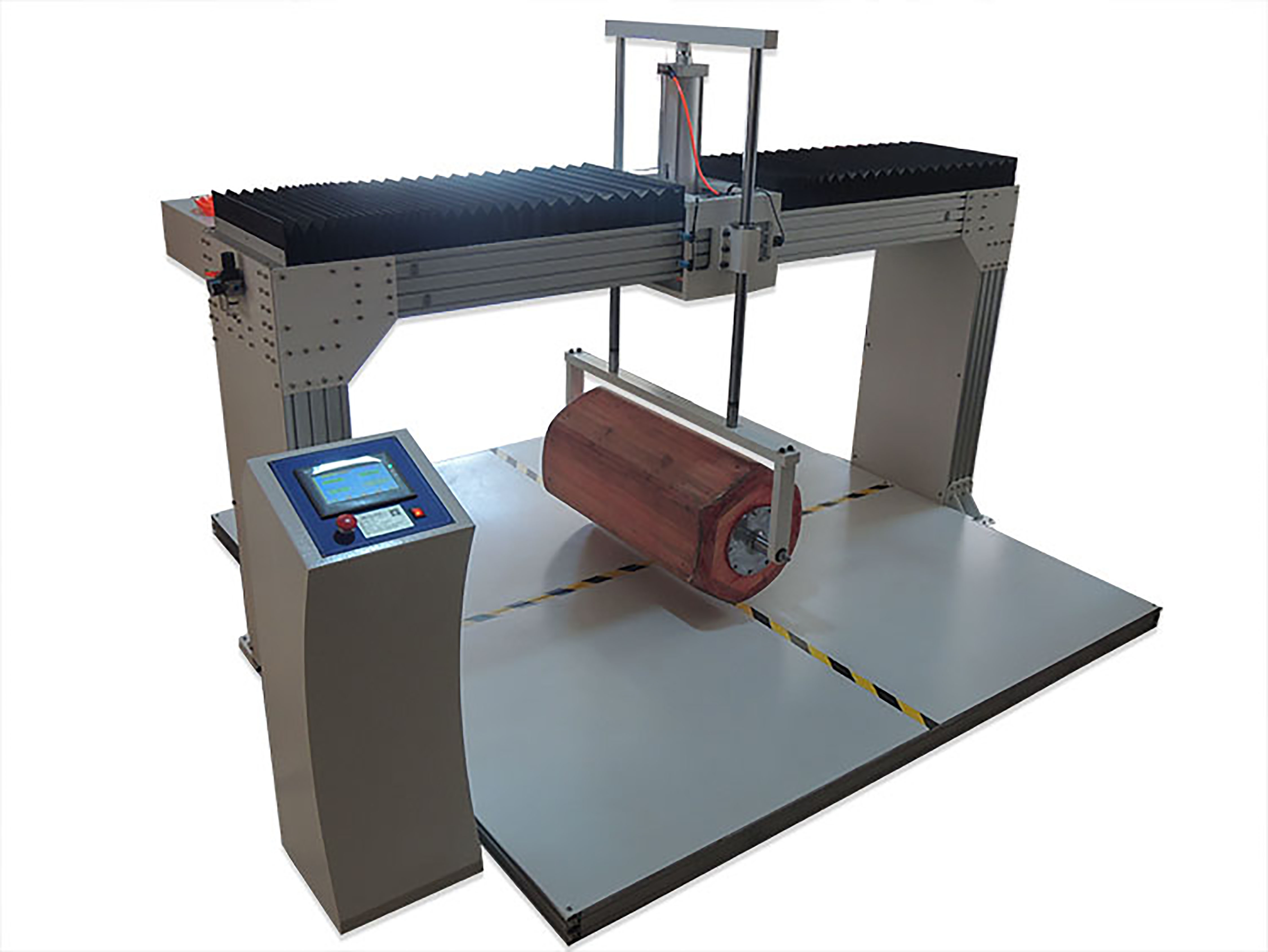

ASTM F1566 Innerspring Box spring PLC Controlled Mattress Rollator Testing Machine

Product information
To determine the durability of any type of mattress and boxspring unit (regardless

of the materials) by simulating long term use condition.

The Rollator type mattress durability tester determines the quality of support of mattress and box spring unit after repeatedly impacts and cyclic movement applied on the surface, Using the cylinder or hexagon to simulate the body of human continuously roll on the mattress.

Technical parameters

Hexagonal wood barrel (ASTM F1566)	109kg, Length 36±3in(915±75mm)
Maximum size of mattress	2.2m×2.5m
Test speed	0-20r/min
Control method	PLC+ touch screen
Dimension	2500mm×2800mm×2200mm
Power	AC220V±10%, 50/60Hz, single phase
Accessory	One Hexagonal barrel
According to different mattress to adjust the rolling stroke (adjust the limit switch position)
Low coefficient of friction guide, ensure full drum weight on the mattress.
LCD Touch Screen display provides easy control and setting, also with USB port to output test results.

Testing Standards
ASTM F1566

Features

PLC controller with large colorful touch panel
Motor: servo motor, precise force control
Test procedure can be programmed on the panel
Automatically stops after preset cycles completed
Emergency stop buttons
Over moving limit protection
Wooden roller softly contacts the surface of the mattress

The mattress durability tester is used for

Boxspring Mattresses
Innerspring Mattresses
Polyurethane Mattresses
