10cm2 Round Textile Testing Instruments , Dia3.5mm Fabric Testing Machine

Place of Origin China
Brand Name SKYLINE
Certification Calibration certificate
Model Number SL-F01A
Minimum Order Quantity 1 unit
Price negoitable
Packaging Details Carton box
Delivery Time 7 working days
Payment Terms Western Union, , T/T
Supply Ability 10 unit / month
Product Details
SKYLINE: Sample Cutter Model: SL-F01A
Specimen Area: 10 Cm2 Specimen Diameter: 3.5mm (Approx)
Highlight:

dia3.5mm textile testing instruments

,

10cm2 textile testing instruments

,

10cm2 fabric testing machine
Product Description

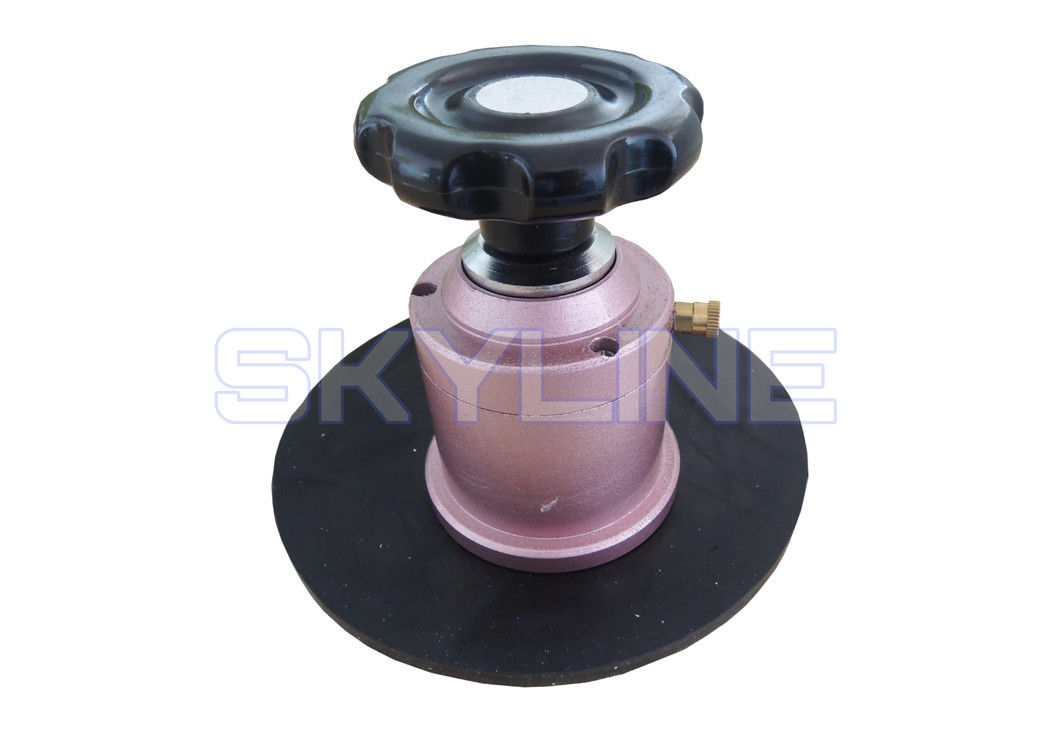

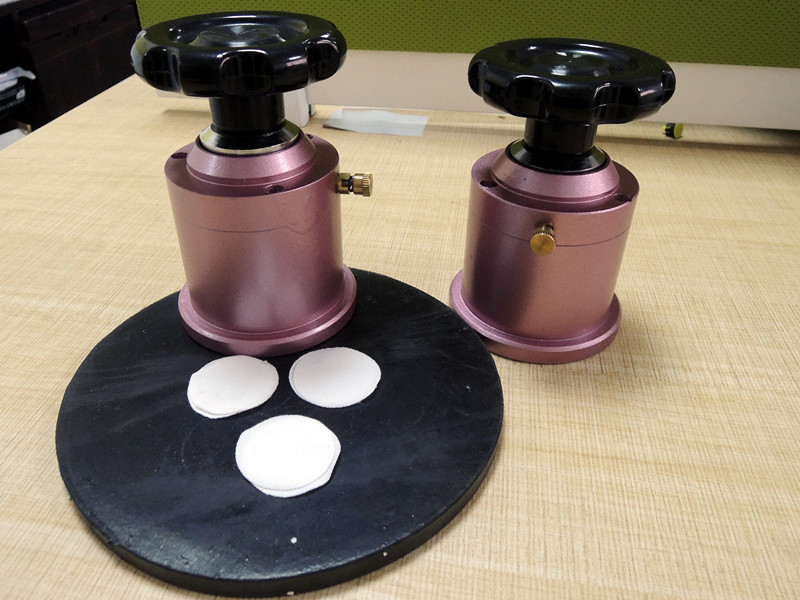

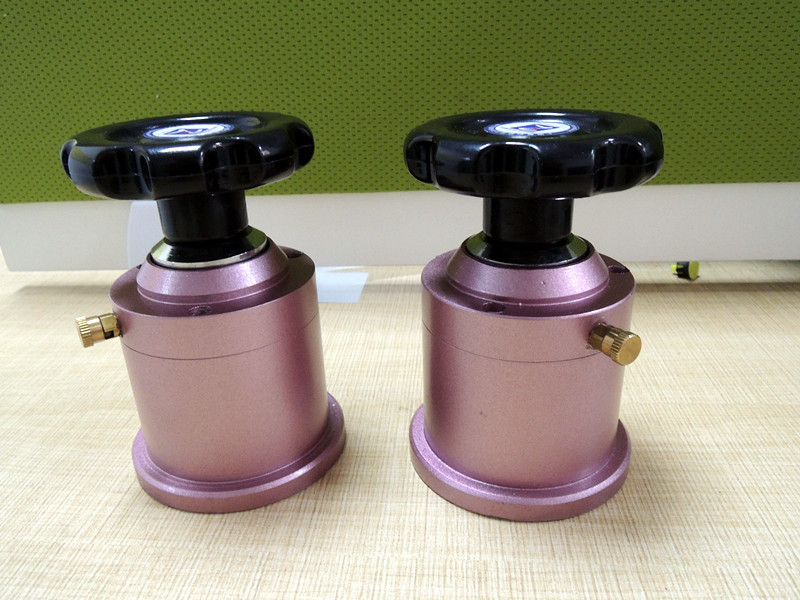

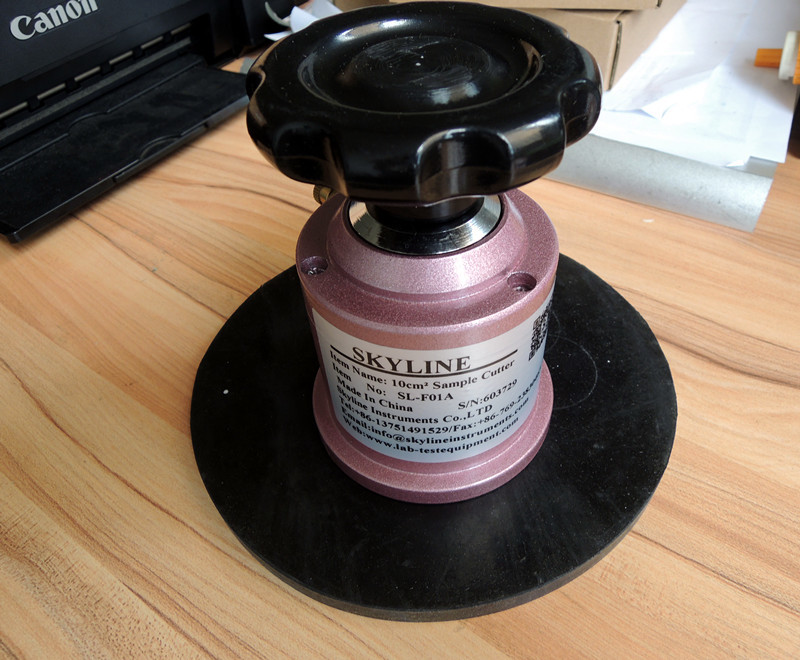

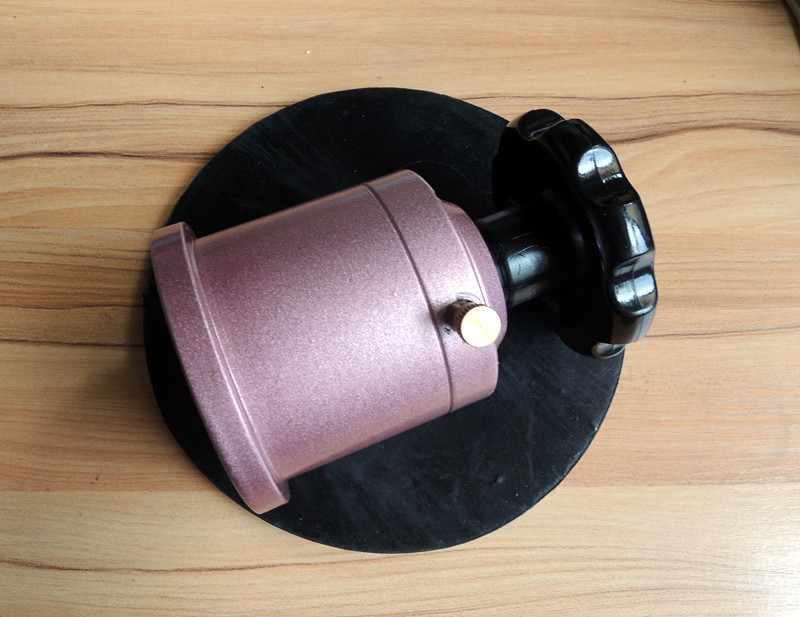

Round Cutter / Sample Cutter



Product Information

A specialized instrument to determine the GSM of the textiles (Woven, Non Woven or Knitted, Fabrics) Our Round Cutter can be used for virtually any type of material including Film, Foam, Carpet Paper and Board.
The unit is recommended for Yield testing i.e. determination of weight per unit area. The sample cutter cuts out rapidly and accurately circular specimens of 100 Sq. cm. which is exactly One Hundredth of a Square Meter, the result in grams, multiplied by 100, gives grams per square meter.



GRAMS Per Square METER = Specimen Weight in Grams x 100



Technical details
Specimen area 10 cm2

Specimen diameter 3.5 mm (Approx)
Type of cut standard
Blades heavy duty (German)for long life

Rubber pad for this application for repeteive test without fall



Accessory
For determining the weight per area, a weighing scale having the minimum sensitivity of 0.01 g is required.
