ISO 12945-2 ASTM D4966 Textile Testing Equipment Martindale Abrasion And Pilling Tester

Product Details

Place of Origin: CHINA

Brand Name: SKYLINE

Certification: Calibration certificate

Model Number: SL-F04

Payment & Shipping Terms

Minimum Order Quantity: 1 unit

Price: Textile Testing Equipment

Packaging Details: Carton box

Delivery Time: 7 working days

Payment Terms: Western Union, MoneyGram, T/T

Supply Ability: 10 unit / month

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                textile lab equipment, textile testing instruments, ASTM D4966 Textile Testing Equipment


SKYLINE:	Martindale Abrasion And Pilling Tester	Test Station:	4 Stations
Wear Resistance Stroke:	60.5±0.5mm	Pilling Stroke:	24±0.5mm
Flattening Weight:	2.5±0.5kg, Diameter 120±10mm	Power Supply:	1∮ AC 220V 3A

SKYLINE:	Martindale Abrasion And Pilling Tester
Test Station:	4 Stations
Wear Resistance Stroke:	60.5±0.5mm
Pilling Stroke:	24±0.5mm
Flattening Weight:	2.5±0.5kg, Diameter 120±10mm
Power Supply:	1∮ AC 220V 3A

Product Description

ISO 12945-2 ASTM D4966 Martindale Abrasion And Pilling Tester With 4 Test Stations

Product Introduction

This machine is suitable for testing woven fabrics, knitted fabrics, pile fabrics with a height of 2mm or less, non-woven fabrics, coated fabrics (ie, woven fabrics and knitted fabrics, and the coated parts are formed on the fabric surface). The abrasion resistance of the continuous film (sample damage, mass loss, appearance change), pilling performance.

Principle

Under the specified pressure, the circular specimen is rubbed with the same fabric or wool fabric abrasive fabric for a certain number of times with the Lissajous pattern trajectory, and the wear resistance and the pilling performance of the specimen are examined.

According to the standard

This tester is manufactured according to ISO 12947-1~3, ISO 12945-2, GB/T 21196.1~4, ASTM D4966 and other standards.

Instrument specifications

Project	Specification
Test station	4 stations
Wear resistance stroke	60.5±0.5mm
Pilling stroke	24±0.5mm
Test speed	External wheel: 47.5±2.5r/min, inner wheel: 44.5±2.4r/min
Test pressure Wear resistance	595 ± 7g / 795 ± 7g, hair ball: 415 ± 2g
Flattening weight	2.5±0.5kg, diameter 120±10mm

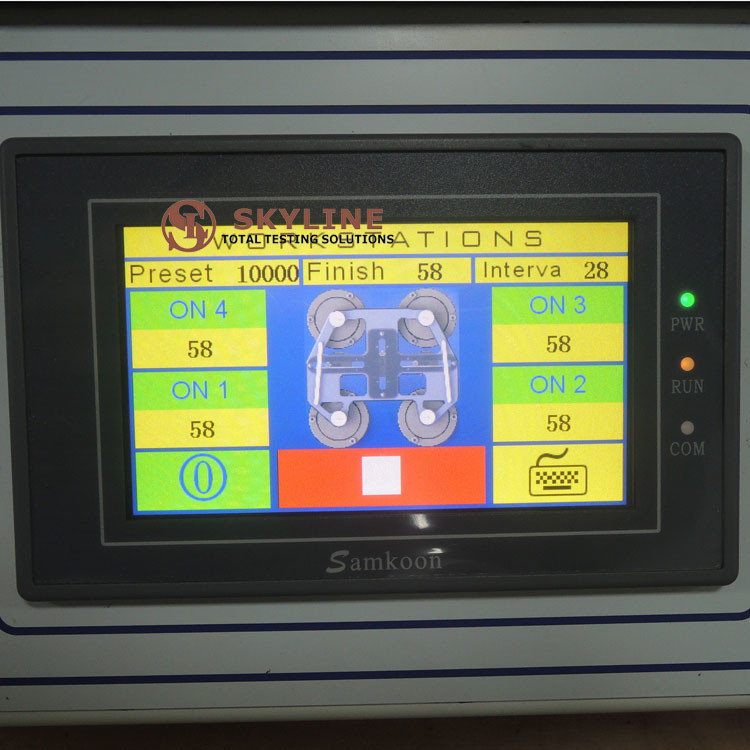

Controller	PLC touch screen control
Volume (WxDxH)	48x50x36cm
Weight (approx.)	≈50Kg
Power supply	1∮ AC 220V 3A

Martindale Abrasion And Pilling Tester.pdf

What is Martindale abrasion and pilling tester?

Martindale Abrasion & Pilling Tester determines the abrasion and pilling resistance of all kinds of textile structures. Samples are rubbed against known abrasives at low pressures and in continuously changing directions. The amount of abrasion or pilling is compared against standard parameters.

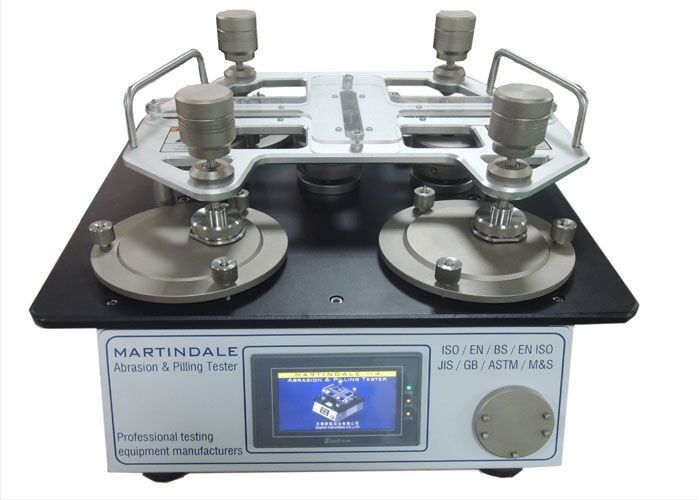

ISO 12945-2 ASTM D4966 Textile Testing Equipment Martindale Abrasion And Pilling Tester 0

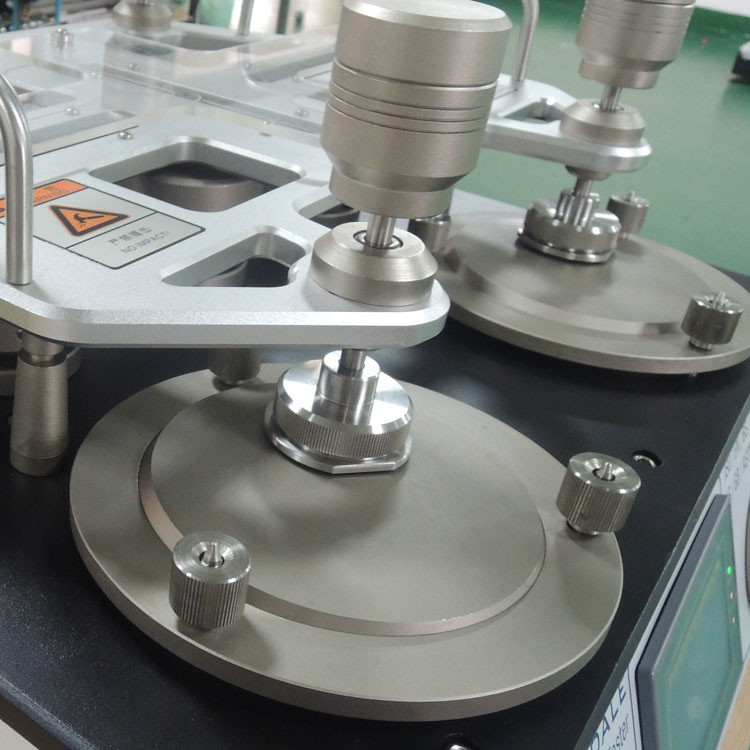

ISO 12945-2 ASTM D4966 Textile Testing Equipment Martindale Abrasion And Pilling Tester 1

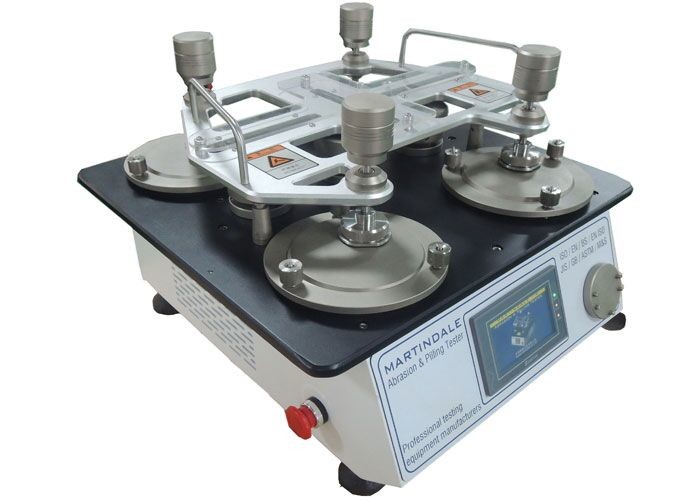

ISO 12945-2 ASTM D4966 Textile Testing Equipment Martindale Abrasion And Pilling Tester 2
