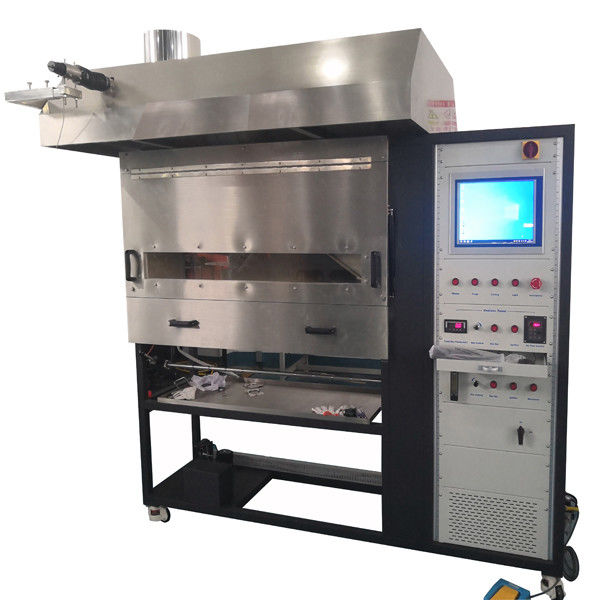

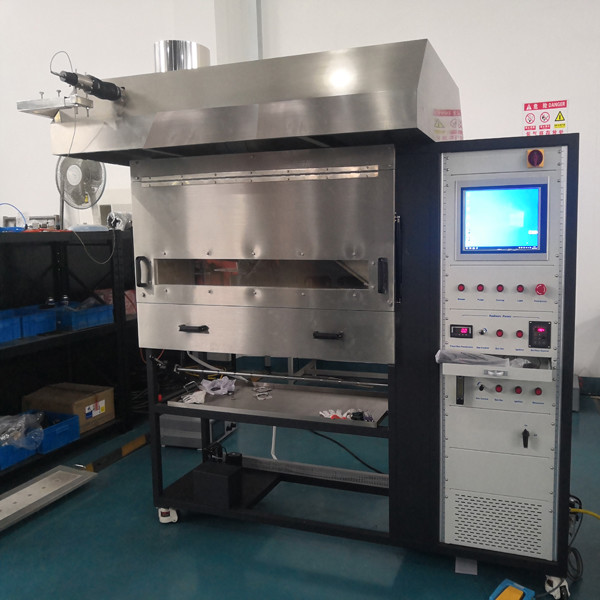

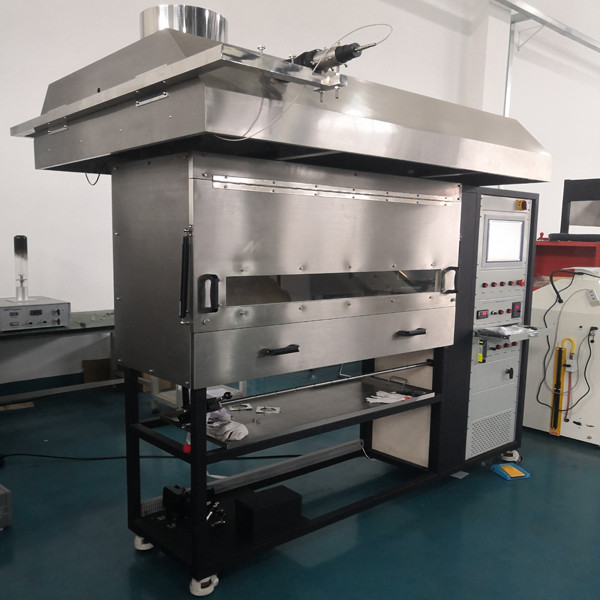

Building Materials Flammability Tester Radiant Flooring Panel Apparatus
Features
1. Blower for gas supply of radiant plate can supply gas continuously, while air compressor supply gas uncontinuously.
2. Heat Flux meter, portable water cooling system without running water supply.
3. Ventilation hood of stainless steel on the top of the chamber.
4. Inner chamber of Heat and corrosion resistant Aluminum silicate plate.

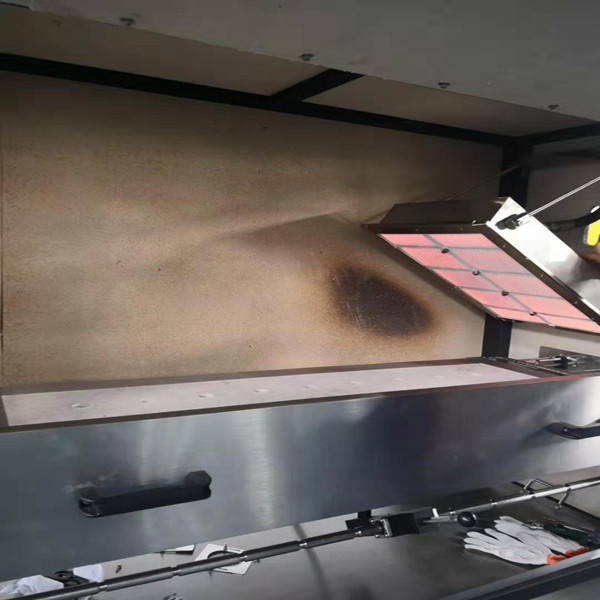

5. Heat resistant honeycomb ceramic thermal radiant plate 300mmX450mm, inclined at 30 degree.

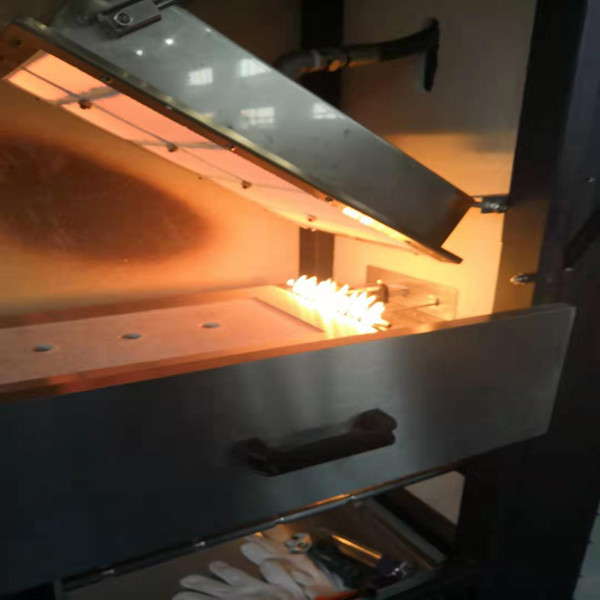

6. T-shape porous burner with auto ignition system ignites the specimen with automatic push system.
7. Gas control board. Needle valve control the height of burner flame, MFC controls the gas flux and digital display.
8. Inverter control blower output, ventruri control the proportion of air and gas, and flame is stable, and accurate.
9. porous calibration apparatus: adjust radiant plate output by turning upward, left or right.
10. IR radiometer shows the temperature of the radiant plate.
11. Optional smoke density testing system.
12. Optical system 2900 ± 100 K light advanced optical signal receiver.
13. integrated design with 19" PC of Lab view software.
14. Chimney with1pc thermocouple, and 1pc thermocouple inner Chamber controlled by software.
Standards
ISO 9239-1 reaction to fire test of flooring material, Part 1, measure the combustion performance of flooring material with radiant heat.
ISO 9239-2 reaction to fire test of flooring material, Part 2, measure the horizontal spread of flame, exposed to 25kw/m2 heat flux.
ASTM E 648 Standard test method for flooring covering system CHF with heat radiant energy source.
ASTM E 970 Standard test method for flooring material CHF of exposed attic floor insulation using heat radiant energy source.
NFPA 253 Standard test method for CHF of floor covering system with heat radiant energy source.
DIN 4102
Specification
| Dimension testing chamber |
2220(W)×1500(D)×2650(H)mm |
| Control chamber |
600(W)×600(D)×1600(H)mm |
| Gas control chamber |
600(W)×600(D)×1000(H)mm |
| Power |
AC 220V, 50/60Hz, 25A |
| Weight |
220kg |
| Air supply option propane |
95% |
Test Report
| Report |
| Testing agency |
|
| Standard |
|
| Operator |
|
Test date |
|
| Ambient temperature |
|
Environment humidity |
|
| Equipment deadline |
|
| Product name |
|
Sample serial number |
|
| Model specification |
|
| Sample size |
|
Device Code |
|
| Material density (g/㎡) |
|
Test time(s) |
|
| Debug balance |
|
| Test Results: |
| Distance (mm) |
Flame front end time(s) |
Distance(mm) |
Flame front end time(s) |
| 60 |
|
560 |
|
| 110 |
|
610 |
|
| 160 |
|
660 |
|
| 210 |
|
710 |
|
| 260 |
|
760 |
|
| 310 |
|
810 |
|
| 360 |
|
860 |
|
| 410 |
|
910 |
|
| 460 |
|
960 |
|
| 510 |
|
1100 |
|
| The front end of the flame reaches the longest distance (cm) |
|
Critical radiant flux(kW/m2) |
|
| Total smoke value(%.min) |
|
Maximum absorption rate(%) |
|
| 10min flame front end reach distance(mm) |
|
10min critical radiant heat value(kW/m2) |
|
| 20min flame front end reach distance(mm) |
|
20min critical radiant heat value(kW/m2) |
|
| 30min flame front end reach distance(mm) |
|
30min critical radiant heat value(kW/m2) |
|
| Ignition time(s) |
|
Flame extinction time(s) |
|
| The phenomenon observed during the test: |
|
Applications
- Flooring covering systems (carpets, resilient flooring, laminates)
- Exposed attic floor insulation materials
- Building material flammability testing
- Quality control and product development for floor coverings
- Regulatory compliance testing for building codes and fire safety standards
- Research and development in fire safety engineering
Frequently Asked Questions
Q1: What is this equipment used for?
A1: It measures the critical radiant flux of floor-covering systems and the smoke density of flooring materials, helping determine how far and fast flames spread under radiant heat.
Q2: What standards does it comply with?
A2: It complies with ISO 9239-1/2, ASTM E648, ASTM E970, and NFPA 253 for flooring and insulation flammability testing.
Q3: What materials can be tested with this apparatus?
A3: It is designed for floor coverings (carpets, resilient flooring, laminates) and attic floor insulation materials.
Q4: How does the ignition system work?
A4: The T-shaped porous burner features an auto-ignition system and automatic push mechanism, ensuring consistent, safe, and hands-free specimen ignition.
Q5: Does it require a continuous water supply for cooling?
A5: No, the heat flux meter includes a portable water cooling system, so no external running water supply is needed.
Q6: Can it measure smoke density as well?
A6: Yes, an optional smoke density testing system with a 2900 ± 100 K optical system can be integrated to measure total smoke production.
Q7: What industries typically use this equipment?
A7: Building material manufacturers, fire testing laboratories, research institutions, and regulatory bodies use it for quality control, R&D, and compliance testing.
Q8: How is the test data recorded and managed?
A8: The system includes a 19" PC with LabVIEW software for automated test control, real-time data logging, and report generation.
