Household Electronic Testing Equipment , 0.5 J Single Energy Spring Impact Test Hammer
| MOQ: | 1 unit |
| Price: | Negoitable |
| Standard Packaging: | plywood case |
| Delivery Period: | 5 working days |
| Payment Method: | Western Union, MoneyGram, T/T |
| Supply Capacity: | 1 pcs/ month |
Detail Information
Place of Origin
China
Brand Name
SKYLINE
Certification
Calibration Certificate
Model Number
SL-SE02
SKYLINE:
Spring Impact Test Hammer
Standards:
IEC60068-2-75 ,IEC60065,IEC884 And UL1244
Weight:
1250g
Length:
211mm
Hammer Radius:
10mm
Hammer Weight:
60g
Highlight:
sharp edge tester
,electronic testing machine
Product Description

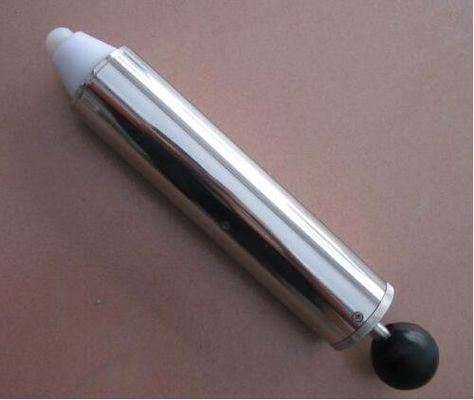

Household Electronic Testing Equipment , 0.5 J Single Energy Spring Impact Test Hammer
Introduction
Spring hammer impact tester is used to check the durability of enclosures for electrical appliances of other electronic products. If damage occurs from the Impact Hammer test .Accessibility probes can be used to measure the extent or severity of the damage. The Impact Hammer simulates the mechanical impact to which electrical equipment may be subjected. , impact hammer test,
Applications
This hammer is mainly used to test household and similar electrical appliances shell, lever, handle, knobs, lights and other shell to withstand mechanical shocks. The impact tester made of stainless steel or alloy.
Technical parameters
|
Type
|
Impact Energy(J)
|
Tolerance Mistake
|
|
Spring Impact Energy
|
0.14
|
0.014
|
|
Spring Impact Energy
|
0.20
|
0.02
|
|
Spring Impact Energy
|
0.35
|
0.03
|
|
Spring Impact Energy
|
0.50
|
0.04
|
|
Spring Impact Energy
|
0.70
|
0.05
|
|
Spring Impact Energy
|
1.00
|
0.05
|
|
Spring Impact Energy
|
2.00
|
0.10
|
|
Universal Energy
|
0.14
|
1.00
|
Specifications
|
Length
|
211mm
|
Hammer Weight
|
60g
|
|
Weight
|
1250g
|
Hammer radius
|
10mm
|
|
OD
|
50 mm
|
The release force of impact
|
<10N
|
|
Impact Components
|
Including the hit ball handle the hammer,weight 250g
|
||
What is spring hammer?
Definition of spring hammer: a machine-driven hammer whose blow is caused or increased by the extension of a compressed spring or the expansion of a body of compressed air.
Definition of spring hammer: a machine-driven hammer whose blow is caused or increased by the extension of a compressed spring or the expansion of a body of compressed air.
