Household Electronic Testing Equipment , 0.5 J Single Energy Spring Impact Test Hammer

Place of Origin China
Brand Name SKYLINE
Certification Calibration Certificate
Model Number SL-SE02
Minimum Order Quantity 1 unit
Price Negoitable
Packaging Details plywood case
Delivery Time 5 working days
Payment Terms Western Union, , T/T
Supply Ability 1 pcs/ month
Product Details
SKYLINE: Spring Impact Test Hammer Standards: IEC60068-2-75 ,IEC60065,IEC884 And UL1244
Weight: 1250g Length: 211mm
Hammer Radius: 10mm Hammer Weight: 60g
Highlight:

sharp edge tester

,

electronic testing machine
Product Description

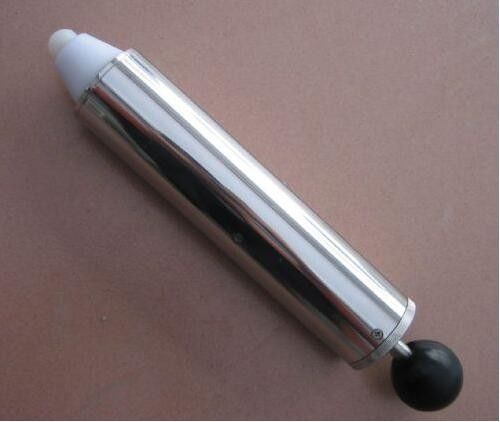

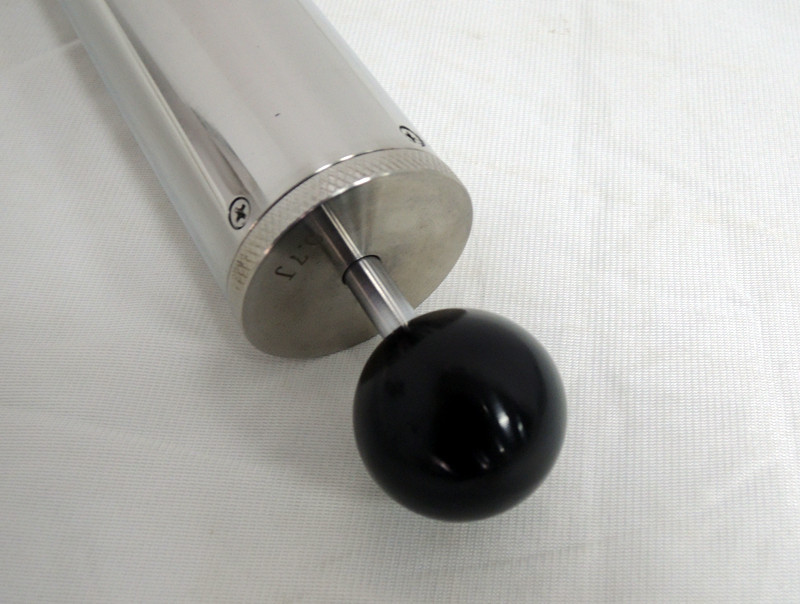

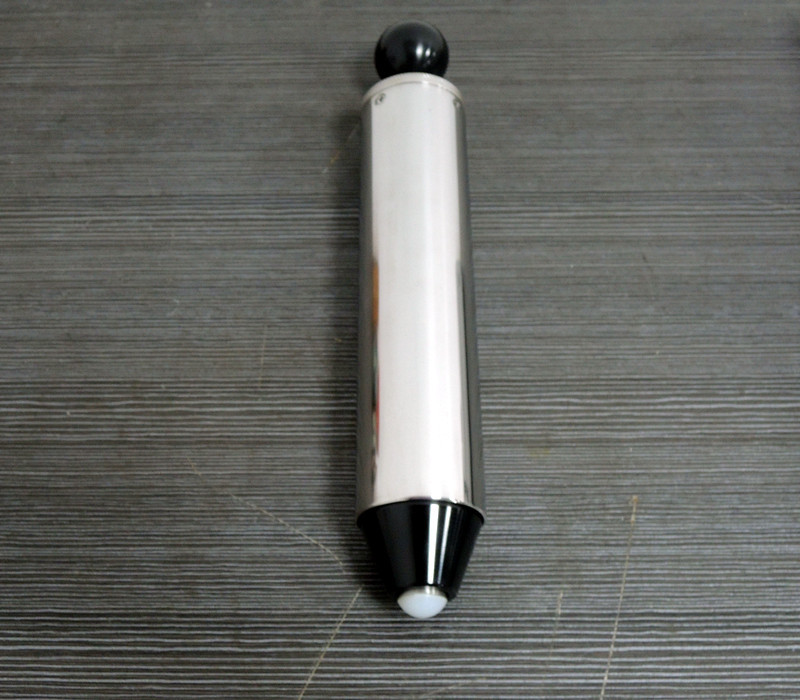

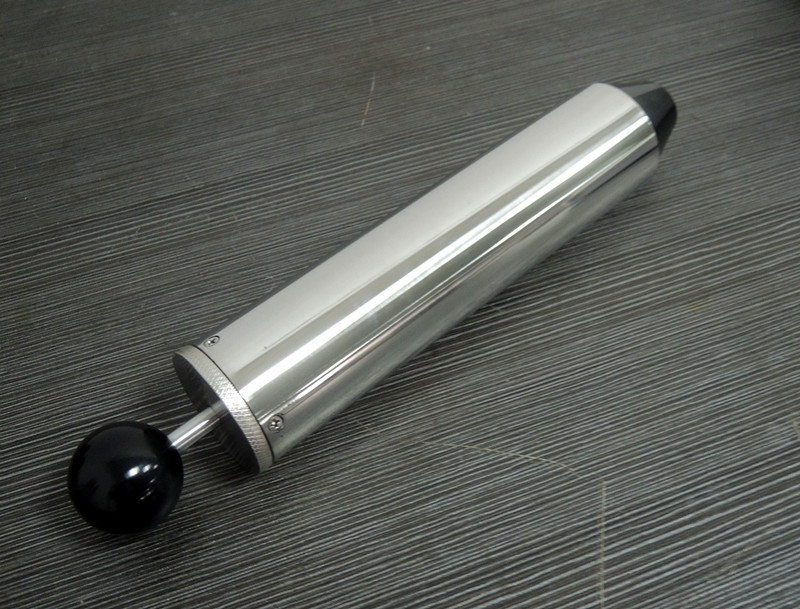

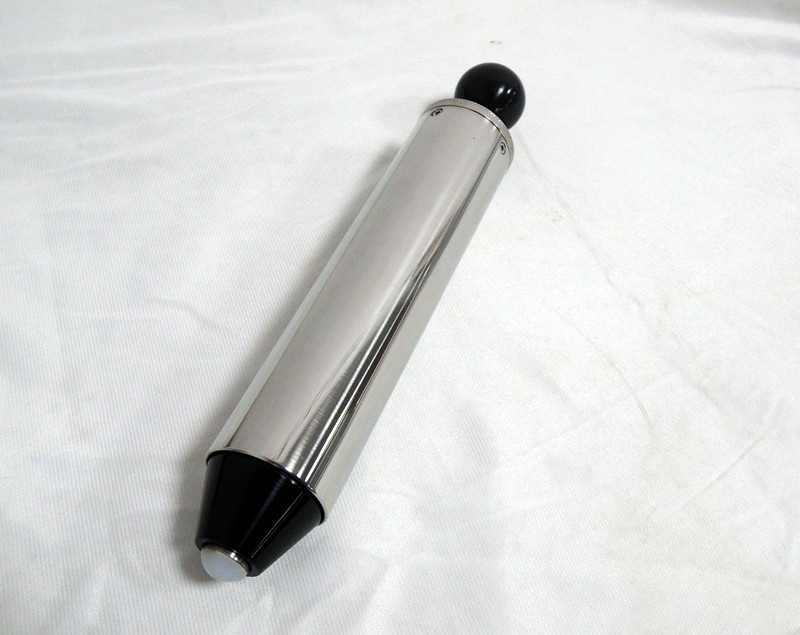

Household Electronic Testing Equipment , 0.5 J Single Energy Spring Impact Test Hammer



Introduction

Spring hammer impact tester is used to check the durability of enclosures for electrical appliances of other electronic products. If damage occurs from the Impact Hammer test .Accessibility probes can be used to measure the extent or severity of the damage. The Impact Hammer simulates the mechanical impact to which electrical equipment may be subjected. , impact hammer test,


Applications
This hammer is mainly used to test household and similar electrical appliances shell, lever, handle, knobs, lights and other shell to withstand mechanical shocks. The impact tester made of stainless steel or alloy.



Technical parameters

 Type
 Impact  Energy(J)
 Tolerance Mistake
 Spring Impact Energy

 0.14
 0.014
 Spring Impact Energy



 0.20
 0.02
 Spring Impact Energy
 0.35
 0.03
 Spring Impact Energy
 0.50
 0.04
 Spring Impact Energy
 0.70
 0.05
 Spring Impact Energy
 1.00
 0.05
 Spring Impact Energy
 2.00
 0.10
 Universal Energy
 0.14
 1.00

Specifications
 Length
 211mm
 Hammer Weight
 60g
 Weight
 1250g
 Hammer radius
10mm
 OD
 50 mm
 The release force of impact


 <10N
 Impact Components
 Including the hit ball handle the hammer,weight 250g

What is spring hammer?
Definition of spring hammer: a machine-driven hammer whose blow is caused or increased by the extension of a compressed spring or the expansion of a body of compressed air.
