Leather / Rubber Testing Equipment , DIN-53516 Din Abrasion Tester For Shoes

Name: Leather / Rubber Testing Equipment , DIN-53516 Din Abrasion Tester For Shoes
Brand: SKYLINE
SKU: SL-L03
Rating: 4.9 (153 reviews)

Product Details

Place of Origin: China

Brand Name: SKYLINE

Certification: CE

Model Number: SL-L03

Payment & Shipping Terms

Minimum Order Quantity: 1 unit

Packaging Details: plywood case

Delivery Time: 15 working days

Payment Terms: Western Union, MoneyGram, T/T

Supply Ability: 1 pcs/ month

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                leather testing machine, leather softness tester


Standards:	DIN-53516	Specimen Load:	10N 0.2N.
Scale:	0.1 ~ 10mm	Diameter Abrasive Wheel:	150 450L (mm).
Emery Cloth:	60 #, 425 473 1.5 (mm).	Set Rotation:	84 Rotate (about 40M).

Standards:	DIN-53516
Specimen Load:	10N 0.2N.
Scale:	0.1 ~ 10mm
Diameter Abrasive Wheel:	150 450L (mm).
Emery Cloth:	60 #, 425 473 1.5 (mm).
Set Rotation:	84 Rotate (about 40M).

Product Description

Leather Testing Equipment DIN-53516 Din Abrasive Tester for Rubber and Leather

Main function of DIN abrasive tester is to test the friction of surface by a particular piece of sandpaper, After friction for a certain time, and then assess the condition of material surface, weight, volume and thickness, from this standard to assess the abrasive nature of materials.
Applicable industry
Applied to test leather performance in shoes, clothing, luggage handbag industry, research laboratories; Commodity inspection, arbitration and technical supervision departments.
Technical parameters
Specimen Size: 16mm, thickness at least 6mm.
Specimen Load: 10N 0.2N.
Diameter of wear wheel: 150mm.
Speed of wear wheel: 40 1RPM.
Emery cloth Specification: 60 #, seam is less than 2mm.
Testing Length: 40M (about 84 rotate).
Horizontal displacement: 4.2mm / rotate.

Machine Specifications

Test-arm weight	250 5 (g)
Testing Load	2.5N, 7.5N
Diameter abrasive wheel	150 450L (mm)
Emery cloth	60 #, 425 473 1.5 (mm)
Wheel Speed	40 1RPM
Shift screw	6 teeth / inch
Limit rotation	85 rotate
Set rotation	84 rotate (about 40M)
Return form	Electric automatic reset
Drive Power	220V 50Hz
Power	220V 50Hz
Machine Dimensions	600 330 420 (mm)
Machine Weight	75kg

Testing standards

DIN-53516; ISO-4649; GB/T9867-88;

Roll diameter	150mm
Fixture lateral displacement	4.2mm/hoop each lap
Rooling speed	40rpm
Volume	956631cm
Weight	50kg
Power	220V 50HZ

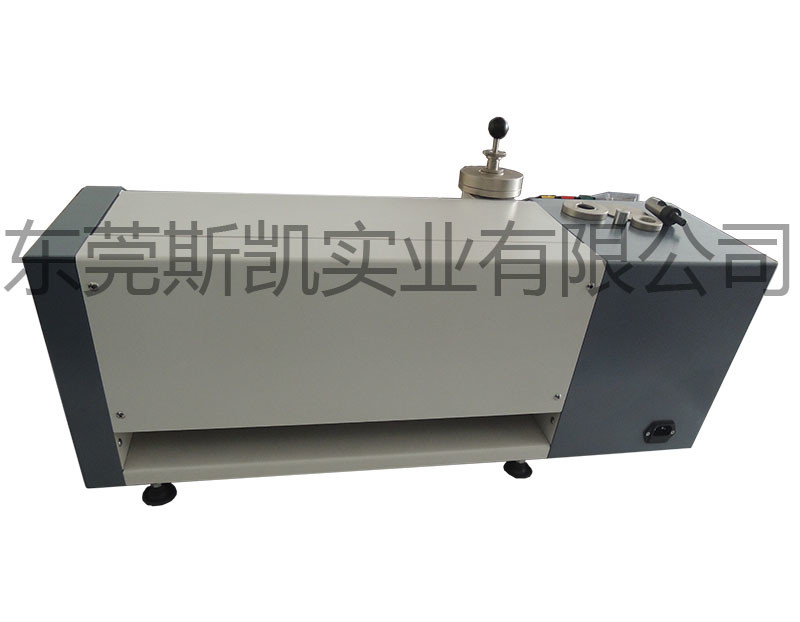

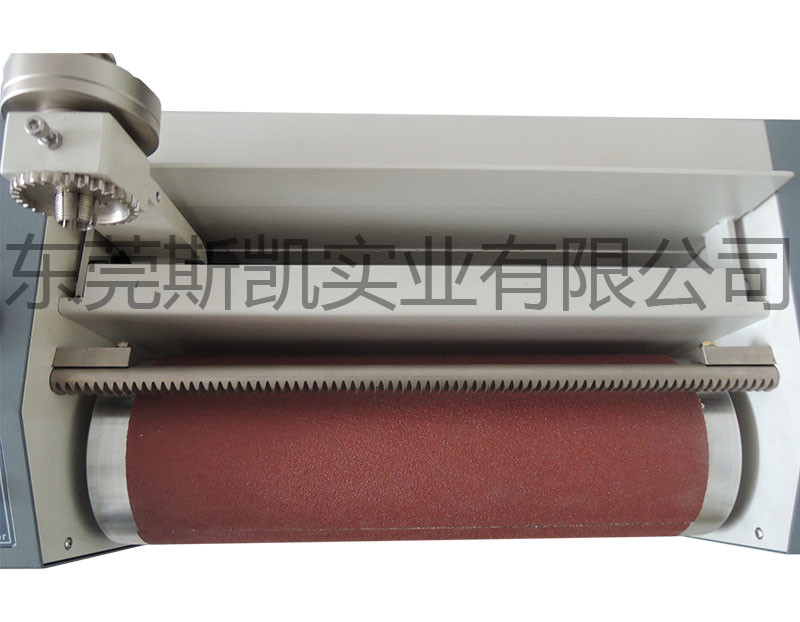

Leather / Rubber Testing Equipment , DIN-53516 Din Abrasion Tester For Shoes 0
