Durable Textile Testing Equipment Constant Temperature Oscillation Dyeing Machine

Name: Durable Textile Testing Equipment Constant Temperature Oscillation Dyeing Machine
Brand: SKYLINE
SKU: SL-FD03
Rating: 4.9 (112 reviews)

Product Details

Place of Origin: China

Brand Name: SKYLINE

Certification: Calibration certificate

Model Number: SL-FD03

Payment & Shipping Terms

Minimum Order Quantity: 1 unit

Price: negoitable

Packaging Details: Carton box

Delivery Time: 7 working days

Payment Terms: Western Union, MoneyGram, T/T

Supply Ability: 10 unit / month

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                textile testing machines, textile testing instruments


SKYLINE:	Oscillation Dyeing Machine	Material:	Stainless Steel SUS304 Sheet
Temperature:	Maximum Temperature Of 100 ℃	Shake Speed:	0-200 Cycle /min
Power:	AC220V, 50HZ	Weight:	50kg

SKYLINE:	Oscillation Dyeing Machine
Material:	Stainless Steel SUS304 Sheet
Temperature:	Maximum Temperature Of 100 ℃
Shake Speed:	0-200 Cycle /min
Power:	AC220V, 50HZ
Weight:	50kg

Product Description

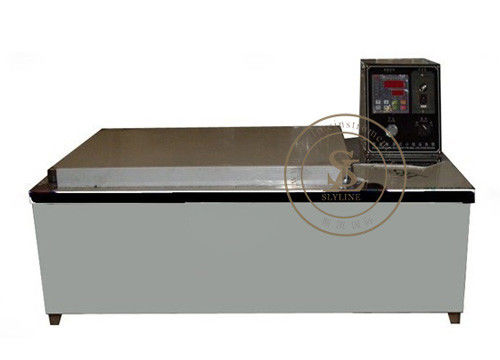

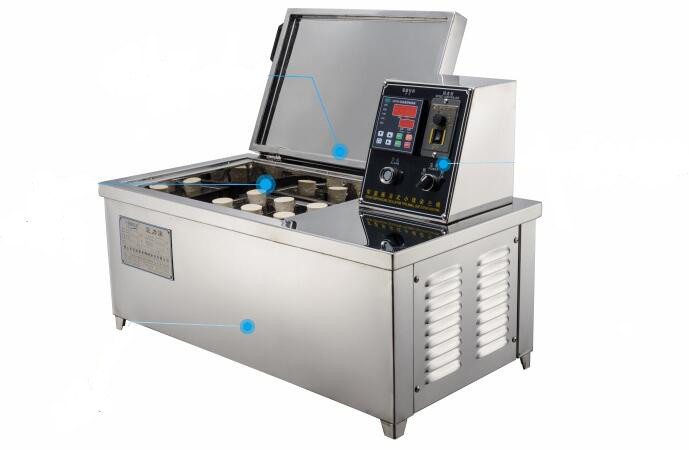

Textile Testing Equipment Constant Temperature Oscillation Dyeing Machine

This machine is ayeing trial machine that is extremely convenient for normal temperature dyeing.Besides,

neutral,alkaki and other additives can be added during the dyeing process.

Certainly,this machine is also applicable for common bath cotton,soap washing and bleaching experiment.

Parameters

1. The whole machine is made of high quality stainless steel 304 sheet.
2. Equipped with precision heating system, PT-100 thermocouple with programmable temperature control computer (with heating rate).
3. Medium for the water, the maximum temperature of 99 ℃. Bath ratio 1: 5-1 ︰ 20.
4. Equipped with Taiwan imported motor and governor. Power AS-12 cup is 40W, AS-24 is 60W.
5. Stainless steel heating tube, power: AS-12 cup for the 3KW, AS-24 for the 6KW.
6. Card cup for the cup or spring structure. 12 or 24 250 ° Glass Triangle Beakers are placed arbitrarily.
7. Also available for 500 triangular beaker, AS-12 can be placed 6, AS-24 can be placed 15.
8. Oscillation speed: 50-200 round trip / min, oscillation distance 36 mm.
9. Power supply specifications: AC220V, 50HZ.
10. 12 cup Dimensions: Front: 880 mm, side: 420 mm, high: 330 mm. Weight is 30 kg
11. 24 cup Dimensions: Front: 1030 mm, side: 560 mm, high: 330 mm. Weight is 50 kg

MAX.TEMP	100℃
Quantity of Cup	12
Heating Model	electrical heating
Shake speed	0-200 cycle /min
Apability of dyeing cup	250ml
