Easy Operate Textile Testing Instruments , Shiftable Horizontal Lab Padder / Skyline

Place of Origin China
Brand Name SKYLINE
Certification CE
Model Number SL
Minimum Order Quantity 1 unit
Price Negoiated
Packaging Details plywood case
Delivery Time 7 working days
Payment Terms Western Union, , T/T
Supply Ability 10 unit / month
Product Details
SKYLINE: Horizontal Lab Padder Weight: 140kg
Roller Dia: 130mm,with 70 Shore Hardness Working Speed: 0-10m/min
Roller’s Loading: 0-0.5Mpa Padding Rate: 25-90%,adjustable
Highlight:

textile testing machines

,

textile testing instruments
Product Description

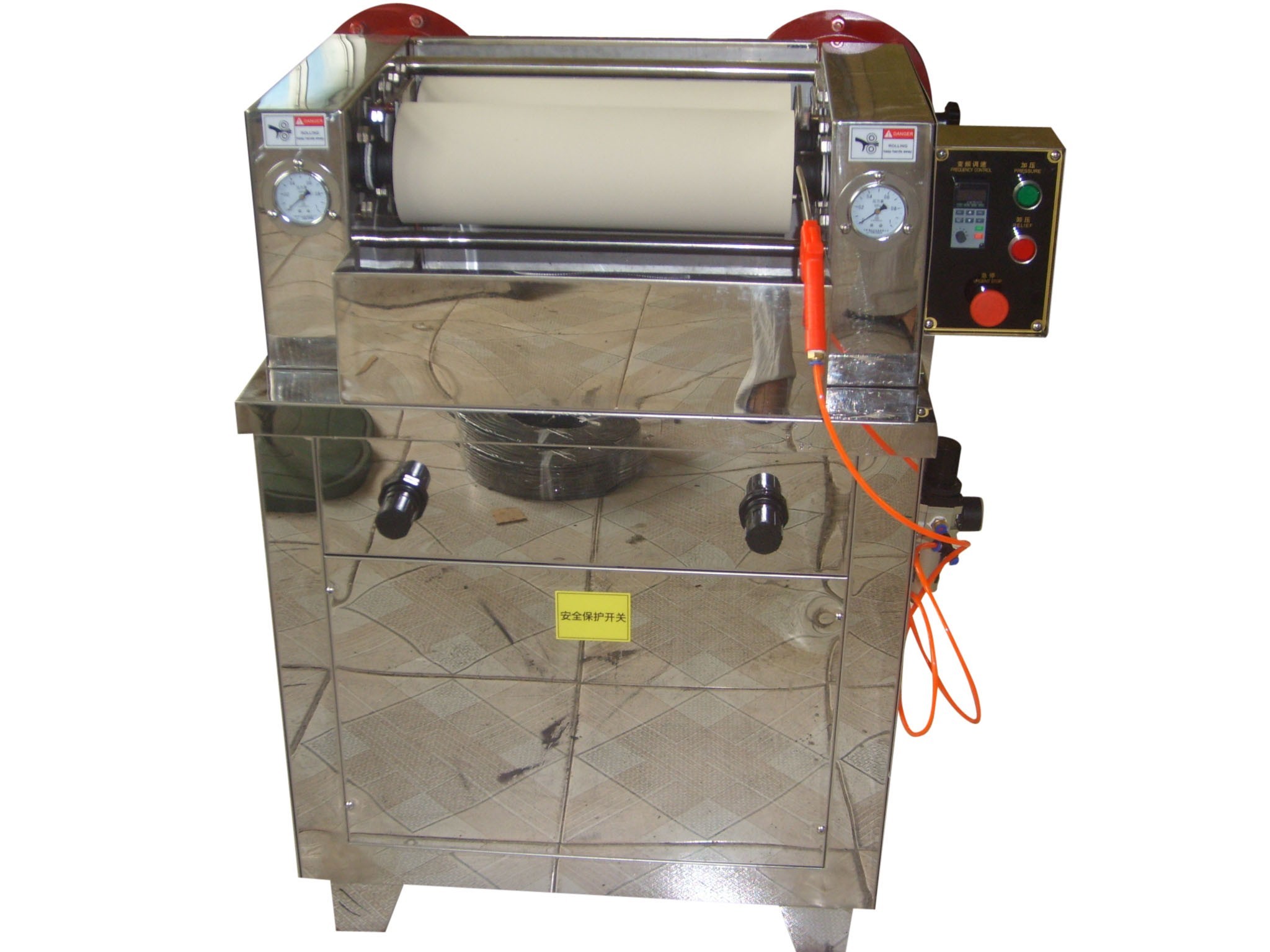

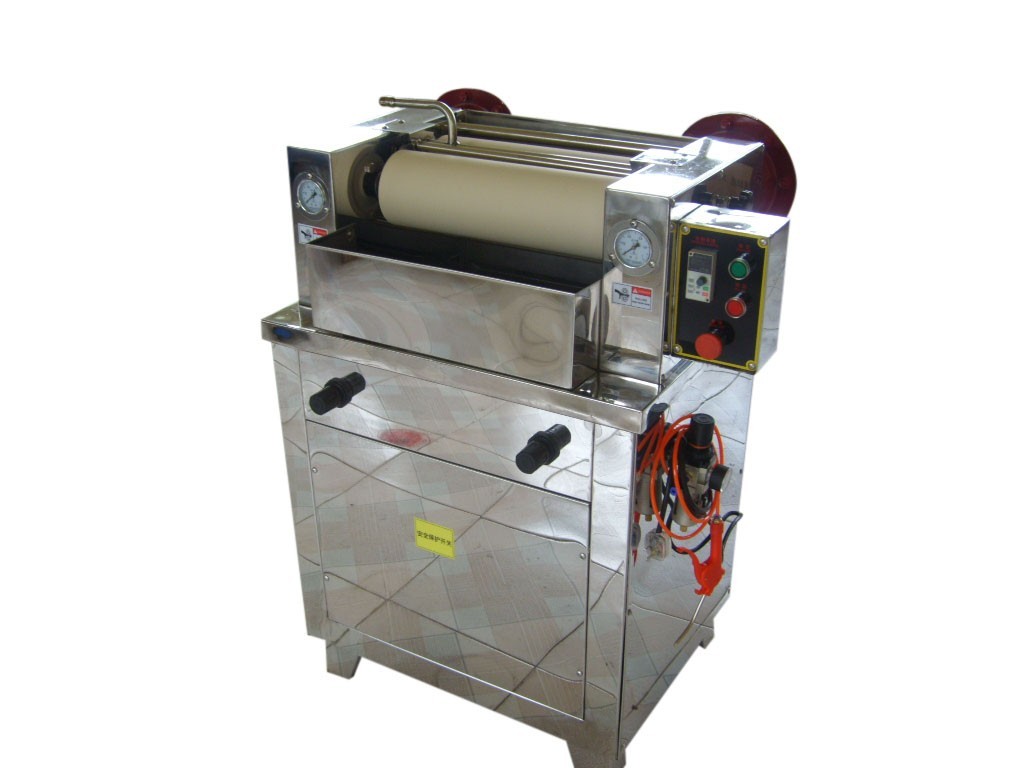

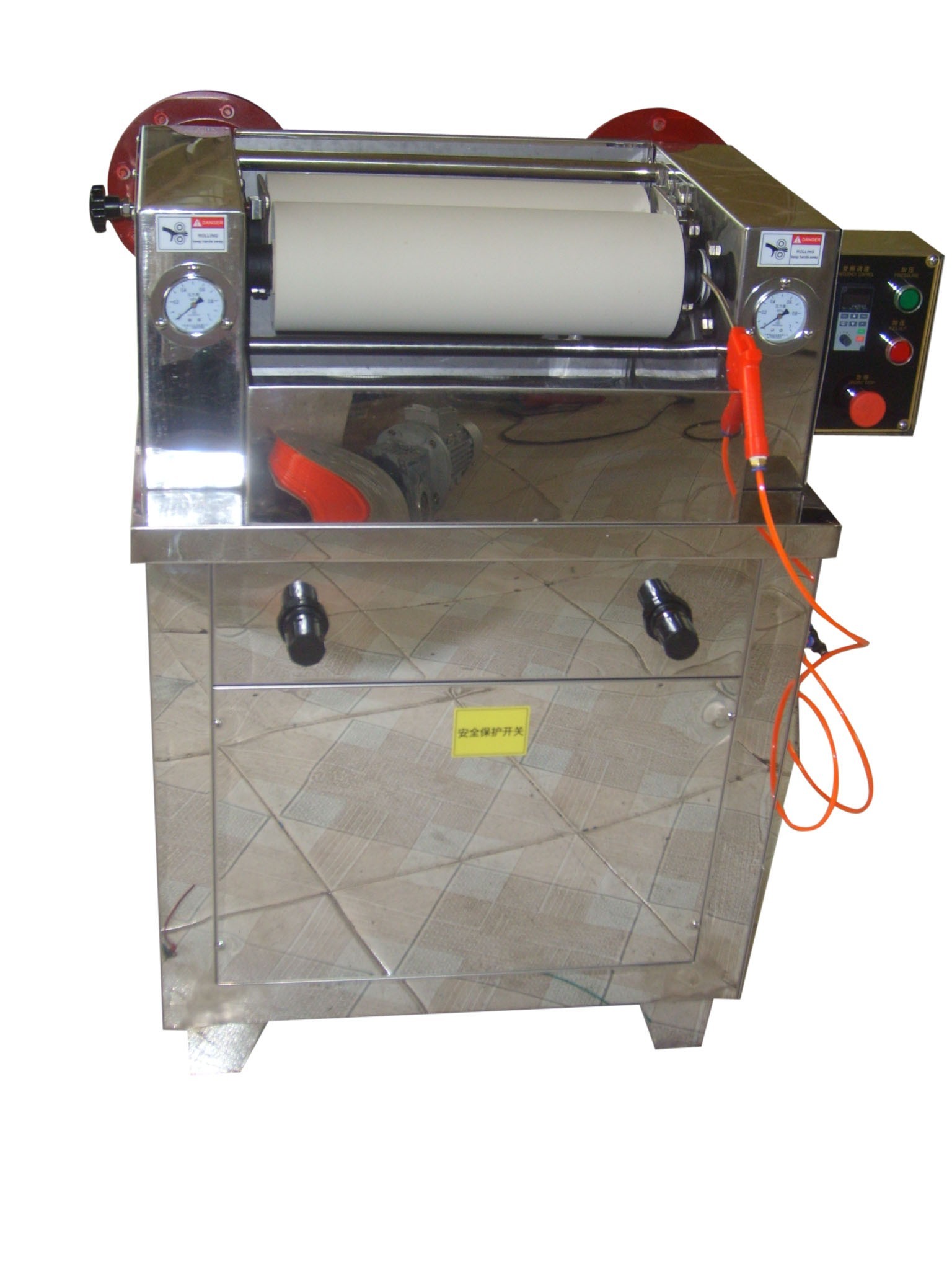

Easy Operate Textile Testing Instruments Shiftable Horizontal Lab Padder



a floor type padding mangle for dyeing, finishing and Impregnating. The unique design combines two positions in one machine, makes the machine can be set in both vertical position and horizontal position, it is easy to operate and set, but also saves a great cost to buy two machines.
This Lab padder is made of quality NBR,good flexibility ensures long-life, main components are imported.The lab padder equipped with emergency button and a knee pedal to stop the machine operation.

Equipped with 2 pressure valve,each side of pressure is adjustable
All panels are made of stainless steel
Equipped with liquor tank



 Working width  420mm
 Rollers  Dia. 130mm,with 70 shore hardness
 Working speed  0-10m/min
 Roller’s loading  0-0.5Mpa
 Padding rate  25-90%,adjustable
 Motor  S7124, 0.37KW, 1400RPM 1
 Horizontal  930×650×1140(LxWxH)
 Weight  140Kg
