1000mm 800mm 600mm Electronic Testing Equipment IEC60335 Stability Test Bench

Place of Origin China
Brand Name SKYLINE
Certification CE
Model Number SL-SE011
Minimum Order Quantity 1 unit
Price Negoitable
Packaging Details plywood case
Delivery Time 15 working days
Payment Terms Western Union, , T/T
Supply Ability 1 pcs/ month
Product Details
SKYLINE: IEC 60065 Stability Test Bench Bearing Capacity: 125kg,80kg,50kg
Surface Diameter: 1000mm,800mm,600mm Angle Range: 0-30 °
Standards: IEC 60065 / 1998-07 Clause 19.1, IEC 60335-1 / 1991-04 Clause 20.1, IEC 60601-1 /1988 Clause 24.1, IEC 60950 / 1991 + Amendments, Modified, Clause 4.1. 1, EN 60335-1 / 1994 And A11 / 1995 Clause 20.1,
Highlight:

sharp edge tester

,

flame test chamber
Product Description

1000mm 800mm 600mm Electronic Testing Equipment IEC60335 Stability Test Bench



Standards:



It is to determine the stability of electric appliances which are used on a table or on the floor In accordance with IEC 60065 / 1998-07 clause 19.1, IEC 60335-1 / 1991-04 clause 20.1, IEC 60601-1 /1988 clause 24.1, IEC 60950 / 1991 + Amendments, modified, clause 4.1. 1, EN 60335-1 / 1994 and A11 / 1995 clause 20.1, EN 60950 / 1992 + Amendments up to 1997 clause 4.1. 1, VDE 0700 Part 1 / 10.95 clause 20.1 and Part 3 / 3.96 clause 20.1, VDE 0730 Part 1 / 3.72 clause 20a, VDE 0805 / 11.97 clause 4.1. 1.

Applications:

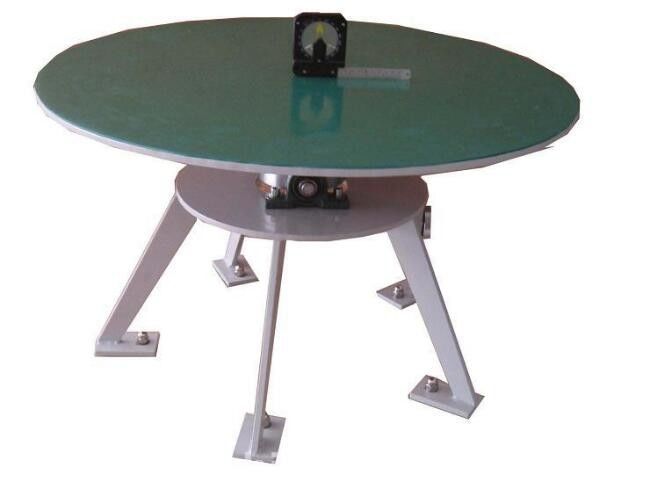

Stability Test Bench is used to test the stability of an apparatus that requires a surface in order to work. The device cosist of a surface and an angle adjusting device with 0- 15 °.


 Types  Surface Diameter  Angle Range  Bearing Capacity  Rotate Way
 3  1000mm  0-30 °  125KG  hand-actuated/dynamoelectric
 2  800mm  0-30 °  80KG  hand-actuated/dynamoelectric
 1  600mm  0-45°  50KG  hand-actuated



1000mm 800mm 600mm Electronic Testing Equipment IEC60335 Stability Test Bench
