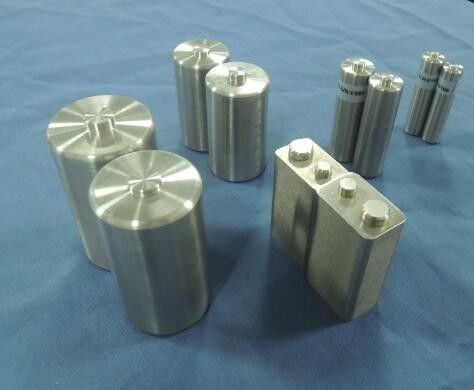

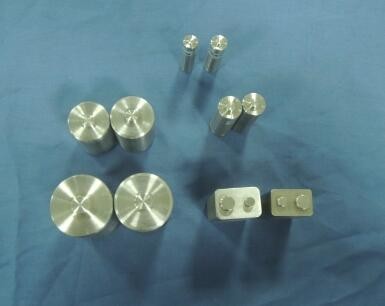

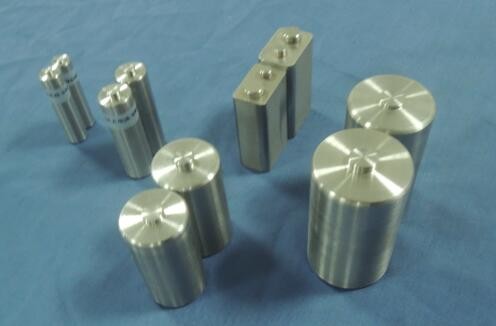

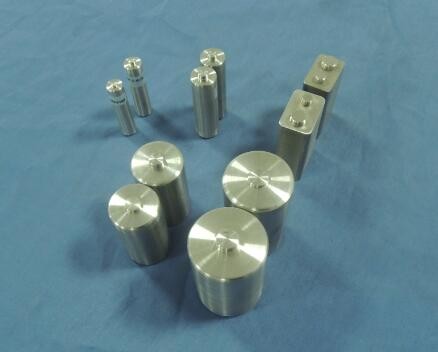

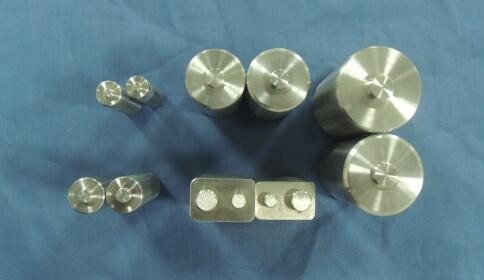

SL -S103 Electronic Testing Equipment AAA / AA / C / D / 9V Hasbro Dummy Batteries

Name: SL -S103 Electronic Testing Equipment AAA / AA / C / D / 9V Hasbro Dummy Batteries
Brand: SKYLINE
SKU: SL-S103
Rating: 4.7 (107 reviews)

Product Details

Place of Origin: China

Brand Name: SKYLINE

Certification: Calibration Certificate

Model Number: SL-S103

Payment & Shipping Terms

Minimum Order Quantity: 1 unit

Price: Negoitable

Packaging Details: plywood case

Delivery Time: 5 working days

Payment Terms: Western Union, MoneyGram, T/T

Supply Ability: 1 pcs/ month

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                sharp edge tester, flame test chamber


SKYLINE:	Hasbro Dummy Batteries	Material:	Stainless Steel
Standard:	Hasbro SRS062	Torerance:	0.05/0.001mm

SKYLINE:	Hasbro Dummy Batteries
Material:	Stainless Steel
Standard:	Hasbro SRS062
Torerance:	0.05/0.001mm

Product Description

SL -S103 Electronic Testing Equipment AAA / AA / C / D / 9V Hasbro Dummy Batteries

Minimum Dimensions

Dimension	AAA	AA	C	D	Tolerances
A	42.5	49	48.5	59.5	0.05mm/-0.00mm
B	5.16	8.25	19	19	0.05mm/-0.00mm
C	1	1.02	0.64	0.64	0.05mm/-0.00mm
D	3.81	5.5	7.5	9.5	0.00mm/-0.05mm
E	0.8	1	1.5	1.5	0.05mm/-0.00mm
F	9.5	13.5	24.7	32.2	0.05mm/-0.00mm
G	NA	NA	1.7	2.3	0.10mm/-0.00mm

Maximum Dimensions

Dimension	AAA	AA	C	D	Tolerances
A	44.5	50.5	50	61.5	0.00mm/-0.05mm
B	5.25	8.25	19	19	0.05mm/-0.00mm
C	0.66	1.02	0.64	0.64	0.05mm/-0.00mm
D	3.81	5.5	7.5	9.5	0.00mm/-0.05mm
E	1.79	2.25	3.02	3.23	0.00mm/-0.05mm
F	10.5	14.5	26.2	34.2	0.00mm/-0.05mm
G	NA	NA	1.7	2.3	0.10mm/-0.00mm

9V Min/Max Dimensions

Dimension	Maximum	Tolerances	Minimum	Tolerances
A	17.5	0.00mm/-0.05mm	15.5	0.05mm/-0.00mm
B	49.2	0.00mm/-0.05mm	46.5	0.05mm/-0.00mm
C	45.77	0.00mm/-0.05mm	43.3	0.05mm/-0.00mm
D	26.5	0.00mm/-0.05mm	24.6	0.05mm/-0.00mm
E	12.95	0.00mm/-0.05mm	12.45	0.05mm/-0.00mm
